Page 235

HAPTER

| Monitoring the Switch

Displaying Information About Security Settings

– 235 –

■

IPv4: ACE will match all IPv4 frames.

■

IPv4/ICMP: ACE will match IPv4 frames with ICMP protocol.

■

IPv4/UDP: ACE will match IPv4 frames with UDP protocol.

■

IPv4/TCP: ACE will match IPv4 frames with TCP protocol.

■

IPv4/Other: ACE will match IPv4 frames, which are not ICMP/UDP

or TCP.

◆

Action – Indicates the forwarding action of the ACE:

■

Permit: Frames matching the ACE may be forwarded and learned.

■

Deny: Frames matching the ACE are dropped.

◆

Rate Limiter – Indicates the rate limiter number implemented by the

ACE. The allowed range is 1 to 15.

◆

Port Redirect – Indicates the port redirect operation implemented by

the ACE. Frames matching the ACE are redirected to the listed port.

◆

Mirror - Indicates the port mirror operation implemented by the ACL.

Frames matching the ACE are mirrored to the listed port. (See

◆

CPU – Forwards packet that matched the specific ACE to the CPU.

◆

CPU Once – Forwards first packet that matched the specific ACE to the

CPU.

◆

Counter – The number of times the ACE was matched by a frame.

◆

Conflict – This field shows “Yes” if a specific ACE is not applied due to

hardware limitations.

NTERFACE

To display ACL status:

Click Monitor, Security, Network, ACL Status.

Select a software module from the scroll-down list.

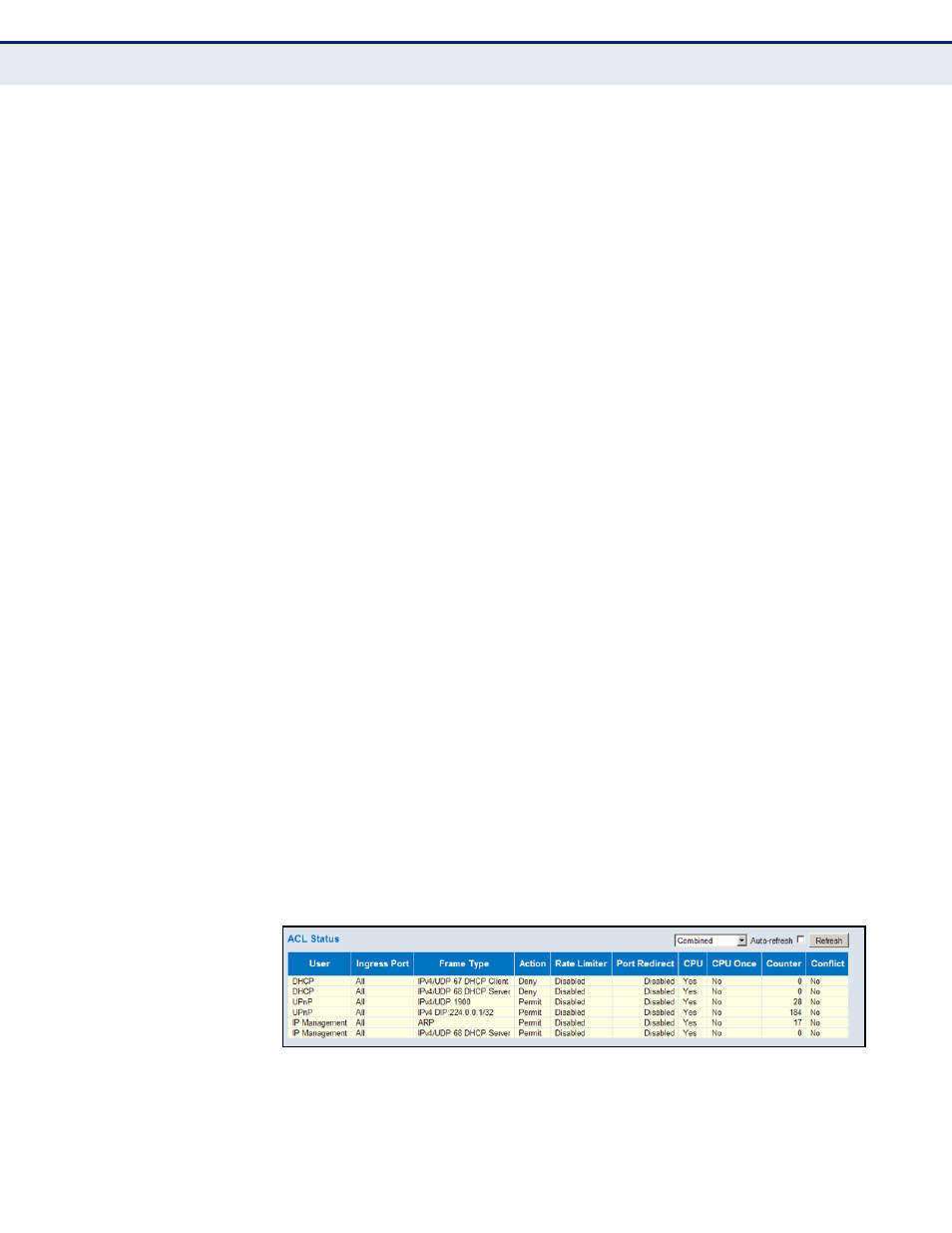

Figure 110: ACL Status
