C HAPTER 5 | Monitoring the Switch
Displaying Information on the Spanning Tree
– 254 –

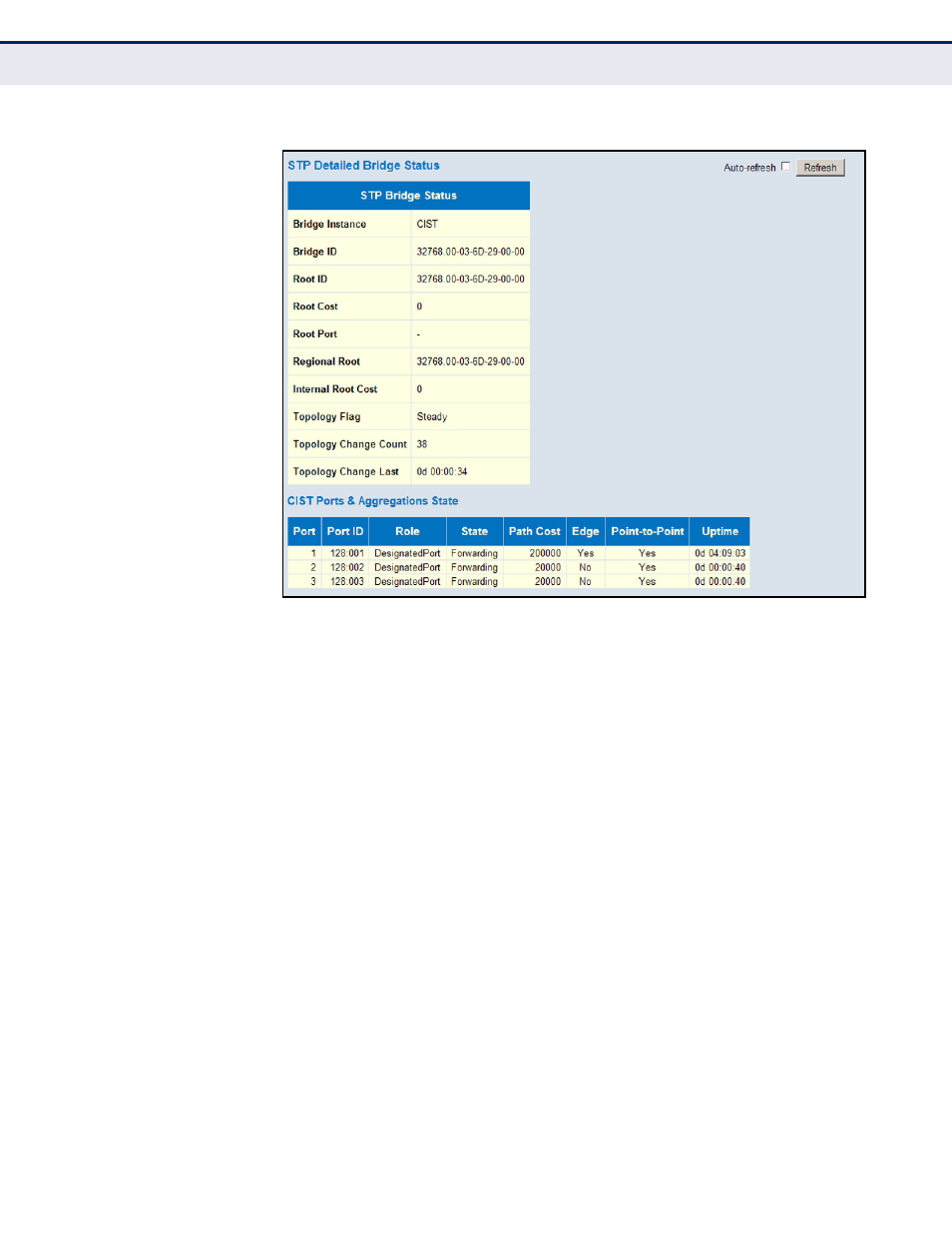

Figure 125: Spanning Tree Detailed Bridge Status
D ISPLAYING P ORT
S TATUS FOR STA
Use the Port Status page to display the STA functional status of
participating ports.
P ATH
Monitor, Spanning Tree, Port Status
P ARAMETERS
These parameters are displayed:
◆ Port – Port Identifier.
◆ CIST Role – Roles are assigned according to whether the port is part of
the active topology connecting the bridge to the root bridge (i.e., root
port), connecting a LAN through the bridge to the root bridge (i.e.,
designated port); or is an alternate or backup port that may provide
connectivity if other bridges, bridge ports, or LANs fail or are removed.
◆ CIST State – Displays current state of this port within the Spanning
Tree:
■
Blocking – Port receives STA configuration messages, but does not
forward packets.
■
Learning – Port has transmitted configuration messages for an
interval set by the Forward Delay parameter without receiving
contradictory information. Port address table is cleared, and the
port begins learning addresses.
