Displaying MVR Information
– 258 –
W EB I NTERFACE
To display information for MVR statistics and multicast groups, click
Monitor, MVR, Group Information.

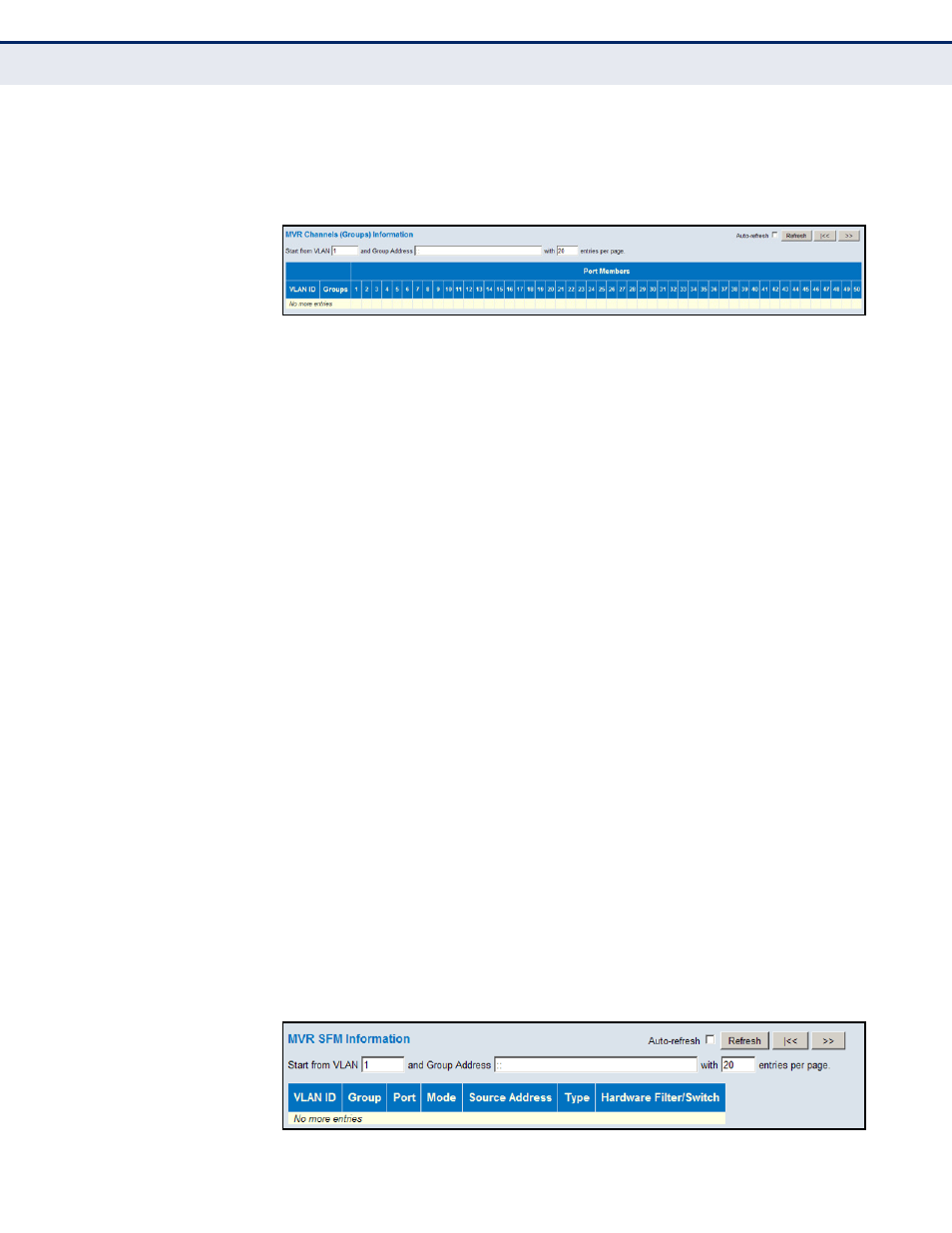

Figure 129: MVR Group Information
D ISPLAYING MVR
SFM I NFORMATION
Use the MVR SFM Information page to display MVR Source-Filtered
Multicast information including group, filtering mode (include or exclude),
source address, and type (allow or deny).
P ATH
Monitor, MVR, MVR SFM Information
P ARAMETERS
These parameters are displayed:
◆ VLAN ID – VLAN identifier.
◆ Group – The IP address of a multicast group detected on this interface.
◆ Port – Port identifier.
◆ Mode – The filtering mode maintained per VLAN ID, port number, and
Group Address. It can be either Include or Exclude.
◆ Source Address – IP Address of the source. The maximum number of
IP source addresses available for filtering is 128. When there is no
source filtering address, “None” is shown in this field.
◆ Type – Indicates the Type, either Allow or Deny.
◆ Hardware Filter/Switch – Indicates whether the data plane destined
to the specific group address from the source IPv4 address can be
handled by the chip or not.
W EB I NTERFACE
To display MVR Source-Filtered Multicast Information, click Monitor, MVR,
MVR SFM Information.
Figure 130: MVR SFM Information
