Page 256: Mvr i
C
HAPTER
5
| Monitoring the Switch
Displaying MVR Information
– 256 –
W
EB
I
NTERFACE
To display information on spanning port statistics, click Monitor, Spanning
Tree, Port Statistics.

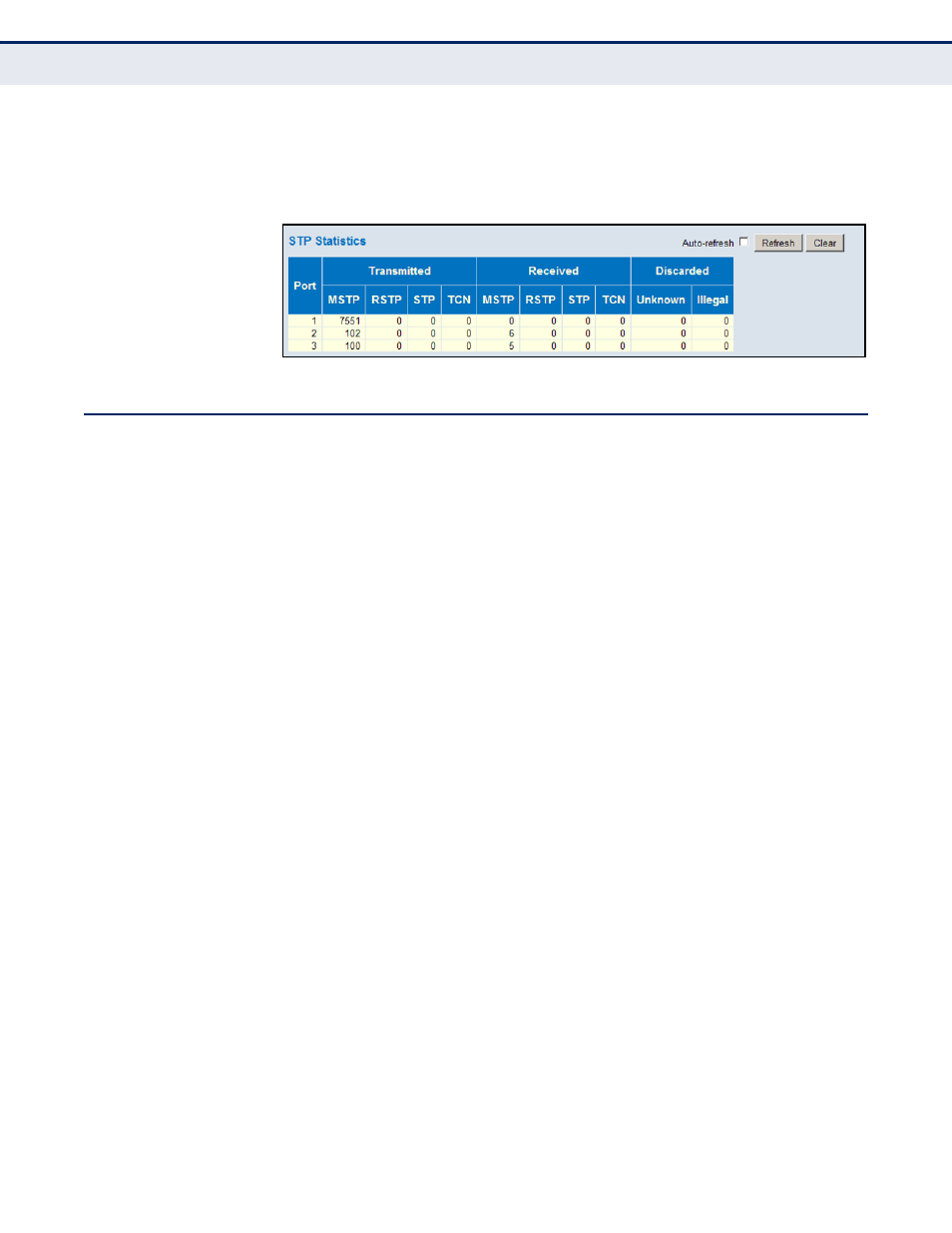

Figure 127: Spanning Tree Port Statistics
D
ISPLAYING
MVR I
NFORMATION
Use the monitor pages for MVR to display information on MVR statistics and
active multicast groups.
D
ISPLAYING
MVR
S
TATISTICS
Use the MVR Statistics page to display statistics for IGMP protocol
messages used by MVR.
P
ATH
Monitor, MVR, Statistics
P
ARAMETERS
These parameters are displayed:
◆
VLAN ID – Identifier of the VLAN that serves as the channel for
streaming multicast services using MVR.
◆
IGMP/MLD Queries Received – Number of received queries for IGMP
and MLD, respectively.
◆
IGMP/MLD Queries Transmitted – Number of transmitted queries
for IGMP and MLD, respectively.
◆
IGMPv1 Joins Received – Number of received IGMPv1 Joins.
◆
IGMPv2/MLDv1 Reports Received – Number of received IGMPv2
Joins and MLDv1 Reports, respectively.
◆
IGMPv3/MLDv2 Reports Received – Number of received IGMPv1
Joins and MLDv2 Reports, respectively.
◆
IGMPv2/MLDv1 Leaves Received – Number of received IGMPv2
Leaves and MLDv1 Dones, respectively.
