Configuring QoS Egress Port Scheduler, Queue Scheduler and Port Shapers
This configuration page can be access from the Port Scheduler or Port
Shaper page. Refer to the description of these parameters under
"Configuring Egress Port Scheduler" .
W EB I NTERFACE
To show an overview of the rate for each queue and port:
1. Click Advanced Configuration, QoS, Port Shaper.
2. Click on any enter under the Port field to configure the Port Scheduler
and Shaper.

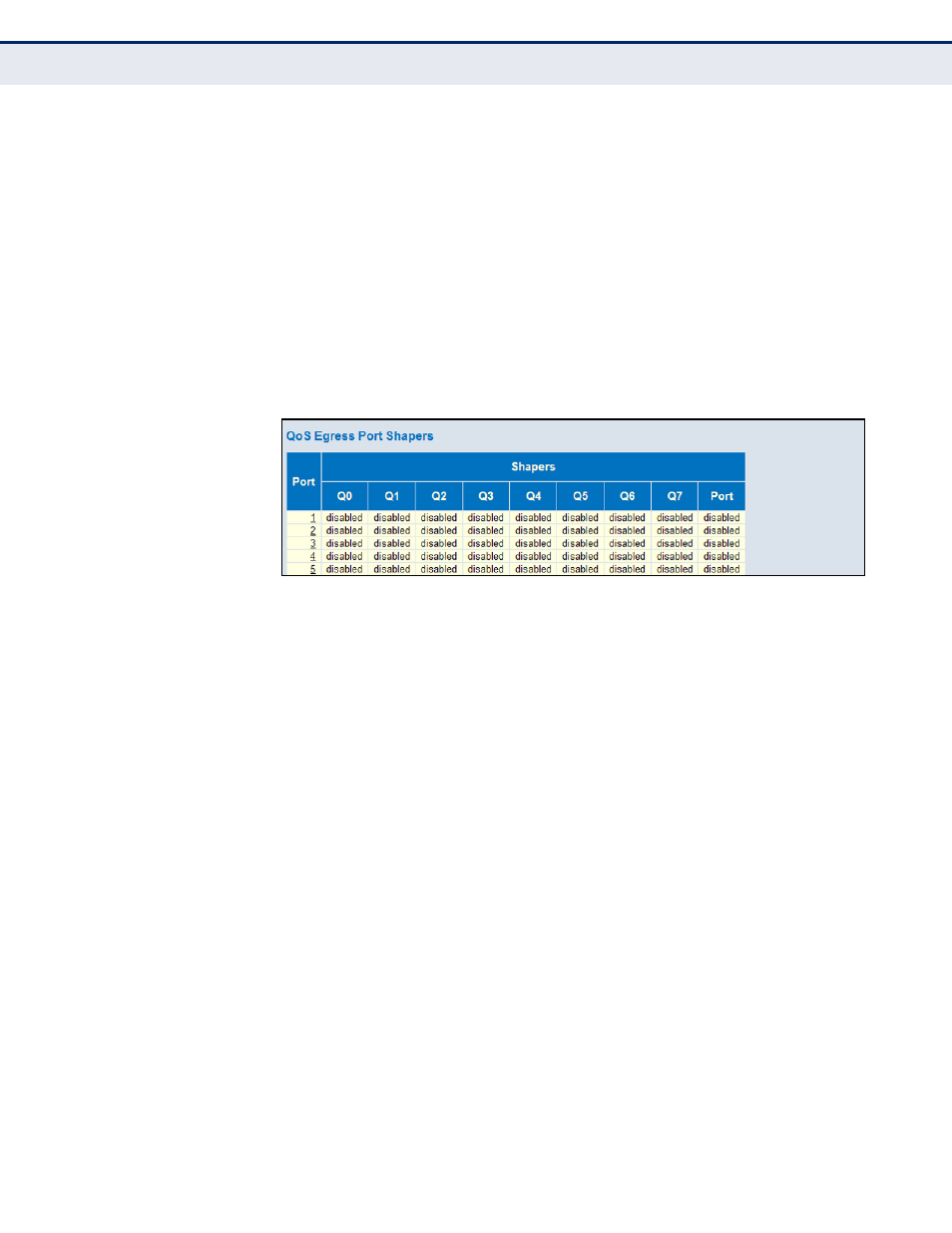

Figure 77: Displaying Egress Port Shapers
C ONFIGURING P ORT
R EMARKING M ODE
Use the QoS Egress Port Tag Remarking page to show an overview of QoS
Egress Port Tag Remarking mode. Click on any of the entries in the Port
field to configure the remarking mode using classified PCP/DEI values,
default PCP/DEI values, or mapped versions of QoS class and drop priority.
P ATH
Advanced Configuration, QoS, Port Tag Remarking
P ARAMETERS
These parameters are displayed:
Displaying Port Remarking Mode
◆ Port – Port identifier.
◆ Mode – Shows the tag remarking mode used by this port:
■
Classified – Uses classified PCP (Priority Code Point or User
Priority) and DEI (Drop Eligible Indicator) values.
■
Default – Uses default PCP/DEI values.
■
Mapped – Uses mapped versions of QoS class and drop precedence
level.
