Alarm Overview Window

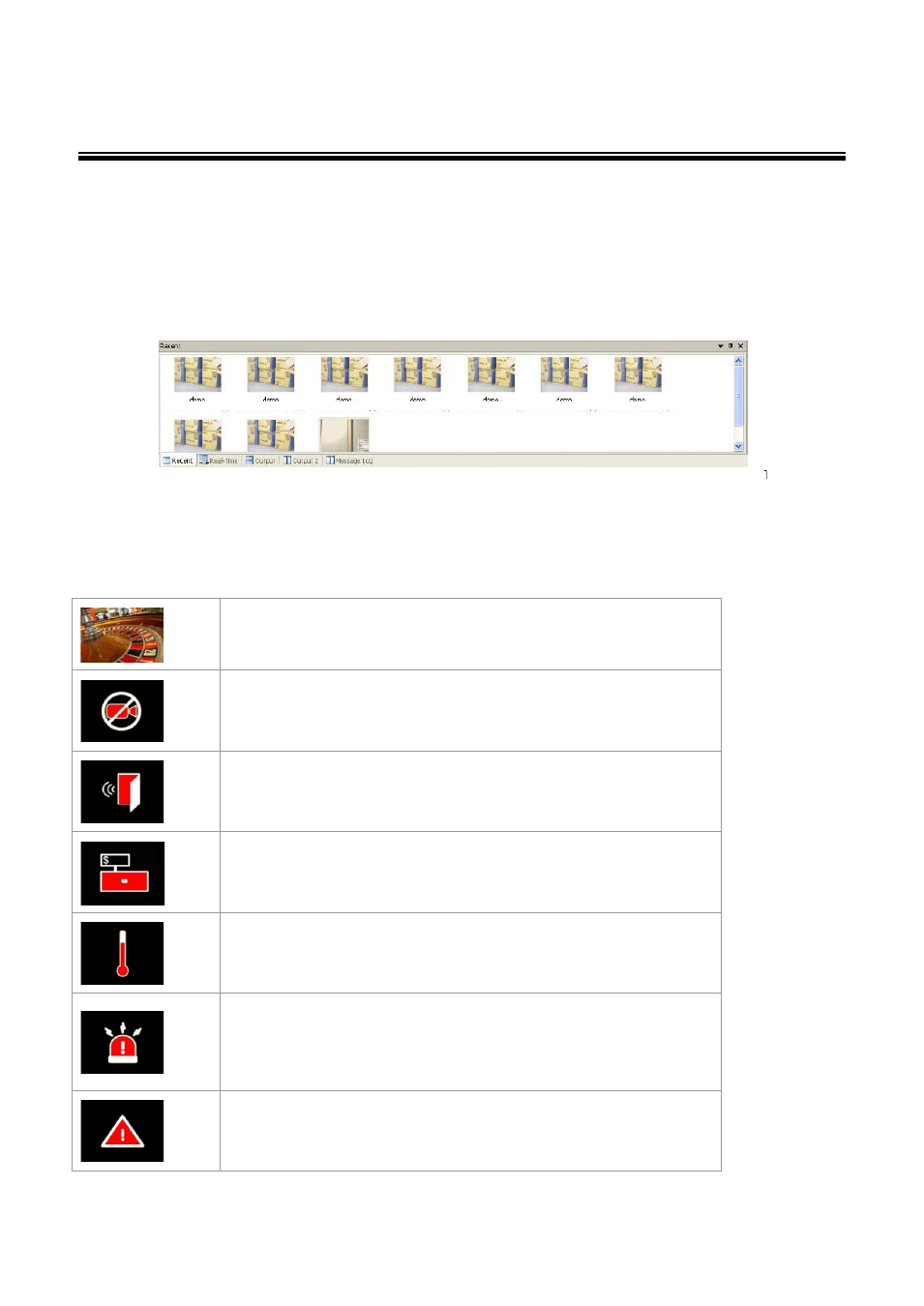

The Alarm Overview window shows recent alarm events in various formats, and is also used to show alarm query results
and log messages. For any alarm displayed in this window, an Alarm Detail window can be opened. This enables easy
management of alarms. There are five tabs in the window: Recent, Real Time, Message Log, Output and Output2. The
first three tabs show recent real-time alarm information, and the remaining two tabs show query and search results. The
function and use of these tabs is described below.
Recent Tab
The Recent tab gives a display of recent alarm events in icon format. When the alarm event is triggered by a camera, the
icon normally shows a snapshot of the video feed from that camera at the time the alarm was triggered. However, when the
camera signal is lost or the user does not have authority to view snapshots from that camera, or when the event is triggered
by another device, other icons are displayed. The various icons and their meanings are shown below.
Event Message Snapshot for Camera Events, including General Motion,
Foreign Object, Missing Object, Focus Loss, Camera Occlusion
Event Message Picture for Camera Event of Signal Lost.
Event Message Picture for I/O Event of Digital Input Triggered.
Event Message Picture for Metadata Event without an associated camera or
no authorization to view video.
Event Message Picture for Server System Abnormal Events, including Disk
Space Exhausted, System Health Unusual and Source Server Disconnect.
Event Message Picture for Server System Operational Events, including
Start/Modify/Stop Smart Guard, Schedule, Live Streaming Server, Remote
Playback Server, Start/Stop Manual Record, Modify Confiquration,
Enable/Disable Channels, Lock/Unlock System.
Event Message Picture for Device Authority Deficiency; The user does not
have the authority to view the snapshot of that device.
To control the number and size of icons, see page 68.
