Wire Harness / Valve Mounting 2 WD & 4 WD
Installing Wire Harness
To Valve:
(Continued)
5. Wire Harness Terminal Identification. The
Wire Harness Terminal Plugs are marked in writ-
ing on the plug. Swing, Lift, Dipper, Tilt and Door
terminal plugs (5 Total). The Valve terminals are in
this same order starting at the bottom and coming
up on the valve. You will need to have a short
handle Phillips screwdriver for this. (See Figure
26).
6. Wire Harness Terminal Installation. You
will need to feed wire harness under the fitting
across tank (See Figure 24) lay the Plugs out in the
Order they are to be installed starting at the bottom
terminal.
7. Terminal Connections. Make sure that each
terminal Plug on Valve has had the Gasket in-
stalled on it, then Install Swing Terminal and tighten
Plug Retaining Screw. Continue this with all 5
plugs starting at the bottom and coming up (See
Figure25)
PLUG
FUNCTION
1 Bottom Plug Swing Terminal
2 2 nd Plug Up Lift Terminal
3 3 rd Plug Up Dipper Terminal
4 4 th Plug Up Tilt Terminal
5 Top Plug Door Terminal
Connect and tighten all 5 terminal plugs one at a
time till all 5 are connected. (See Figure 26)

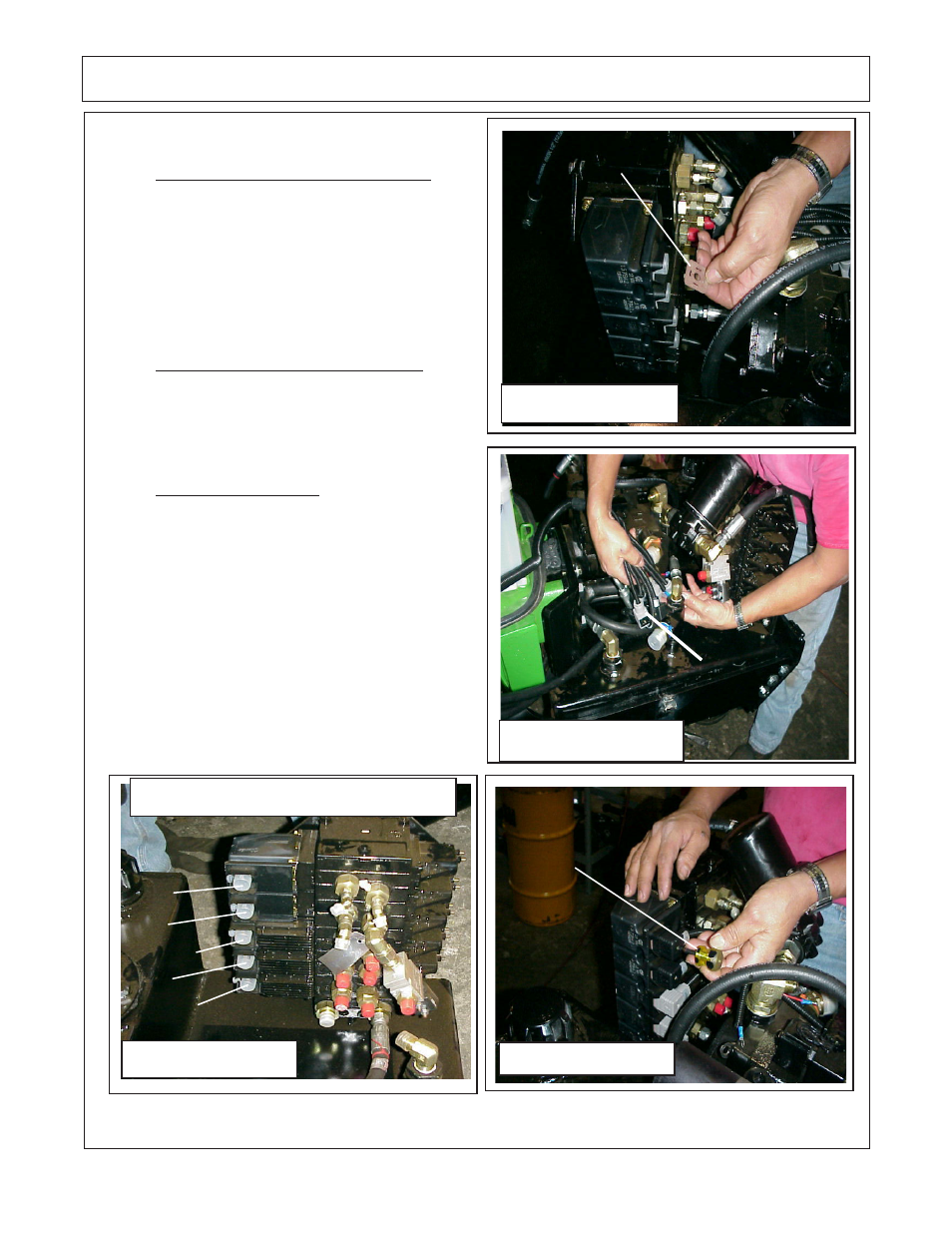

FIGURE 23
Plug Gaskets
FIGURE 24
Terminal
Plugs
FIGURE 26
Short Handle
Phillips
Screwdriver
Swing
Lift
Dipper
Tilt
Door
FIGURE 25
Photo without Pump & Hoses
shown for illustration only
