Install Front frame Rail Supports:

1

.

Remove Bolts from Tractor Frame

Rails. Find the front most 4 Bolts in the Tractor
Frame Rail, There are 4 on the RH side and 4 on
the LH Side. DO NOT REMOVE THE BOLTS
FROM BOTH SIDES AT THE SAME TIME,
ONLY do one side at a time the RH or the LH.
For illustration start with the RH Side (See
Figure 17).
The RH & LH Frame Rail Supports
have a Right and a Left. They will not inter-
change and must be mounted on the correct
side. Notice the way they are built, the Plate part
that bolts to Tractor is longer in the front on both
LH & RH. Make sure the longest part is to the
front (See Figure 18).

2.

Install Frame Rail Support RH Side.

This works best with a 2 man team. The RH
Frame Rail Support the is held on with the 5
bolts that Bolts that are supplied w/ mounting
kit. Start all 5 bolts with Lockwasher before any
of the 4 are tightened (See Figure 18). When
tightened down it will look like the picture in
Figure 18. Tighten the four retaining bolts for the
RH Frame Rail Support before lossening or
removeing the bolts on the LH side.

3.

Install Frame Rail Support LH Side. Make

sure that the bolts on the RH side have been
tightened before removing the four bolts on the
LH side. The LH Frame Rail Support will install
the same as the RH side did. Remove the 4
bolts; Install the Front Frame Rail Support.
Tighten the 4 bolts through Tractor Frame Rail.
(See Figure 19).

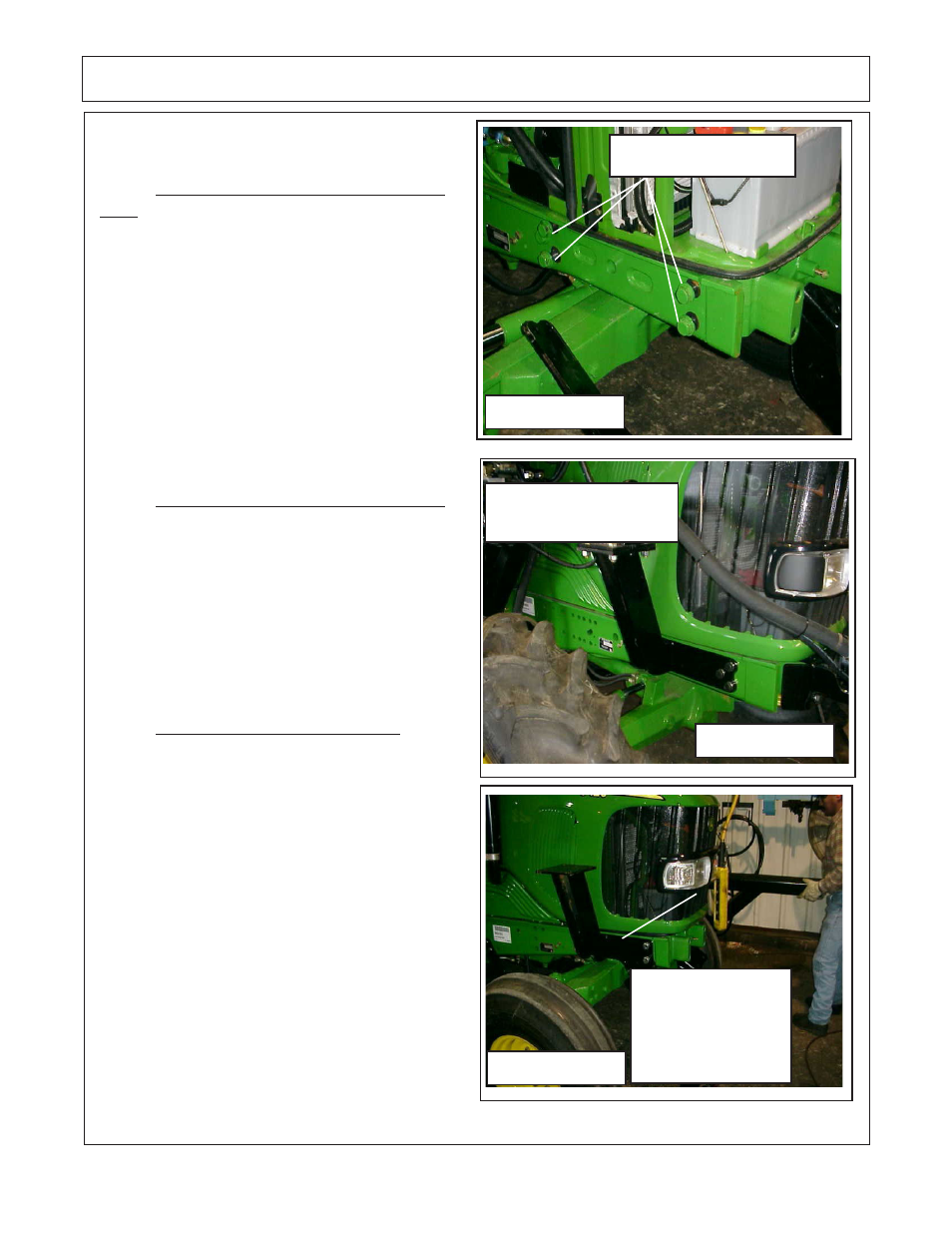

Figure 17

Tractor Frame Rail

Bolts(5)

RH Frame

Rail Support

RH Tank

Mount Bracket

Figure 19

Mounting Plates on

Front Frame Rail

Support, the longer

part toward front on

RH and LH side

Pump / Drive Assembly Instructions

Right Hand Frame rail

Support Shown

Figure 18
