Section 4 - 5
A-Boom(JD 6615/ 7615 Asy Instruction Manual) 07/03
Frame Rail Installation
Frame Rail Pre-Assembly: (continued)
High Frame Mounting Tube Components. (See Figure 3 & 4) These Components are to be laid
out and will be tack welded to frame Rails and High frame during Pre-Assembly Process. Locate and
ID these Parts for later installation. Remember DO NOT Weld any components untill instructed to do
so.
Item Part No. Qty Description
1 ---Ref----- 2 Mounting Tubes, (Length will Vary with Mount Kit).
02918600 4 Bolt, 3/4" X 2" Long (Not Shown)
00037200 4 Locknut, 3/4" Toplock (Not Shown
2 02966639 7 Bar Mounting Strap
2A 02966639 1 Bar Mounting Strap (Cut In Half)
3 00037200 8 Locknut, Toplock
4 02957039 8 Bolt, 3/4" X 10-1/2" Long
5 02966641 2 Angle Mount
3
4
1
2
RH Frame Rail
Front Shown
Machete High
Frame
Frame Rail
(to Rear Axle)
1
5
2
2A
Cut Off
6-3/4"
2A

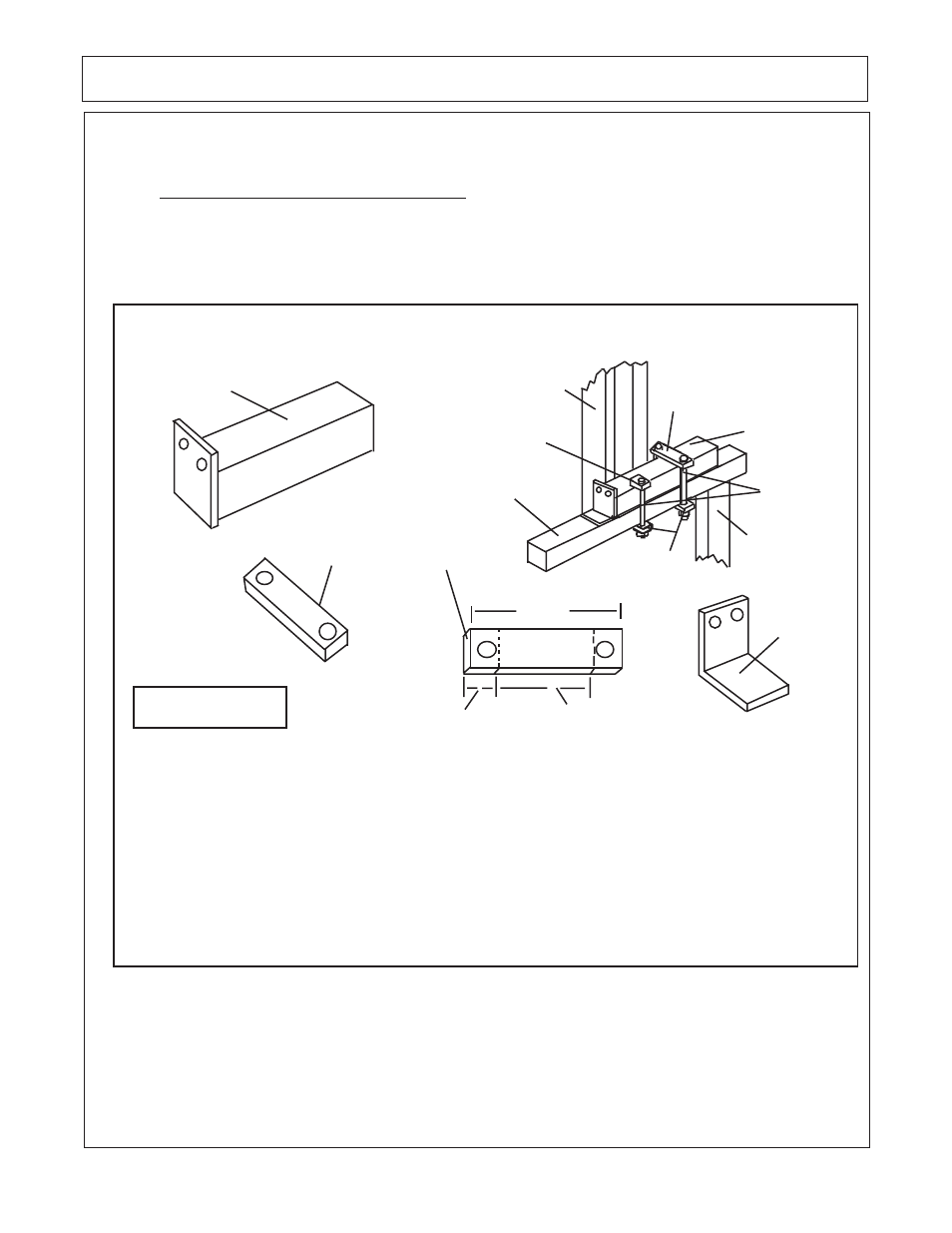

High Frame Mounting Tube Componnets
Figure 3
Width of Frame
Rail Tube
