Frame Rail Installation
Re-Install Frame Rails to Tractor:
1. Re-Install Frame Rails. With the Welding
done touch up or re-paint frame rails before re-
installing them. The RH and the LH Rail will install
to the Tractor the same except for the Boom rest
that installs on the RH Rail Rear Mount. It is best to
do the Left Hand Frame Rail first then the RH Rail.
Use a Hoist to install Frame rails to Tractor. (See
Figure 1).
2. Install the Bolts into the rear Axle Housing to
support the rear of the frame rails. This is the same
for LH & RH. Snug the Bolts only. Do not tighten
them yet because the frame rails will have to be
moved around to align all the Bolt Holes. (See
Figure 56). The RH rear Frame Rail Mounting will
need the Bolts removed to install the Axle Mounted
Boom Rest (See figure 5, 6 & 7).
3. Install the Bolts into the front mounting
Plates on the LH and RH Side. Snug them only.
(See Figure 3).
4. Install the LH Axle Straps. The LH
Axle Strap can be installed now (See Figure 4).
The Left Hand Axle Strap uses two long Bolts with
Nuts. The Bolts go down through the Holes in the
rear Axle Mounting Plate that is welded to the rear
of the frame rail. Once the Rear Axle Strap is
installed the Bolts for the LH Frame Rail and Axle
Strap, snug the Bolts only, do not tightened them
down (See Figure 1, 2, 3 & 4).

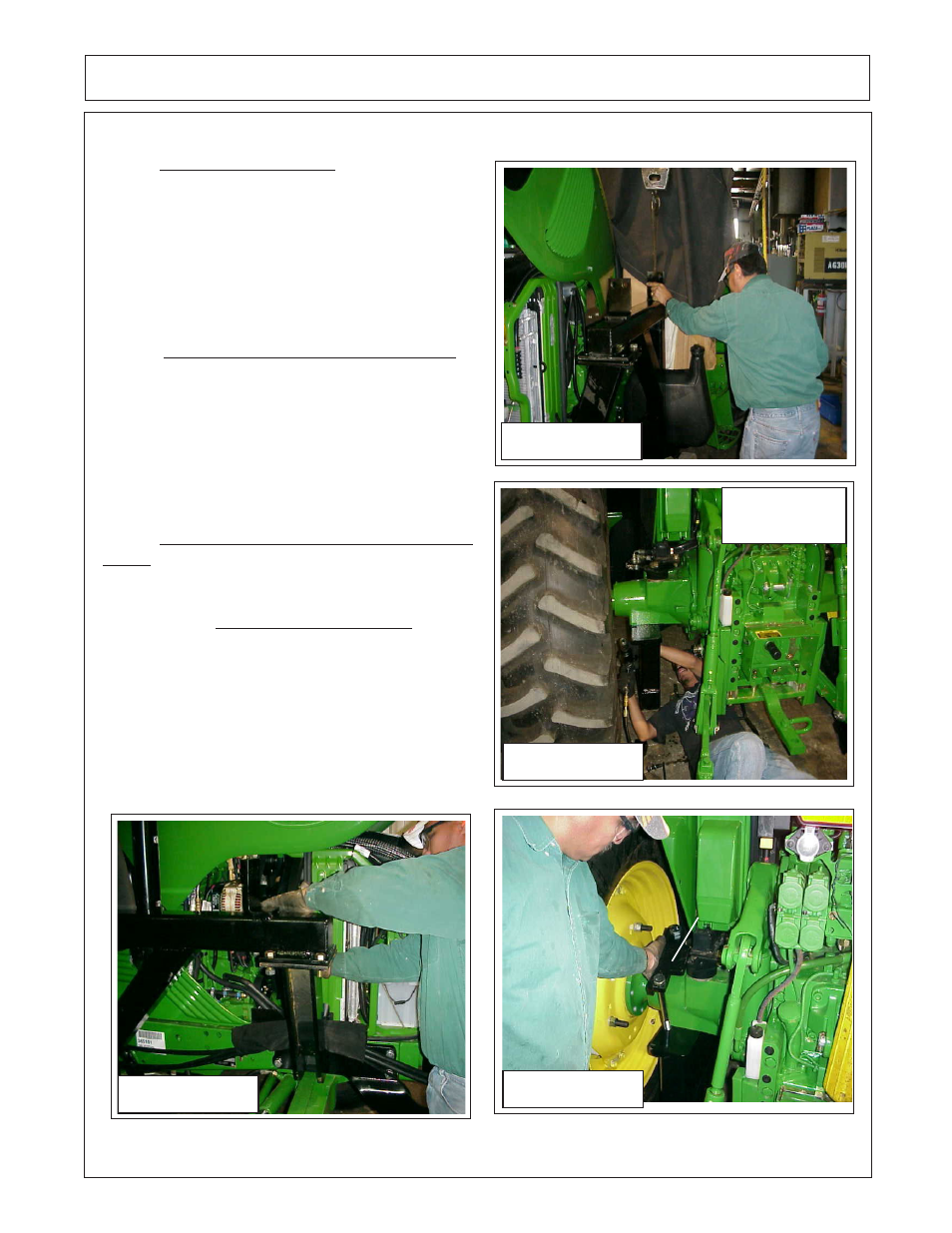

Figure 1
Figure 2
Frame Rail
Mounting
Figure 3
Front Mounting
Pads
Figure 4
Rear Axle
Strap
Mounting to
Rear Axle
