A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

© 2003

Alamo Group Inc.

Section 9 - 2

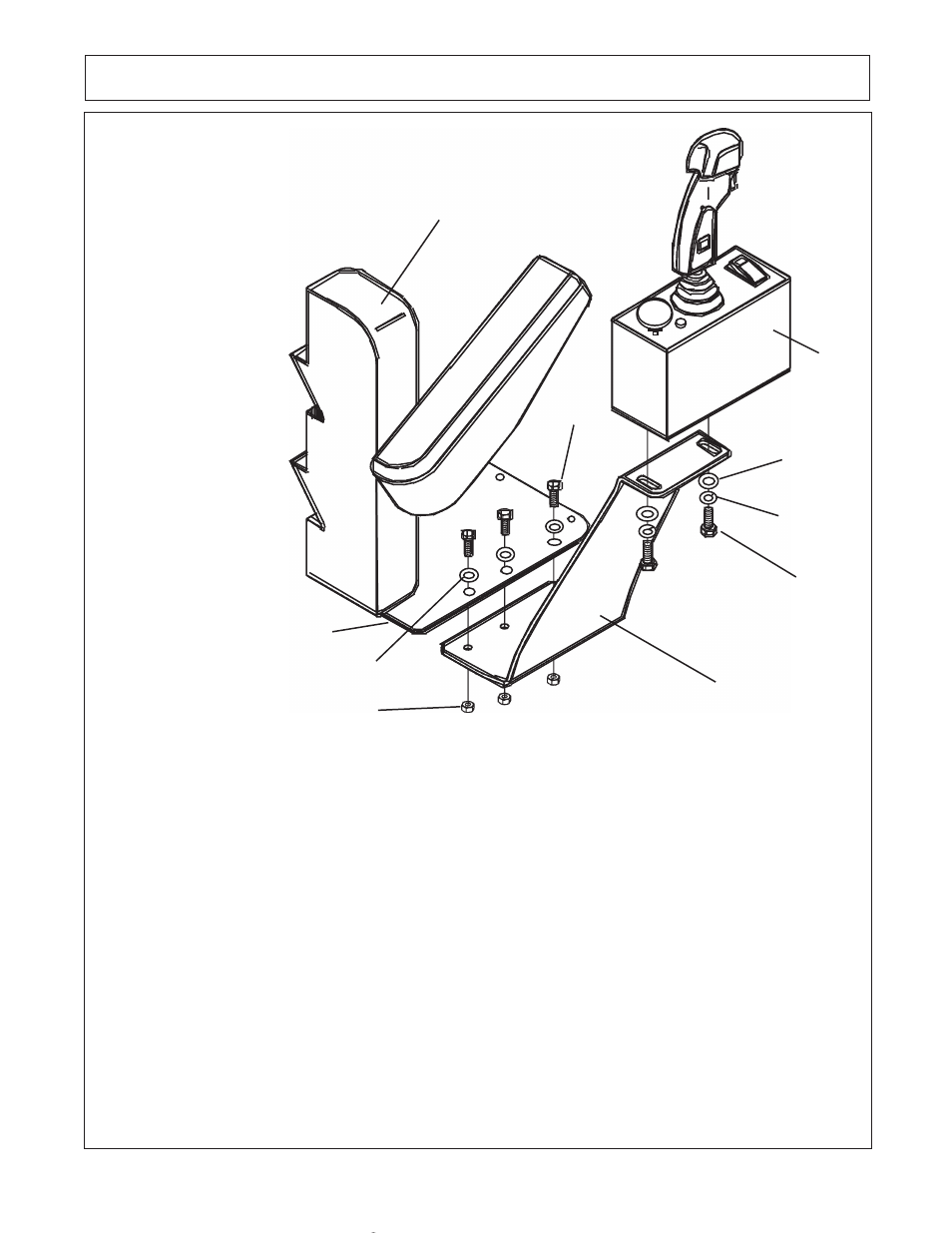

Optional Joystick Mounting

Item

Part No.

Qty

Description

1

00011100

2

Flatwasher, 3/8"

2

00012101

2

Lockwasher, 3/8"

3

00011400

2

Bolt, 3/8" NC X 1"

4

00750940

3

Locknut, 5/16" Toplock

5

00023500

3

Flatwasher, 5/16"

6

10119000

3

Bolt, 5/16" NC X 1"

7

02978806

1

Bracket, Seat Mounted Joystick

8

-------------

1

Joystick (Shown as Illustration Only)

9

-------------

--

Tractor Seat

1

2

3

4

5

6

7

8

9

Tractor Seat with Seat

Cushion Removed

Three Existing Holes

FIGURE 1
