Section 4 - 19

A-Boom(JD 6615/ 7615 Asy Instruction Manual) 07/03

Frame Rail Installation

Tack Welding Frame Rails:

(continued)

Tack Weld Front and Rear Angle

Mounts. The Angle Mounts should be tack
Welded to the Frame Rails in 4 places each.
This works best by weld a tack Weld in each
corner of Angle Mount. (See Figure 40 &
41). All 4 of the Angle Mounts must be Tack
Welded to frame rail now.

Tack Weld Mounting Tubes to High

Frame. The Mounting tubes will be Tack
Welded to the High Frame in 3 places on top
and 3 places on the bottom, on both LH & RH
Side (See Figure 42 & 43). These Tack
Welds need to be done in an alternating
pattern so Mounting Tubes do not Lift or
move. There should not be any gaps be-
tween Frame Rails, High Frame or Mounting
Tubes. Do this on LH and RH Frames.

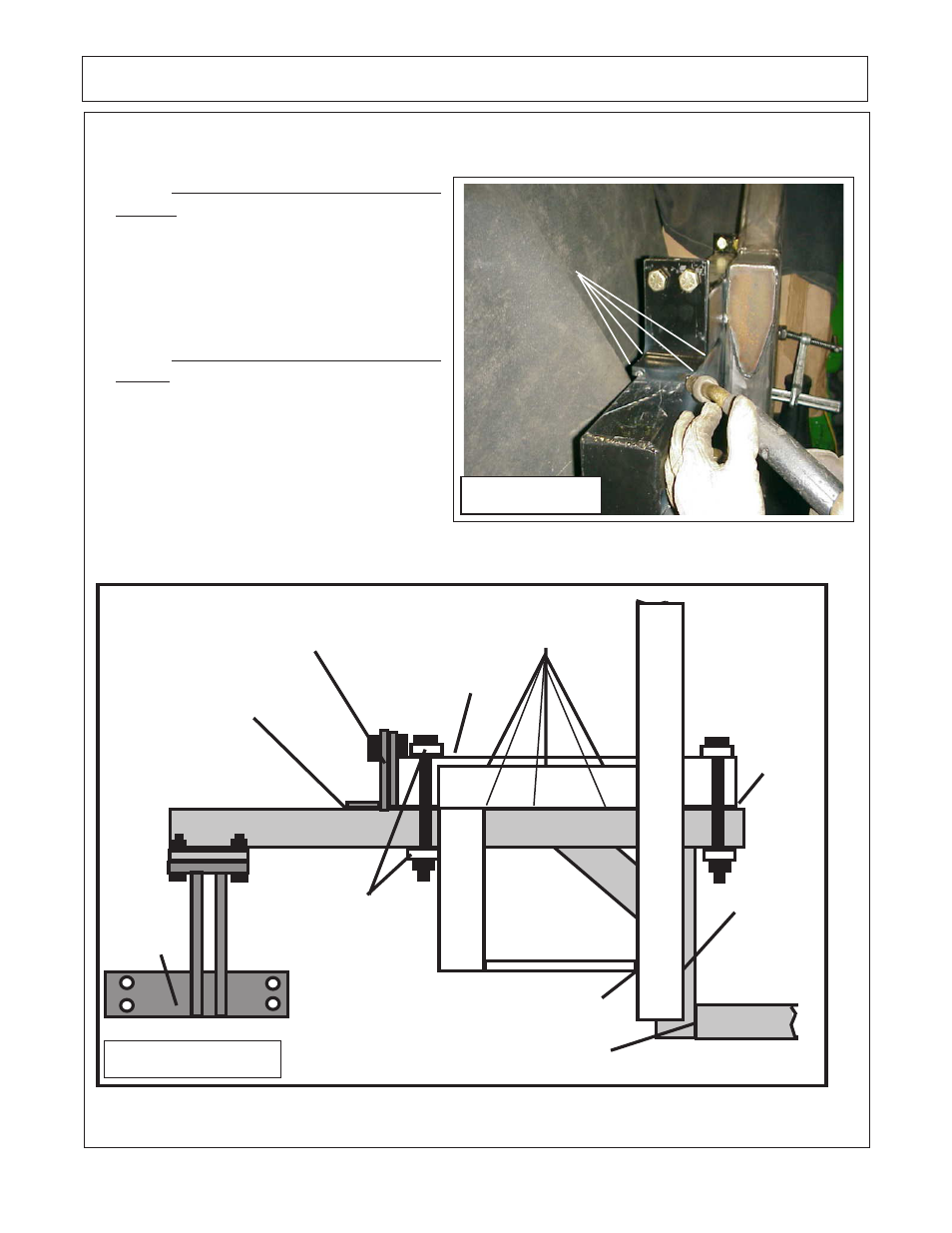

Figure 40

123456789

12345678901234567890123456

12345678901234567890123456789012123456789012345678901234567890121

1234567890123456789012345678901212

1234567

123456

Tack Weld Here

to Frame Rail

Tack Weld Mounting Tube Here

in 6 places 3 top & 3 bottom

Machete High Frame

Frame

Rail

Machete High Frame

Front

Support

Mount

Mounting Angle

w/ Bolts & Nuts

Mounting Tube

Bar Mounting Straps

with Bolts & Nuts

Set High

Frame in

Line with

Frame Rail

Approx 1/2

from end

Figure 41

Tack Weld in 4

Corners of Angle

Mounts

123456

1234567

123456789
