A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

Alamo Group Inc.

Section 4 - 16

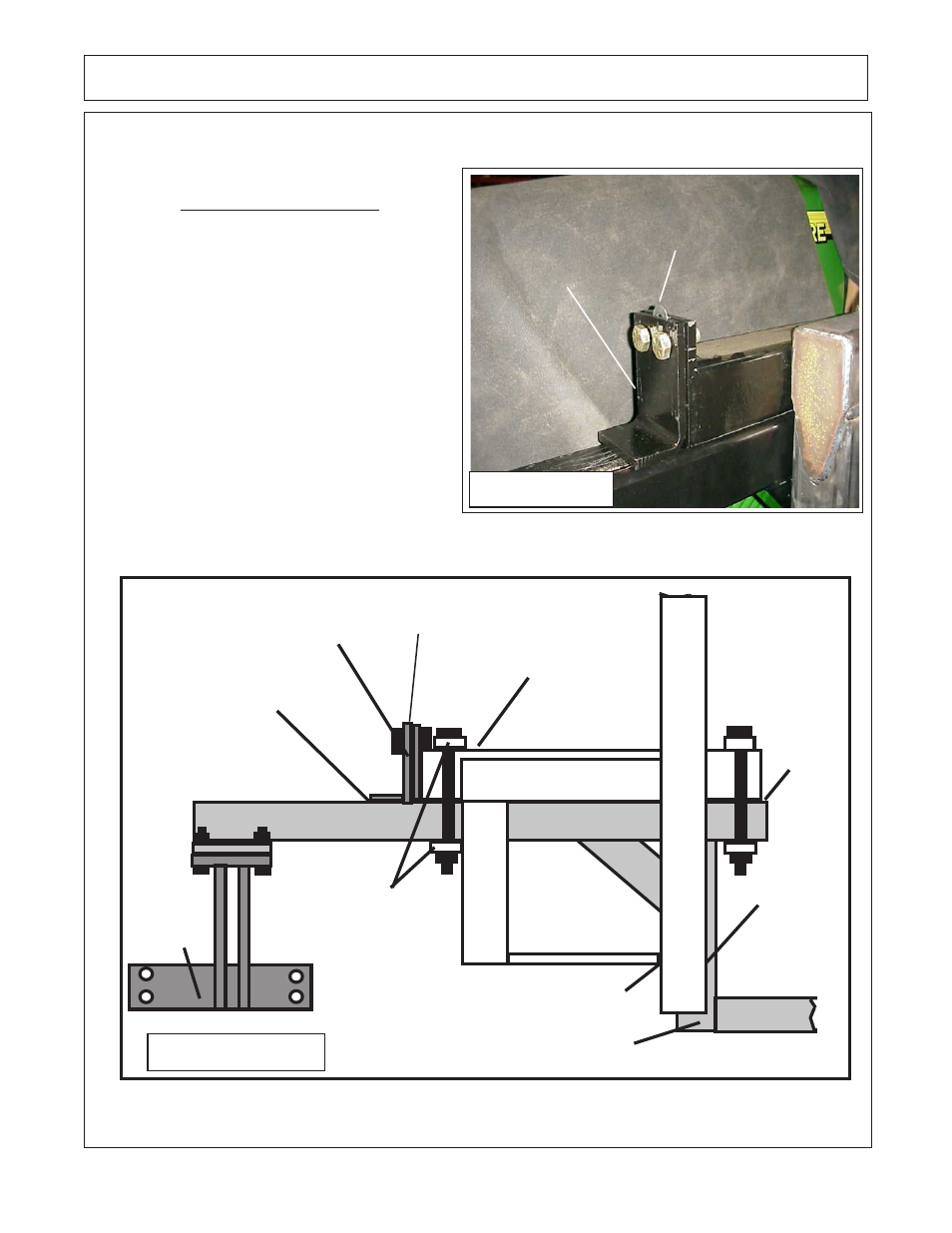

Frame Rail Installation

10.

Install Front Angle Mount. Loosely

bolt the Front Angle Mount on the other end
(front) of each Mounting Tube (See Figure
33). Notice the washer that is installed be-
tween the Angle Mount and Mount Tube, This
is there because about a 1/16" Gap is needed
between the Mount Tube Plate and the Angle
Mount Plate. Putting this 1/8" thick washer on
the front Angle Mount end only will allow for
this Gap on both ends. (See Figure 33 & 34)
This should be done on right hand and left
hand side Mounting Tube. This Gap allows
the High Frame with the Mounting Tubes
welded onto it, to be lowered down between
the front and rear Angle Mount, which will be
welded to the Frame rails later. Do not do any
tack welding till instructed to.

Pre-Install Mounting Tubes for High Frame:

(continued)

Figure 33

Washer 1/8" thich inserted

between Plates on Front

Angle Mount end Only

Angle Mount

12345678

12345678901234567890123456

123456789012345678901234567890121234567890123456789012345678901212

1234567890123456789012345678901212

123456

Frame Rail

Approx. 1/2"

from end

Frame

Rail

Machete High Frame

Front

Support

Mount

Mounting Angle

w/ Bolts & Nuts

Mounting Tube

Bar Mounting Straps

with Bolts & Nuts

Set High

Frame in

Line with

Frame Rail

Figure 34

Put a Spacer

Washer Here

123456789

123456
