Section 4 - 7
A-Boom(JD 6615/ 7615 Asy Instruction Manual) 07/03
High Frame Installation
NOTE: 2 Wheel Drive High
Frame and 4 Wheel Drive
Frame looks the same ex-
cept King Post and Bracing
is higher up. The 2 Wheel
Drive and the 4 Wheel Drive
High Frames will not inter-
change.

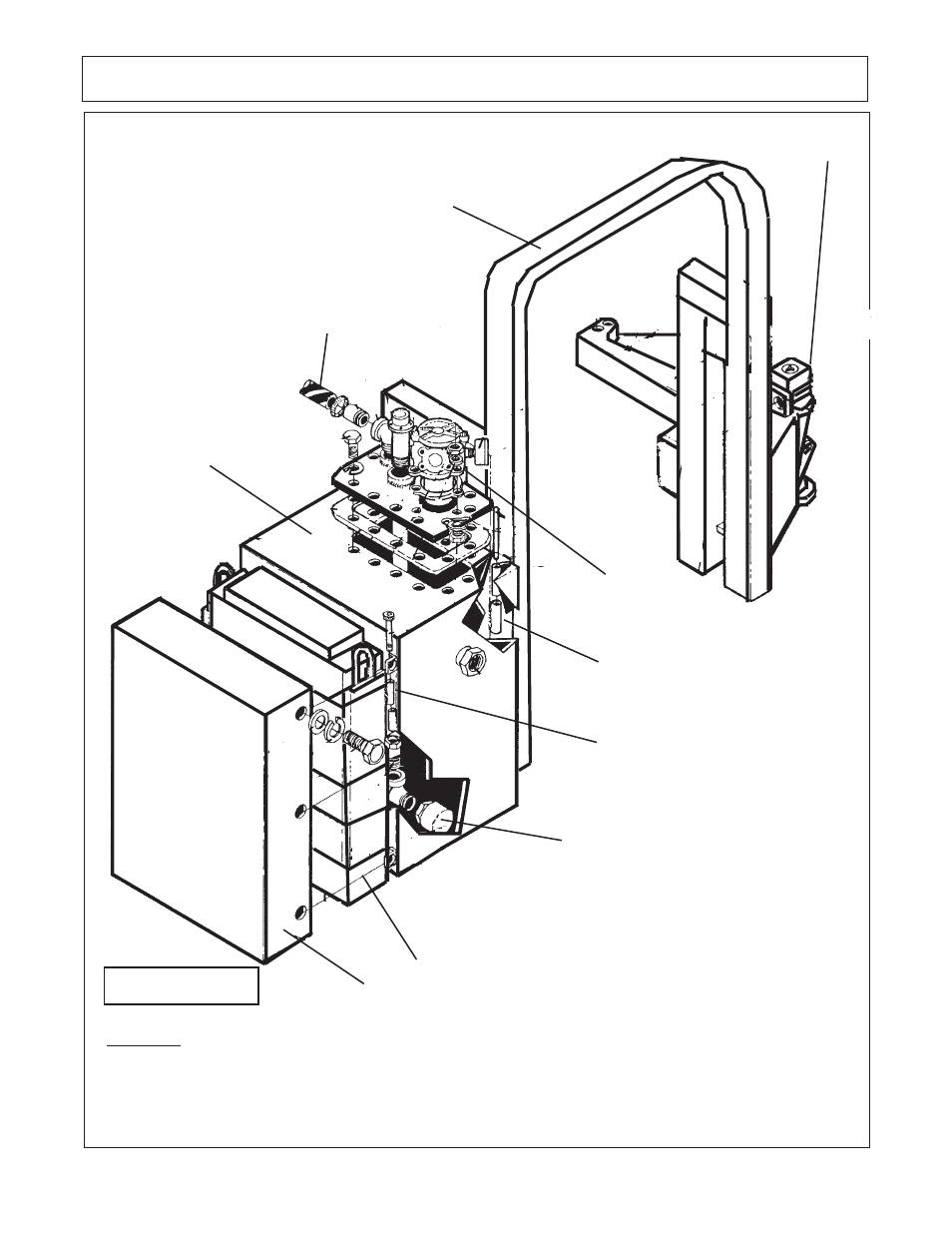

High Frame & King Post Asy
Figure 5
High Frame
Hydraulic Tank
Tank Counter Weight Weldment
Counter Weight Cover
King Post
Oil Return Filter
Oil Suction Filter
Hydraulic Tank
Mounting Tube
Counter Weight
Mounting Tube
NOTE: Shown above is a general view of the High Frame, Counter Weight
and Cover and may not look the same as the one for your application. The
Assembly procedures will be the same even if the shape of Tank and
Weight are different than shown.
Suction Line
to Pump
