Joystick Mounting 2 WD & 4 WD
Installing Warning and
Instruction Decals:
1. Always clean windows before installing
decals. Windows must be dry and free of any oil,
after cleaning do not touch windows before
decals are installed. Take precaution to make
sure decals are right side up and straight when
installing them, they cannot be taken off and
redone.
2. Identify Decals. Lay all the Decals out
and ID each one so you will know which is
installed where. The Decals will have the Part
Number on them in the lower corners.
Decal No.
Description
00763977 Notice to Owner
02964677 Important - Boom Rest
02963524 Attention - Boom Swing
02965093 Proper Engine Operating
02965262 Warning - Hose Burst
02967827 Multi - Hazard
3. Multi-Hazard - Danger Decal. This is
installed on the Left Side Window of Cab on the
inside to Drivers Left. (See Figure 16)
4. Warning Hose Burst Decal. This installs
on the Right Side Window of Cab on the Inside to
Drivers Right (See Figure 17)
5. Notice To Owner Decal. This installs on
the inside top rear of Right Door Glass (See
Figure 18)
6. Attention Boom Swing Decal. This in-
stalls on the inside top rear of Right Door Glass
(See Figure 18)
7. Important Boom Rest Decal. This in-
stalls on the inside top rear of Right Door Glass
(See Figure 18)
8. Proper Engine Operating Decal. This
installs on the inside top rear of Right Door Glass
(See Figure 18)

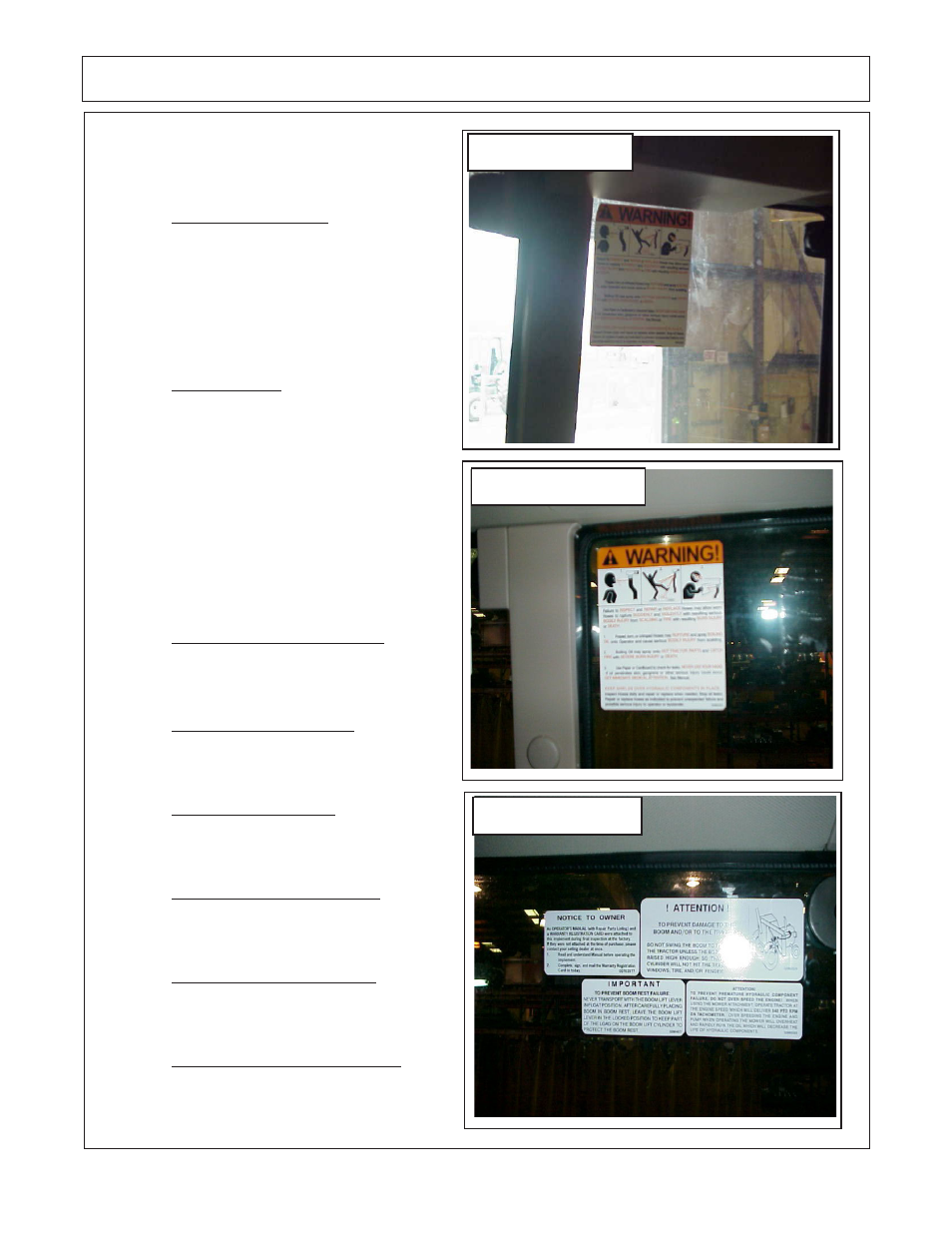

FIGURE 16
FIGURE 17
FIGURE 18
00763977
02967827
02965262
02963524
02964677 02965093
