Alamo DSEB-D16 - Manual (Page 44)

© 2003 Alamo Group Inc.
Section 4 - 15
A-Boom(JD 6615/ 7615 Asy Instruction Manual) 07/03
Frame Rail Installation
9. Install Mounting Tubes . Loosely bolt
the Front Angle Mount end of Mounting Tube
(See Figure 32). Slide 1 Mounting Tube in on
top of the Frame Rail on each side, the end
that has the Angle Mount bolted to it goes to
the Front away from the Tractor Cab. The
mounting Tube should be slid back till the end
of mounting tube is about 1/2" from the end of
the Frame Rail. (See Figure 34). Do Not
Tack Weld any components at this time.
Note: in figure 32 note the location of High
Frame Tube Height as compared to Mount-
ing Tube Height, this is the way that it will
appear as looking over the Hood of the Trac-
tor toward LH Side.

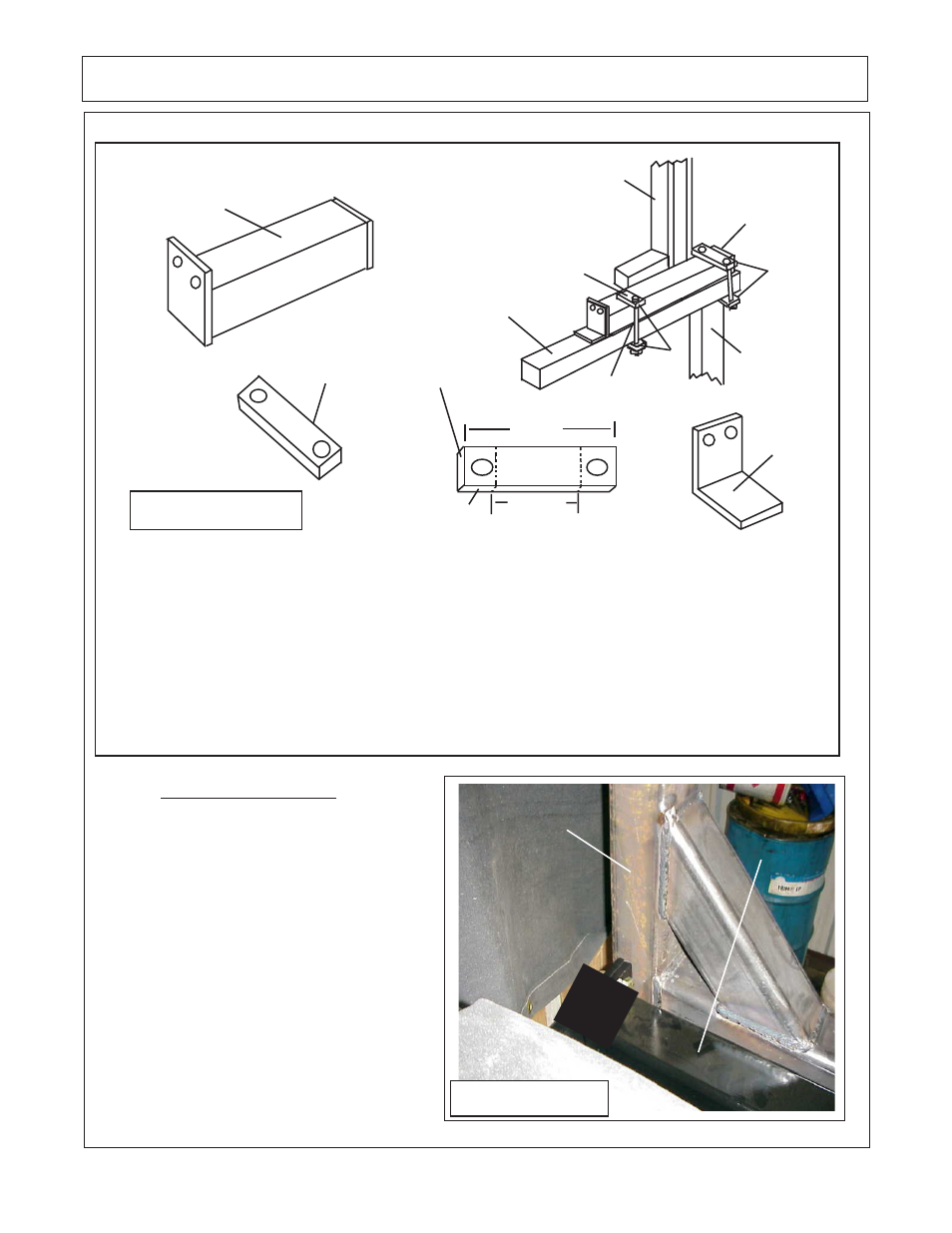

Figure 32
Mounting
Tube
High Frame
(LH Side)
Pre-Install Mounting Tubes for High Frame: (continued)
Item Part No. Qty Description
1 ---Ref----- 2 Mounting Tubes, (Length may Vary with Mount Kit).
02918600 4 Bolt, 3/4" X 2" Long (Not Shown)
00037200 4 Locknut, 3/4" Toplock (Not Shown
2 02966639 6 Bar Mounting Strap
2A 02966639 2 Bar Mounting Strap (Cut one end off LH Rail only)
3 00037200 8 Locknut, Toplock
4 02957039 8 Bolt, 3/4" X 10-1/2" Long
5 02966641 2 Angle Mount (Front only)
4
1
2A
RH Frame Rail
Front Shown
Machete High
Frame
Frame Rail
(to Rear Axle)
1
5
2
2A
Cut one end off
6-3/4"
2
Figure 31
2A
Mounting
Tube Width
