A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

© 2003

Alamo Group Inc.

Section 4 - 18

Frame Rail Installation

Tack Welding Frame Rails:

(continued)

4.

Frame Stiffener Assembly. The frame stiffener is an assembly designed to run under the

Tractor to tie the two Frame Rails together and support each other. The Gusset Rail Support is designed
to stabilize the Frame Rails to the tractor frame. Re-check the left hand and right hand sides to make
sure the alignment is still correct and the tack Welding has been performed.

5.

Locate Mounting Tubes and Hardware. See Figure 31 for breakdown of these components.

A.

There will be one Mounting Tube for each side; these tubes are the same so it will not
matter which is on which side. The Mounting Tubes are the same on either end. (See
Figure 31 - Item 1).

B.

There will be 8 Bar Mounting Straps (Part # 02966639); these straps are the same but
later in the assembly process 2 will have to be cut (See Figure 31 - Item 2 & 2A).

C.

There are 2 Angle Mounts (Part # 02966641), these have two holes in them and when
mounted the hole will be up. (See Figure 31 - Item 5).

D.

There are 8 bolts (Part # 02957039) & Locknuts (Part # 00037200), the bolts are 3/4"
X 10-1/2" Long (See Figure 31 - Item 4).

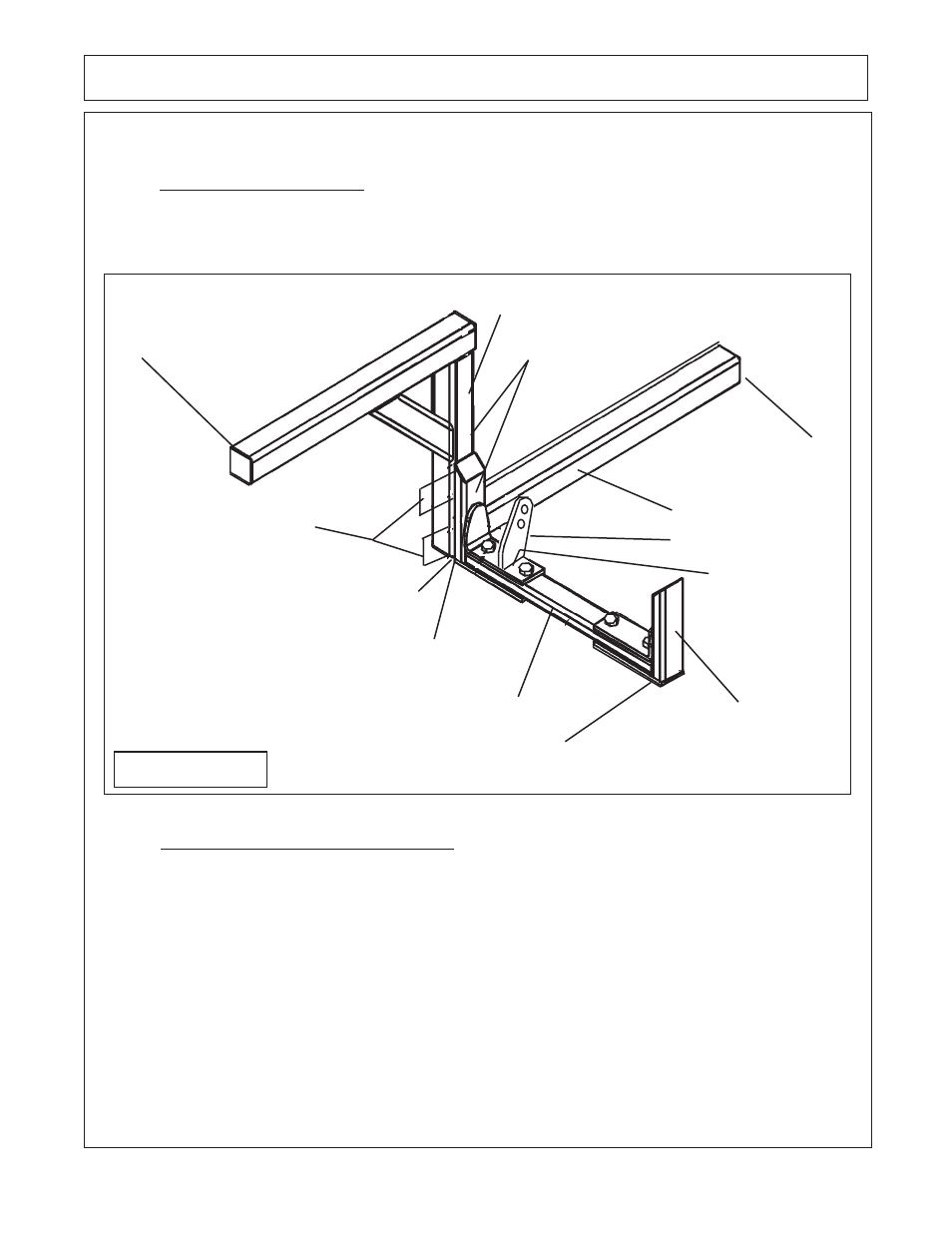

Vertical Tube of RH Frame Rail

Tack Weld here on both

sides Front and Back only

after alignment

C-Clamp Here

RH Rail Stiffener Weldment (RH Side)

Horizontal Tube

Rail Stiffener Tube Crossmember

LH Rail Stiffener Weldment

(LH Side)

Rear Axle End

Front Wheel End

Align Flush with Bottom

of Vertical Tube

LH Frame Rail is

Mounted Here

Gusset Rail Support

Tack Weld Here

after final

assembly only

Figure 39
