A-Boom(JD 6615/ 7615 Asy Instruction Manual) 07/03
Frame Rail Installation
Pre-Installing High Frame:
(continued)
4. Lower High frame down over Tractor.
This is a two man job in order to keep control of
High Frame on both sides of tractor (See
Figure 25). Lower the High Frame down over
the Frame rails (See Figure 26) slowly, as it
must straddle the Frame Rails (See Figure
26). Lower High Frame untill the top of the High
Frame is no higher than the cab of The Tractor
max. and no lower than 24-1/2" from frame to
hood as the min. distance (See Figure 25) .
Another mark to look at is the Horizontal tube of
the High frame should be parallel up and down
with the Frame Rail Tube as shown on next
page (See Figure 29).
5. Check High Frame for Level. Check
the two Magnetic Levels that you installed
earlier. The Top Level should be from side to
side of the Tractor (See Figure 27). The level
on the King Post Pivot Pin should be level
making High Frame Level straight up and Down
(See Figure 28). Leave the Magnets on the
High frame, as you will have to check then one
more time later. DO NOT do any welding at this
time.
6. Secure High Frame to Frame Rails.
Secure the High Frame to the Frame rails with
C-Clamps on both sides (See Figure 29). Do
not weld anything at this time.

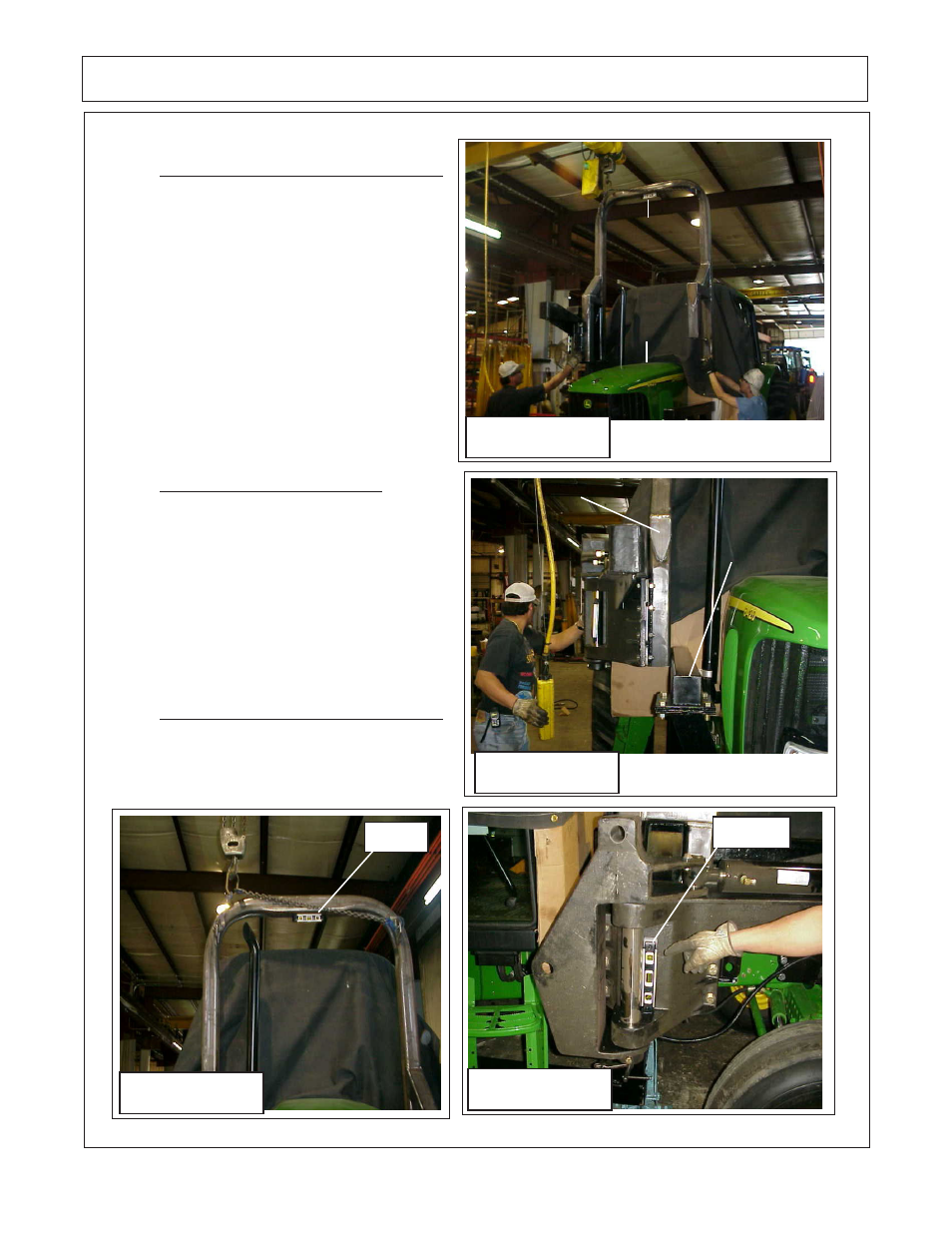

Figure 25
Figure 26
Frame Rail
High Frame
Figure 28
Level
Figure 27
Level
24-1/2"
Min
height
frame
to
Hood
