Hose Installation
Pump / Tank Hose Installation: (continued)
3. Connect hose from Pump to Cylinder
Control Valve. This will be the small hose connec-
tion on thr RH side of the pump (See Figure 10)
for this hose, this hose cannot be connected to
Cyl. Control valve untill later.
4. Connect Hose from Cutter Valve to Motor.
The Hose from the Cutter / Motor Control Valve
runs down the Boom using Steel lines and Hoses
(See Figure 12)
5. Connect Return Hose from Motor to Cutter
/ Motor Control Valve. Connect the hose from the
Motor return to the Cutter / Motor Control Valve
(See Figure 12).
6. Return Hose from Cutter Valve to Tank.
Connect the return hose from the Cutter / Motor
Control valve to the Tank. (See Figure 12). This
hose will run down under tractor to the left side.
(See Figure 13) anfd then back up the LH side to
the Tank. (See Figure 14). The return hose
connects to the return Filter Housing (See Figure
15).
7. Return Pressure Gauge. The Return Pres-
sure Gauge is a low Pressure Guage that displays
uses in Green and Red Fields, Return should stay
in the Green when Oil is warm and Tractor is
running. (See Figure 15).

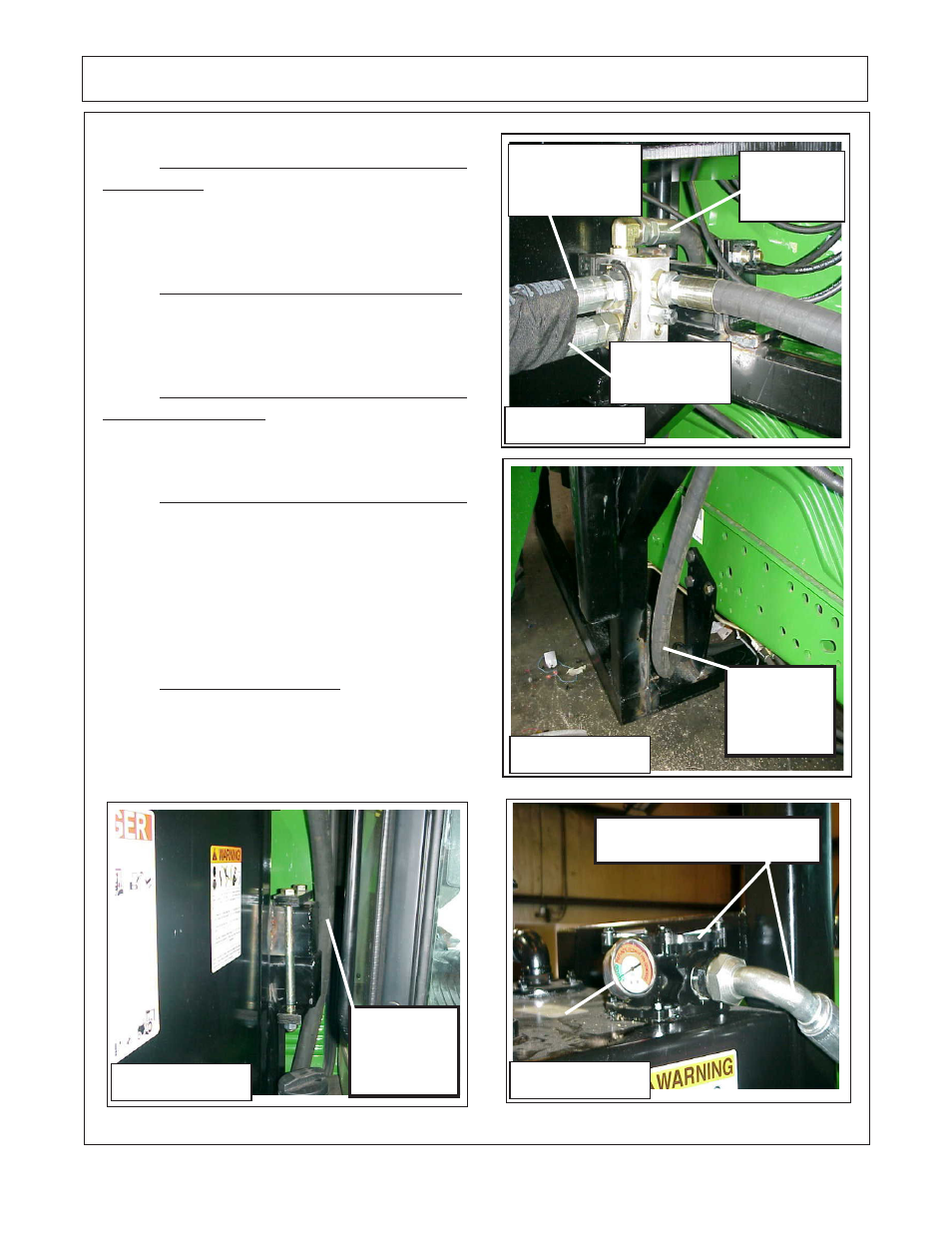

Figure 12
Pressure from
Cutter / Motor
Valve to Motor
Return Hose
from Motor
Return Hose
to Tank
Figure 13
Return Hose
from Cutter
Valve to
Tank
Figure 14
Return Hose
from Cutter
Valve to
Tank
Figure 15
Tank Return Hose to Tank
Return Filter Housing
Return Hose
Pressure Gauge
