© 2003 Alamo Group Inc. Section 13 - 3
A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

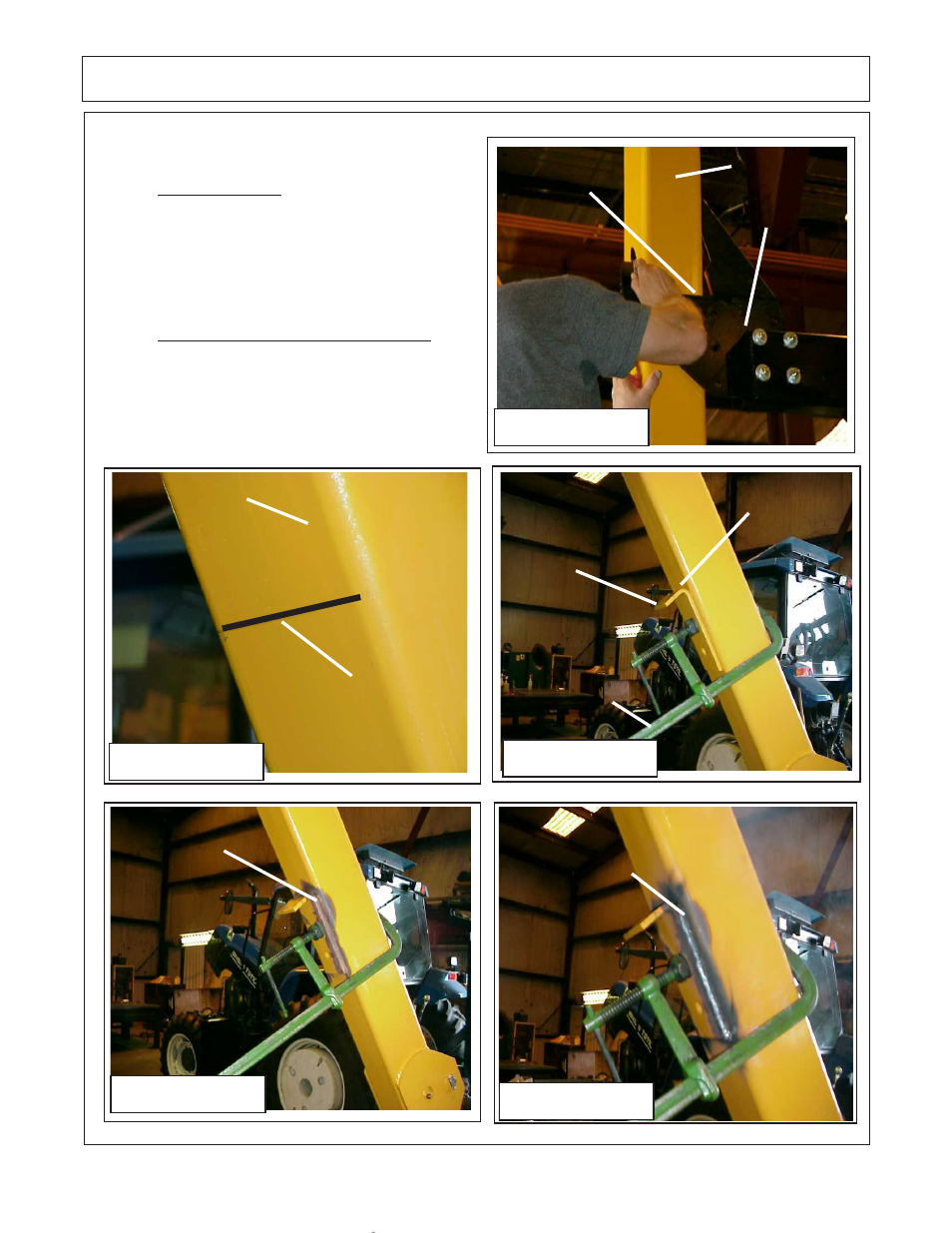

Boom Rest Plate & Hook Installation
Boom Rest Plate installation:
5. Marking Boom. Use a Black (or color de-
sired) to mark the Boom, Make a Line on the Boom
parrelel with the Bolt on Boom Rest across the
Boom, (See Figure 5 & 6). This line will be used to
align the the Boom Plate Rest Hook for welding to
Boom.
6. Clamp Boom Rest Hook to Boom. Align
Boom Rest Hook with the line on Boom and clamp
with large C-Clamp (See Figure 7). Remove Paint
if possible (See Figure 8). Weld both sides of the
Boom Rest Hook to Boom (See Figure 9) Move
Boom back into Boom rest and check for fit.
FIGURE 5
FIGURE 6
FIGURE 7
Boom
Rest
Hook
C-Clamp
Boom
Bolt on
Boom
Rest
Mark
Here
Boom
Marked
Here
Marked
Here
FIGURE 8
FIGURE 9
Clean off
Paint
before
Welding
Weld on
both sides
as shown
