© 2003 Alamo Group Inc. Section 6 - 3
A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

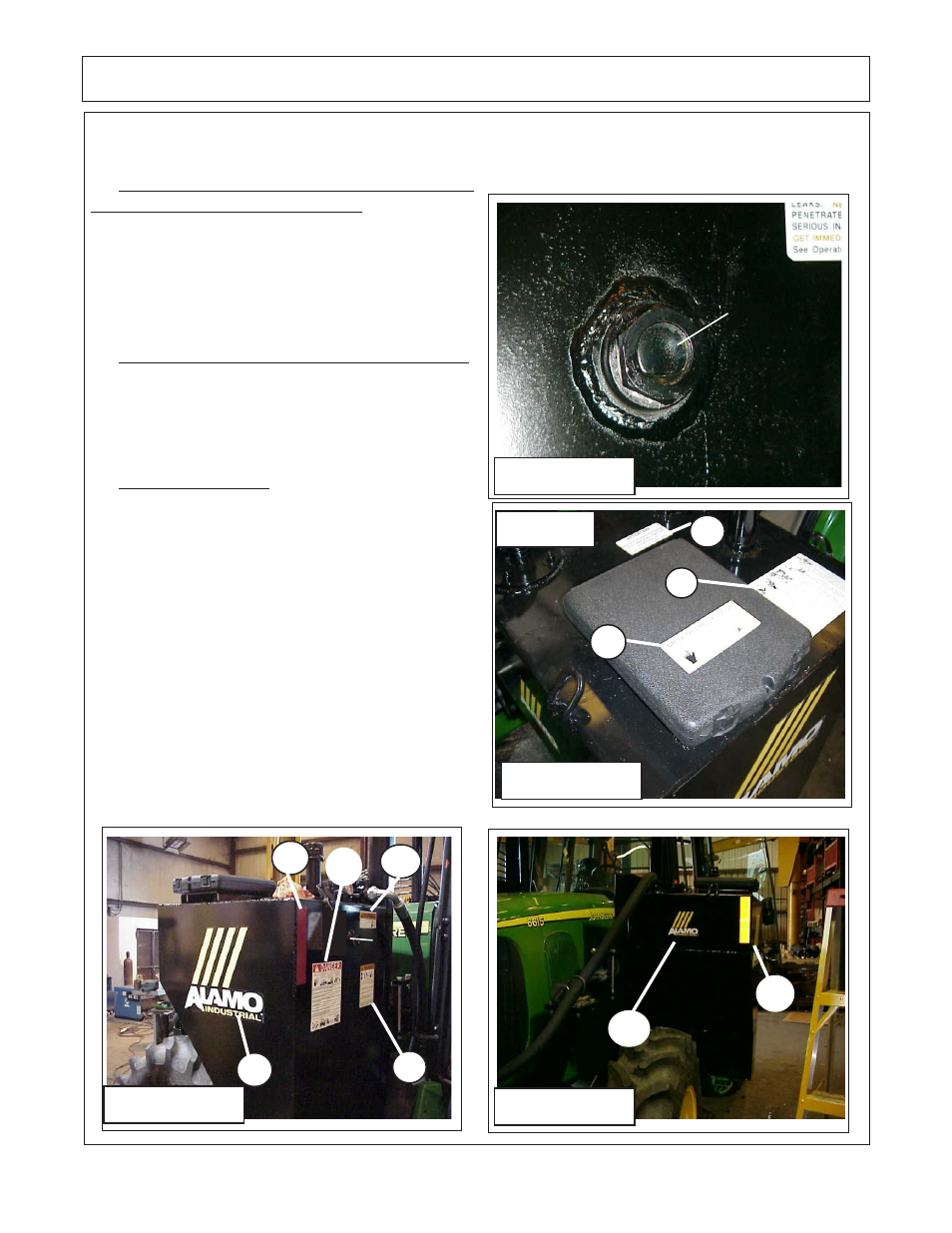

Decal Installation
Tank Oil Level Sight Gauge:
1. Oil Level Sight Gauge is mounted on the side of
the tank facing the rear of the tractor. The Tank may
have to have the Paint touched up, or repainted
completly. Use caution not to paint over this or
damage it. (See Figure 31 & 32)
Tank Decal Installation:
1. Install Decals on Hydrailic Tank and CWT Cover.
There are 10 decals that need to be installed on the
Hydraulic Tank and CWT Cover (See Figure 32, 33,
34). Counter Weight must be Installed befor
Boom is mounted to King Post.
2. Decal Part Number. (See Figure 32, 33, 34)
1 = # 02966305,
Attention - Universal Tractor Hydraulic Oil
2 = # 02958241, Operators Safety Decal
3 = # 02977417,
Operators Manual Inside
4 = # 1458392, Red Reflector
5 = # 1458392, Yellow Reflector (mount in front of CWT Cover)
6 = # 00756059,
Warning - Oil Leak
7 = # 02957827, Danger - Multi Hazard (Rotary) or
# 002369,
Danger - Multi Hazard (Flail)
8 = # 02965262, Warning - Hose Burst
9 = # 002508,
Alamo Industrial Logo - Small (on front upper Tank)
10 = # 00769394, Alamo Industrial Logo - Large
Most Decals should already be installed when Tank
Asembly is shipped.
Oil Level
Sight Gauge
Figure 31
Figure 32
Top of Tank
1
2
3
4
7
6
8
Oil Level
Sight Gauge
10
Figure 33 Figure 34
5
9
