A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03
© 2003 Alamo Group Inc. Section 3 - 6

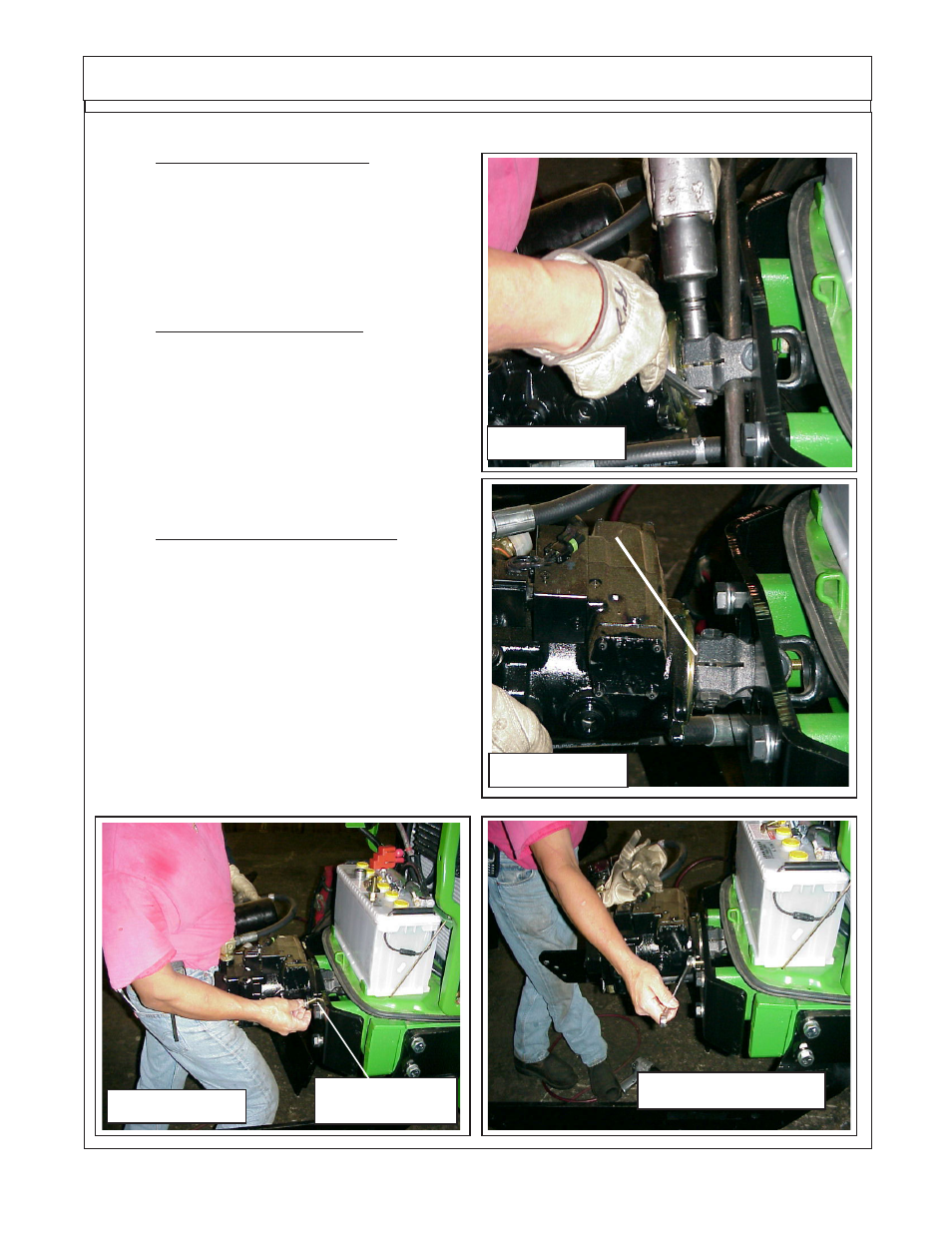

Pump / Drive Assembly Instructions
Figure 14
Gap ? Check, this must have a gap
between Pump & drivesahft
Figure 15
Pump Retaining
Bolts (2)
Installing Pump: (continued)
5 . Mount Pump to Pump Plate. Remove the
Bar that is slid through the Driveshaft Yoke and
push the Pump inward (See Figure 14). This will
make the two piece Driveshaft slide together al-
lowing the Pump to be pushed towards the tractor.
Do this untill the Pump is against the Pump Plate
(See Figure 15).
6. Install Pump Mounting Bolts. While holding
in on the Pump (See Figure 15) start the two
Pump Retaining Bolts. Make sure both Bolts are
started well before you stop supporting pump. The
Bolts should be snugged untill pump sits level
before you stop supporting it (See Figure 16). Let
go of the Pump, it may slide back some and leave
a slight gap between Pump and Mounting Plate
(See Figure 16).
7. Tightening Pump Mounting Bolts. There is
a shoulder on Pump Flange that must line up
through hole in Pump Mounting Plate (See Figure
14), if the Pump is slid back as in figure 14 try to
push it inward untill it is against Pump Mount Plate
as shown (See Figure 15). Slowly and alternating
from Left to the Right side, tighten the Pump
mounting bolts untill they are tight. DO NOT FORCE
Pump through Pump Mount Plate, if it will not freely
slide in check for a problem of some kind. Excess
force could damage Pump Housing. (See Figure
16). Do Not remove any Plastic caps from Pump
inlet or outlet at this time, keep all openings plugged
and sealed to keep them clean.
Figure 13
Figure 16
