A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03
© 2003 Alamo Group Inc. Section 4 - 22

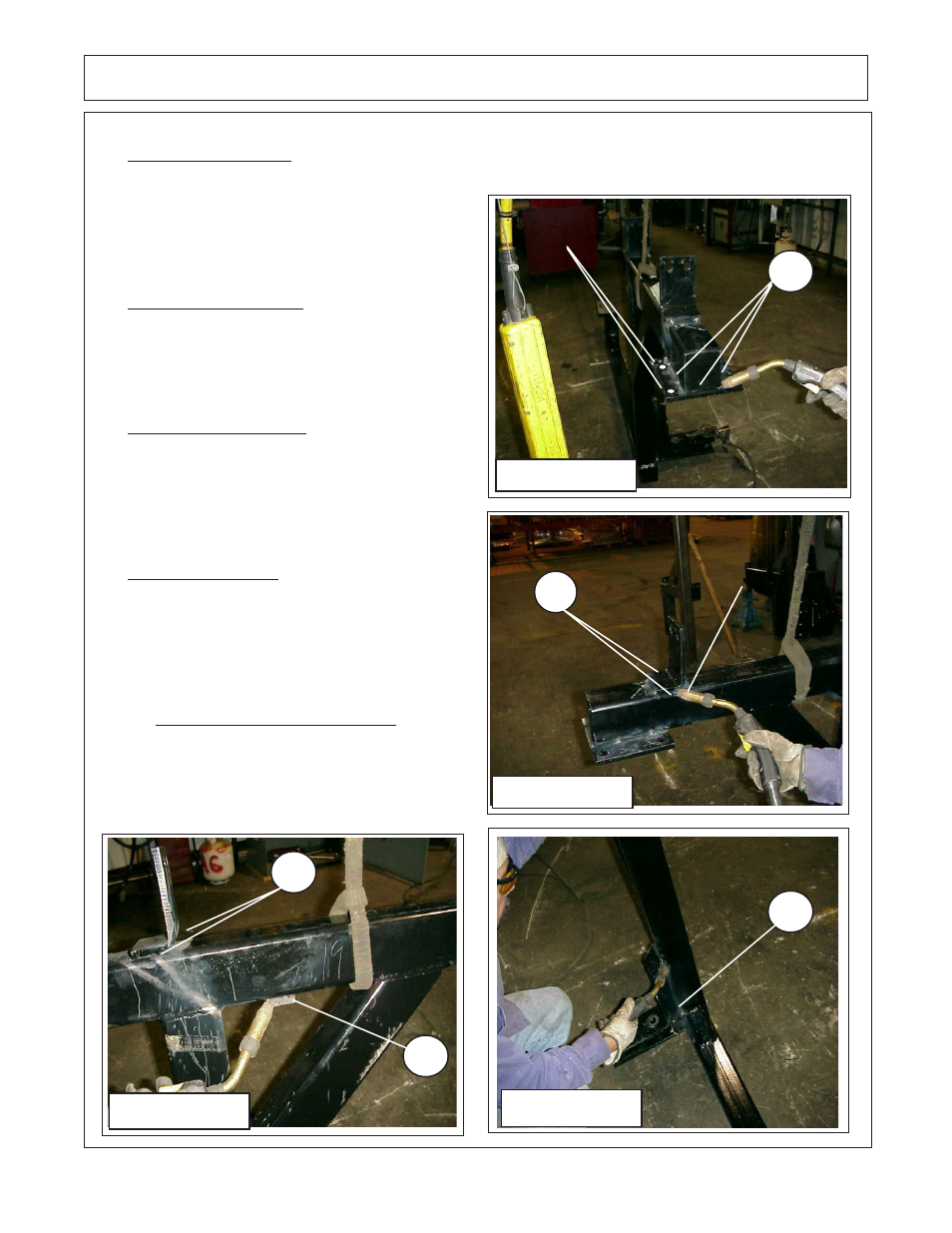

Frame Rail Installation
Remove High Frame for Welding.:
1. Remove Frame Rails. It is best to remove the
Frame Rails to weld them. Frame Rails will need to
be welded in five places. Note: The RH Frame Rail
and the LH Frame Rail will have the same Welding
done. For Illustration we are showing the RH Frame
Rail, but the LH will have to be done also.
2. Weld Front Mount Plate. Weld down each side
between Bolt Holes. Do not Weld to where the
Weld will interfere with the Hex Head of Bolts when
they are installed. Also weld across the Front of the
Mounting Pad. (See Figure 51, 55 & 56)
3. Weld Front Angle Mount. Weld the Front Angle
Mount to the Frame Rail on the Sides running
parallel to the Frame Rail, Not across Frame Rail
(See Figure 52 & 58). Weld the Rear Angle Mount
to Frame rail the same as the front (See Figure
53).
4. Bar Mounting Strap. Weld these all the way
around, first check your measurements for place-
ment. The Bar Mounting Straps are cut and must
be placed to where they will line up with the ones
that you welded to the High frame mounting tubes
earlier. (See Figure 53)
5. Frame Rail Stiffener Weldment. Weld the
Frame stiffener to Frame rail on both sides. (See
Figure 24). Touch up or re-paint frame compo-
nents after welding is completed. There are
other components that need to be installed
before you reinstall frame.
2
Figure 51
Do Not Weld next to Bolt Holes, it
will interfere Hex Heads of Bolts
3
Figure 52
Weld along sides of Angle Mount
and frame rail on both sides (this
applies to"A" & "B")
5
Figure 54
4
Figure 53
3
