A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

Alamo Group Inc.

Section 4 - 14

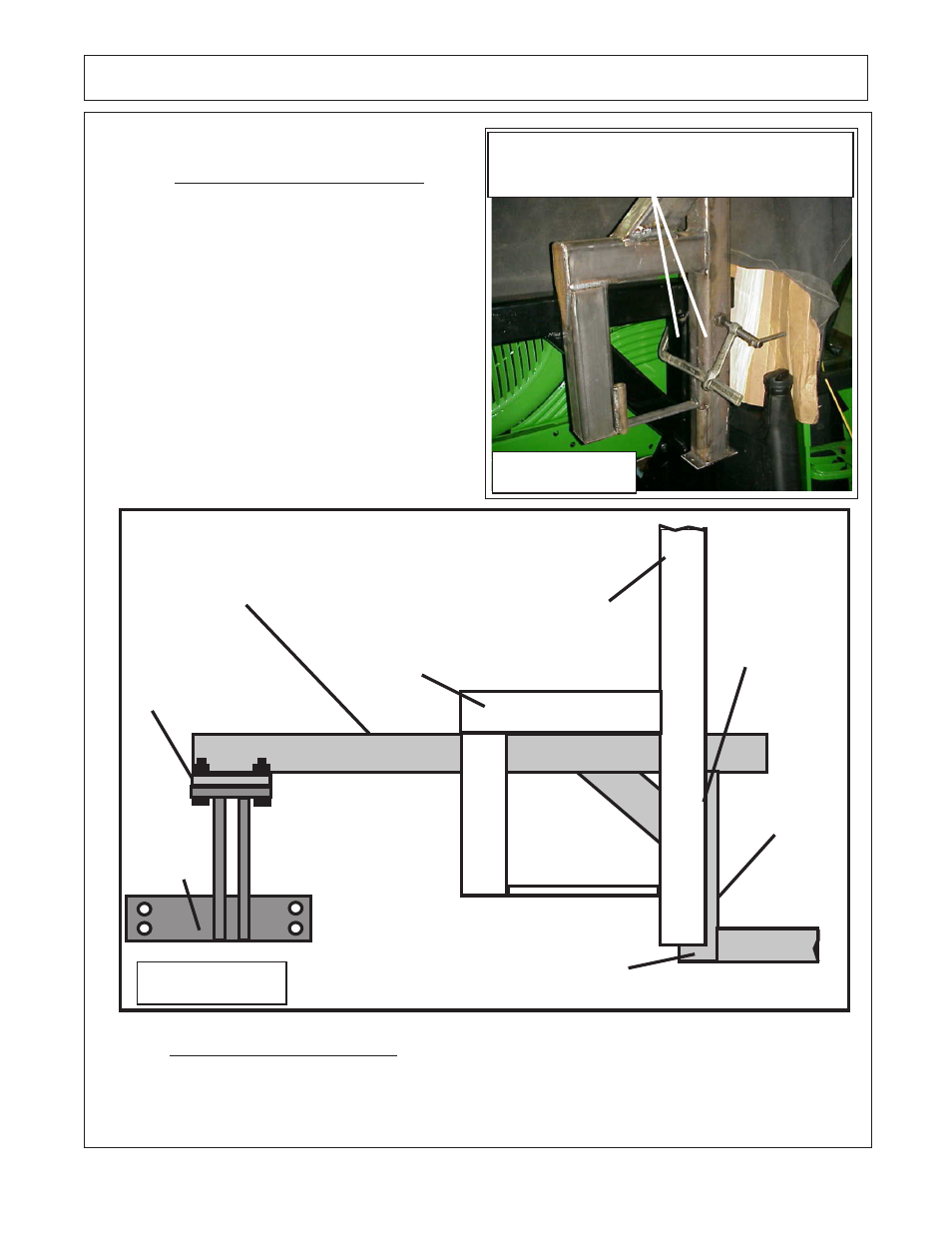

Frame Rail Installation

Figure 29

Pre-Installing High Frame:

(continued)

Align High frame to Frame Rails. The

High Frame Vertical Tube should be as directly
above the Vertical tube of the frame rails as
possible (See Figure 30). The illustrations in
figure 30 shows the High Frame not directly
over the Frame Rail Vertical Tube, try to get it
as directly over it as you can.

The height of the High frame should be

no higher than the Cab of the Tractor. The
horizontal tube of the High Frame should be
just above the height of the horizontal Tube of
the Frame Rail (See Figure 29 & 30)

Clamp the High frame to the Frame

Rail when aligned and leveled. (See Figure
29). Leave the Hoist connected to the High
frame for safety and additional support.

123456789

12345678

12345678901234567890123456

1234567890123456789012345678901212

Frame Rail

Vertical Tube

Machete High Frame

Vertical Tube

Front

Support

Mount

Support

Plate

Set High

Frame in

Line with

Frame Rail

Vertical Tube

as shown

Frame Rail

Horizontal Tube

Frame Rail leading to rear

Axle Housing of Tractor

High Frame

Horizontal Tube

Figure 30

Re-check all alignment points. Re-check the alignment of the Frame Rails and High

Frame for level mounting position. These components must be aligned now before any Tack
welding begins.

Frame Rail Tube & Frame Rail must be align
parallel with each other up and down here
