Hyd. Tank - CWT Installation
Hydraulic Tank Installation:
1. Caution. Care must be taken to keep Hydrau-
lic System clean. Do not leave any openings in
Tank while installing it, they must remain sealed
untill ready to install a component and then sealed
back up.
2. Hydraulic Tank Installation. The Hydraulic
Tank is shipped with the return Filter Assembly,
the Suction Filter assembly is already installed in
the Tank. The Hydraulic Tank is mounted on the
LH side of LH Frame Rail. The Mounting Tubes are
welded to the Frame rail and to the Hydraulic Tank
(See Figure 28 & 29). Do not fill Hydraulic Tank
with Oil untill all the Hoses have been installed and
tightened.
Counter Weight Installation:
1. Counter Weight (CWT) Installation. The
Counter weight (See Figure 28) mounts on the
LH side and is mounted to the Hydraulic tank
which mounts to the LH Frame Rail with a
mounting bolts running up through tubes that
have been welded to the frame rail and Tank. The
Bolts must be installed as shown with the Lock-
nuts to the inside . Installing the Bolts this way will
make them easier to tighten up (See Figure 28 &
29). Install both bolts as shown (See Figure 28).
Snug the Bolts, don't tighten them yet.
2. Counter Weight Cover (CWT). The Counter
Weight Cover will bolt to counter weight. (See
Figure 28 & 30).
3. Parts / Operators Manual Cannister. The Parts
/ Operators Manual Cannister Bolts to the top of
the Hydraulic tank (See Figure 30). The Parts/
Operators Manual should be put into cannister
prior to delivery of Unit to the operator.

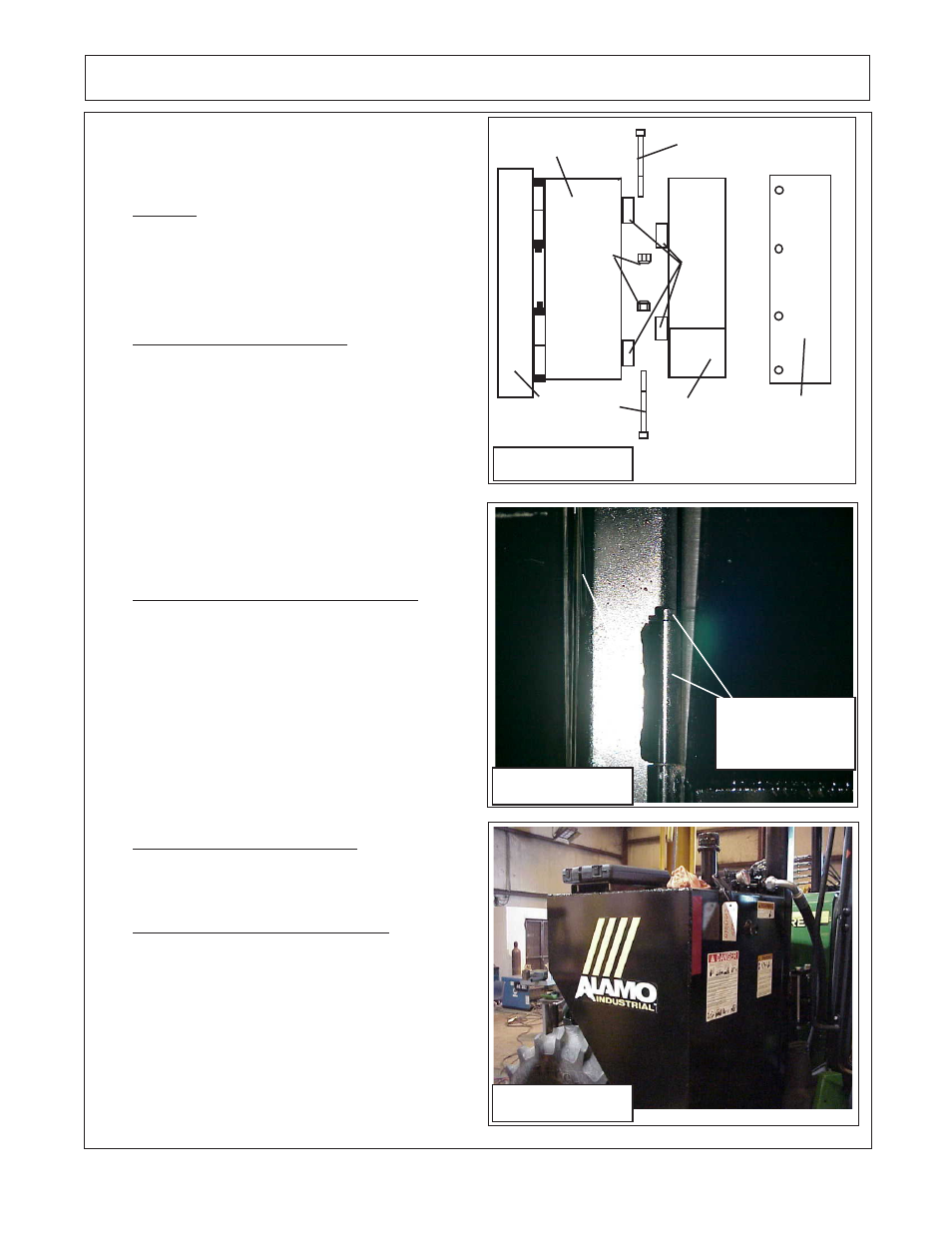

Figure 28
