Boom Installation

4.

Attach the Rod end of the Lift Cylinder

(7) to the Lift Section with Pin (8), Bolt (9) and
Nut (10) (also see Parts Section on the Boom
Assembly) (See Figure 3).

5.

Attach the Swing Cylinder . The Swing

Cylinder attaches to the King Post on the Rod
End and to the High frame on the Butt end of
cylinder, There are two holes on the High frame
that cylinder can be connected to. The outer
Hole is the one that cylinder pin should be put
in for a rear swing A-Boom. A Forward Swing
A-Boom is rare, majority wil be rear Swing
(parks to the rear for Transport.) (See Figure
6 & 7).

6.

Leave Boom Supported by Hoist untill

Boom is connected to King Post and all cylin-
ders attached. (See Figure 3). The Boom will
have to be lifted again when Head is installed.
Do not lift Boom with Hoist if the Cylinder hoses
are open, the Cylinders are built with the inter-
nal components covered with Oil. If boom is
raised by hoist while these hoses are discon-
nected oil may be forced out of collapsing end
of cylinder.

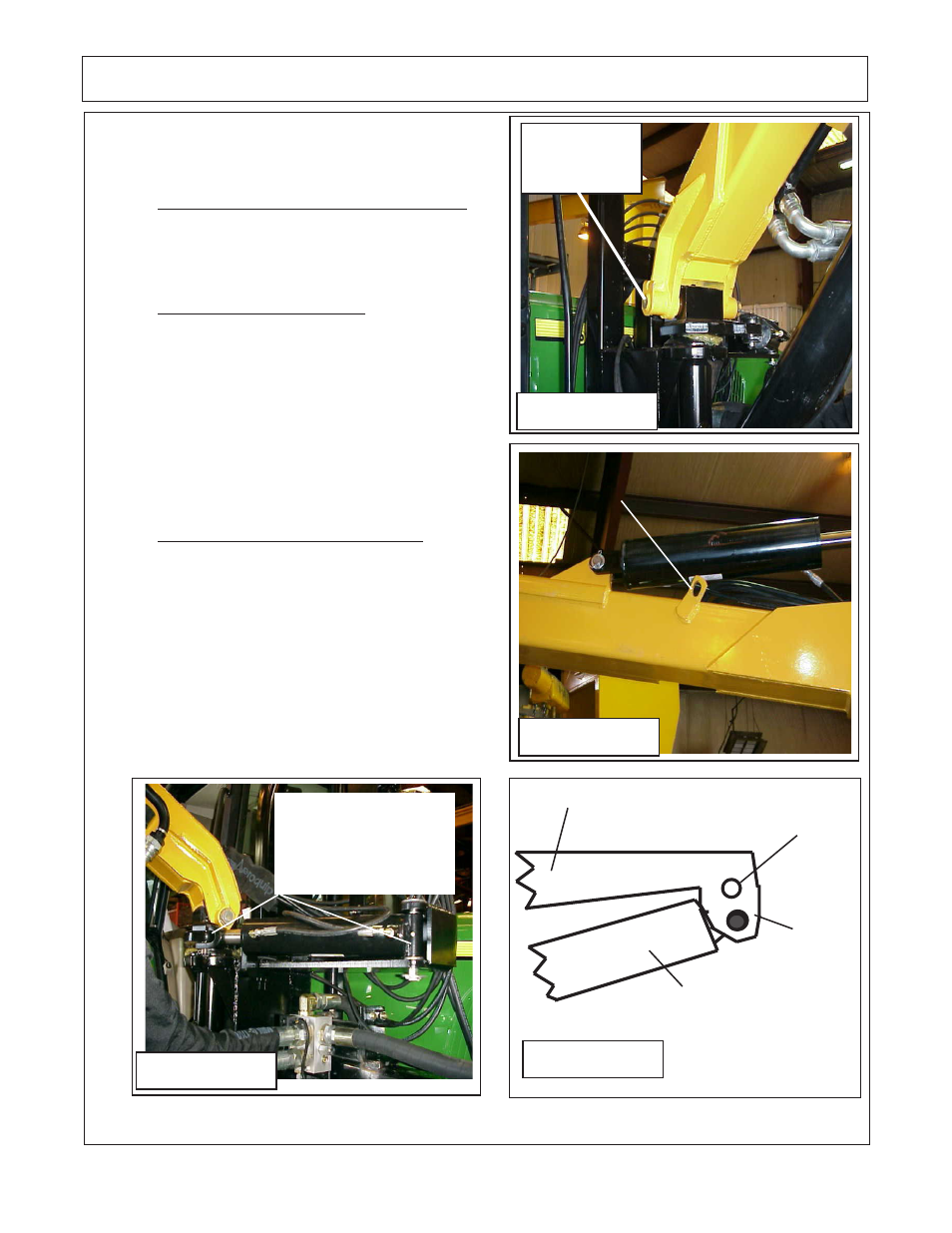

Boom Installation / Boom Hoses:

(continued)

Lifting Lugs weld on here

Figure 5

Boom

Retaining Pin

& Nut

Figure 4

Attach Swing

Cylinder to King

Post and High

Frame

Figure 6

Figure 7

Rear

Swing

Hole

High Frame

(Swing Cylinder Mount)

Swing Cylinder

Butt End

Front

Swing

Hole
