A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03
© 2003 Alamo Group Inc. Section 5 - 6
Frame Rail Installation 4 WD

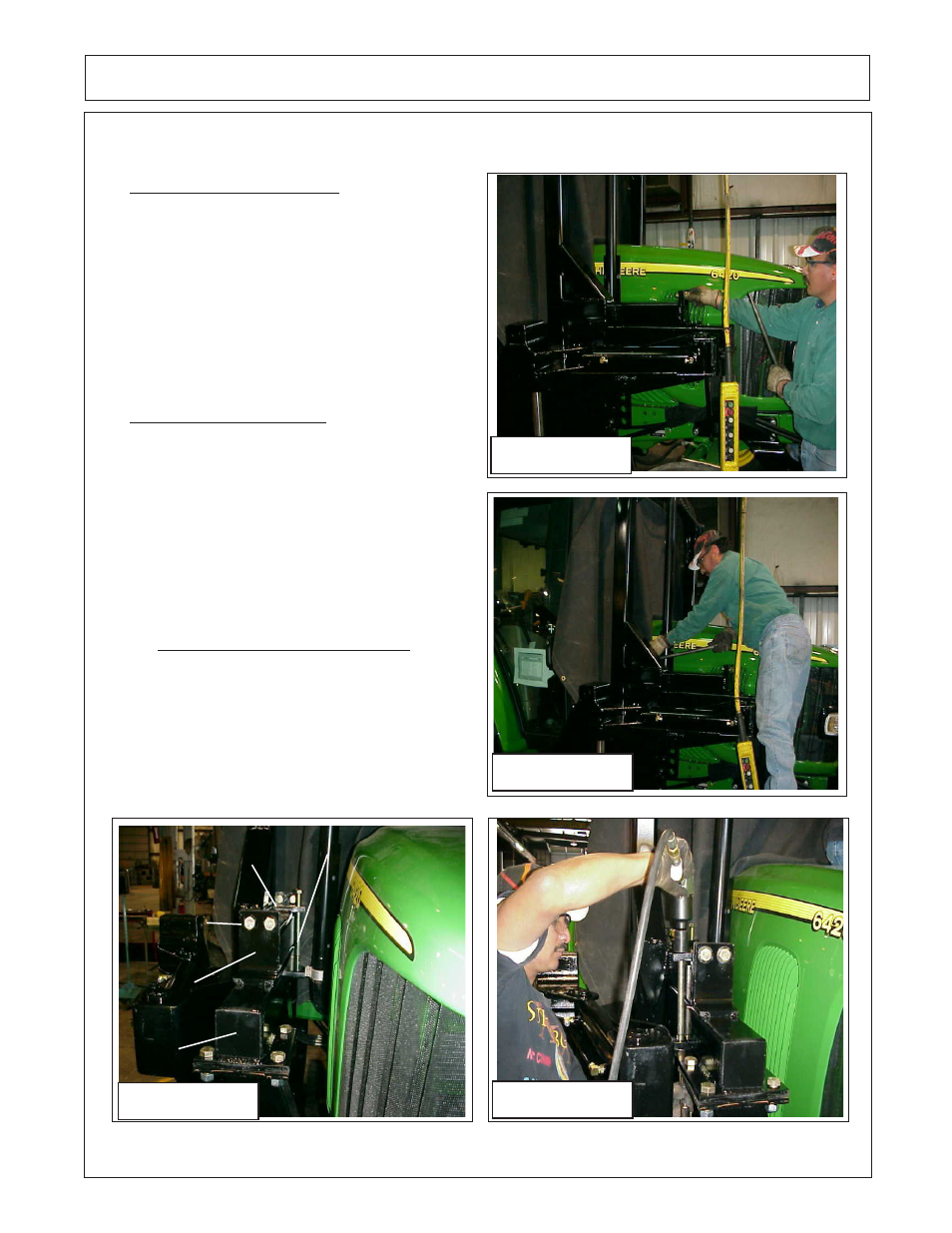

Re-Install High Frame to Tractor: (continued)
5.
Install Mounting Tube Bolts. The High frame
must still be hung on the Hoist for safety and
support, but sitting down on the frame rails. There
are 8 Bolts and Nuts that go through the Angle
Mounts and the Plates on the end of the Mounting
Tubes. There are 2 on each end and 4 on each
side. Install these 8 Bolts now but snug them only
do not tighten them down yet (See Figure 18). You
may need to insert a bar into one of the holes to
align them (See Figure 19).
6. Install Bar Mounting Straps. The rear Bar Mount-
ing Straps are the ones that were cut and welded
to the tubes, just put the Bolt through these (See
Figure 20). Snug the Bolt in using the Lock Nuts.
The Front Bar Mounting Strap will have a strap on
the Bottom and another one on the top with a bolt
on each side. Install these bolts and nuts. Snug
them only for now. (See Figure 21). Install the Bar
mounting Straps with Bolts and Nuts on the LH and
RH Side.
7. Tighten High frame Mounting Bolts. Tighten
the 8 Bolts and Nuts for the Mounting Tubes (See
Figure 18 & 19). Tighten the Bolts for the Bar
Mounting Straps, These bolts must be tighten so
the straps stay even on both sides so Bars will stay
even. The rear bar strap mounting bolt uses the
Bars that are welded to tube and only have one bolt
(See figure 20 & 21).
Figure 18
Figure 19
Frame
Rail
Mounting
Tube
Welded on Bar
Mounting Strap Bolt
Figure 20
Figure 21
Mounting
Tube Bolts
