A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

Alamo Group Inc.

Section 5 - 8

Frame Rail Installation 4 WD

123456789

12345678901234567890123456

1234567890123456789012345678901212345678901234567890123456789012123

1234567890123456789012345678901212

1234567

123456

Frame Rail

Bar Mounting Strap

Wleded to Frame

Approx 1/2"
from end of

frame rail

Frame

Rail

Machete High Frame

Front

Support

Mount

Mounting Angle / Mounting

Tube Bolts & Nuts

Mounting Tube

Bar Mounting Straps

with Bolts & Nuts

Mount

Plate
Bolts

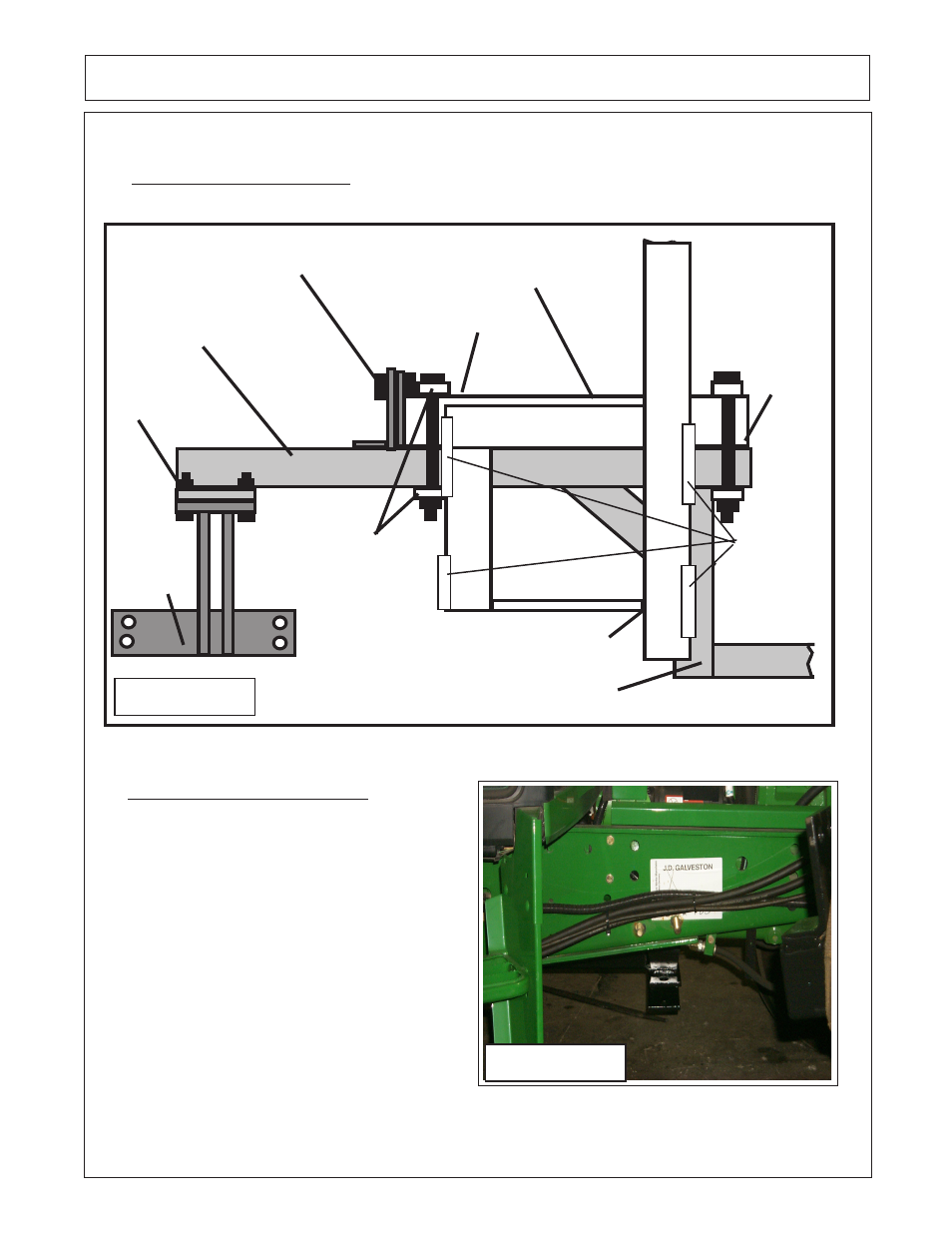

Figure 26

Re-Install High Frame to Tractor:

(continued)

Frame Mount should look like. Shown below is basically what the High Frame should look like when

assembled (See Figure 26).

10.

Tie Hoses to Tractor Frame Rail. Use Plastic

Wire Ties to tie the Hoses and Cables from the
rear of the Tractor down Frame Rails. Note:
below it is shown with the Frame Rails not
mounted to Tractor, this is done for illustration
only (See Figure 27).

Inspect all the Hoses, Wire harness and

Cables to make sure they are secured and will not
be rubbed or chaffed on anything. Hoses and
Wire harness should not be hanging down where
they will be caught on anything. If there is excess
length in hoses or wire harness, gather this ex-
cess up under cab and secure it out of the way.
There will most likely be excess length in these
hoses and wire harness.

Figure 27

123456789

123456

Tank

Mounting

Tubes
