© 2003 Alamo Group Inc. Section 11 - 3
A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03

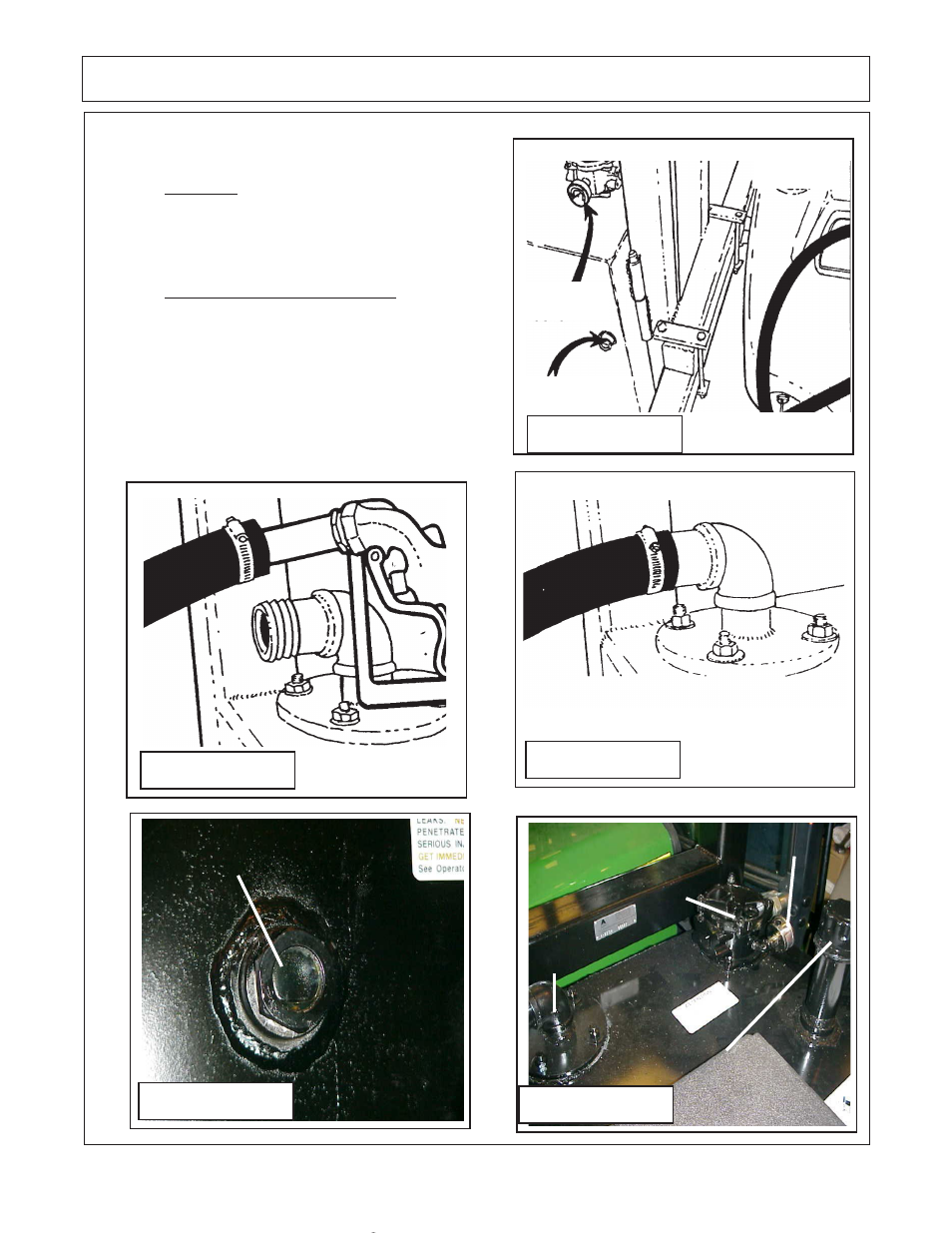

Fill Hydraulic Tank
Fill Hydraulic Tank with Oil:
5. Fill Tank. Fill the Hydraulic Tank (See Figure
4) Fill tank till the Oil is visable in the sight Gauge (See
Figure 5 & 8). This will fill tank for the start but it will
have to filled again later.
6. Fill Suction Hose with Oil. Remove the
Suction Hose at the Tank (See Figure 6) and fill the
hose with clean oil, THIS IS A MUST DO. The Suction
Hose must be filled with Oil to prevent Dry strat up of
Pump. Dry start up of PUMP will damage the Pump.
After filling suction Hose reinstall it and tighten down
Hose Clamp. (See Figure 7)
FIGURE 7
FIGURE 9
FIGURE 6
FIGURE 8
Sight Gauge
Suction Line
Filler Cap
Return Filter
Return Pressure Gauge
Pressure
Gauge
Sight Gauge
FIGURE 5
