Alamo DSEB-D16 - Manual (Page 91)

A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03
© 2003 Alamo Group Inc. Section 9 - 8
Ph
Wire Harness / Valve Mounting 2 WD & 4 WD
Installing Wire Harness
To Valve:
1. Wire Harness From Cab to Front.
The wire harness runs out the bottom of the
Cab on the right hand side. Run Harness
along RH Frame rail of Tractor to the front of
the Tractor (See Figure 19). Note the wire
harness runs along with the hydraulic Hose
from the Tractor Stack Valve to the front of
the tractor. Do Not tie the Harness or Hoses
to the Tractor frame rail at this time.
2. Wire Harness & Front Rail Support.
The wire harness runs behind the front rail
support on the RH side along side the hoses
from the rear Tractor Stack valve. (See Fig-
ure 20). Do not tie any hoses or wire harness
at this time. Run Wire Harness along the
front RH side untill it reaches the front of the
Tank (See Figure 21)
4. Gaskets on Valve Terminals. There
are 5 wire terminals on Valve, A Gasket will
have to installed on each one. These gas-
kets will only fit one way, there are 4 slots in
gasket. 1 Slot is wider than the other 3, align
these slots with correct terminal on Valve.
(See Figure 22 & 23). These Gaskets must
be used.

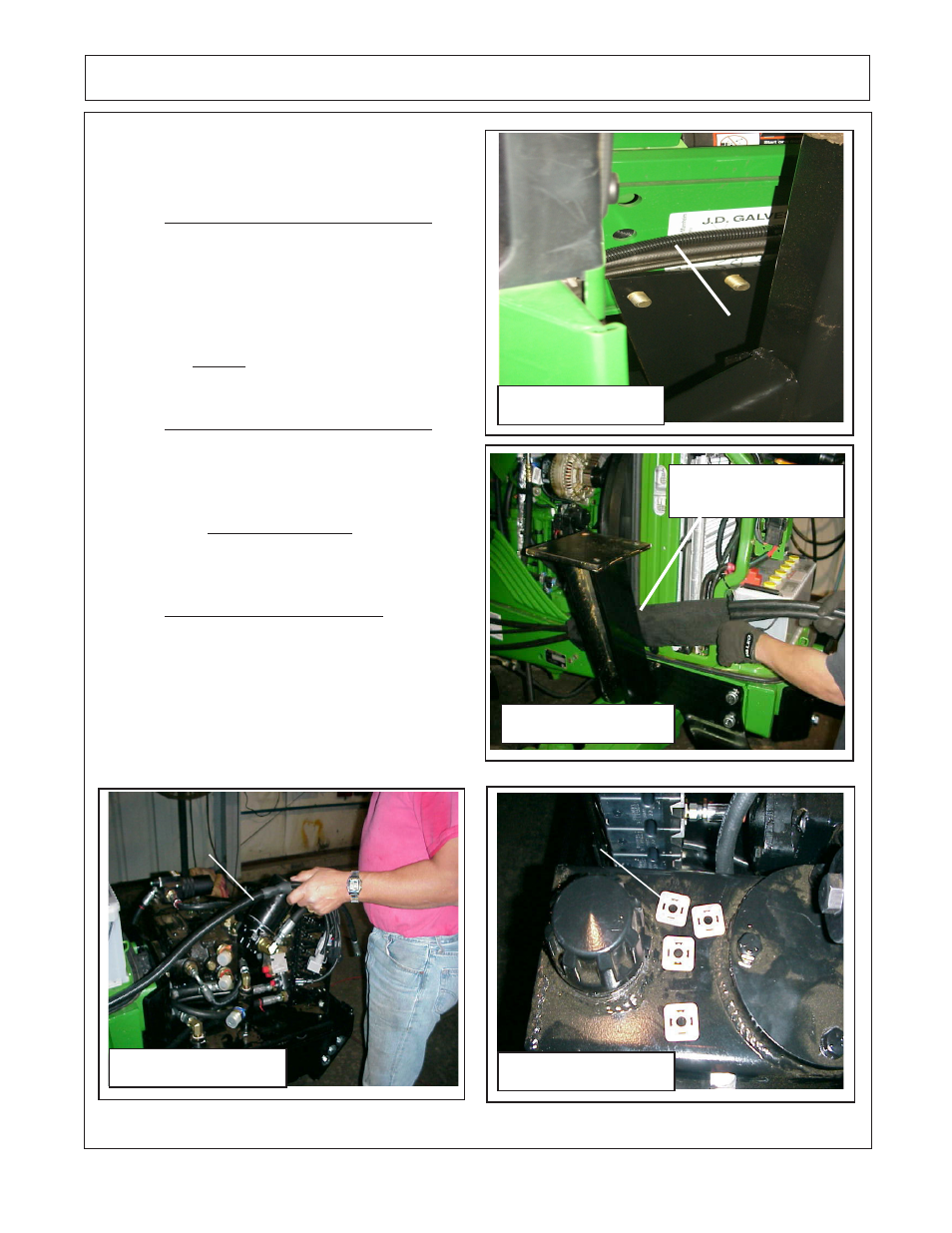

FIGURE 19
FIGURE 20
FIGURE 21 FIGURE 22
Plug
Gaskets
Wire
Harness
Run Wire Harness
behind frame support
Wire Harness runs along
Tractor Frame Rails
