© 2003 Alamo Group Inc. Section 5- 3
A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03
Frame Rail Installation
Re-Install Frame Rails to Tractor:
(continued)

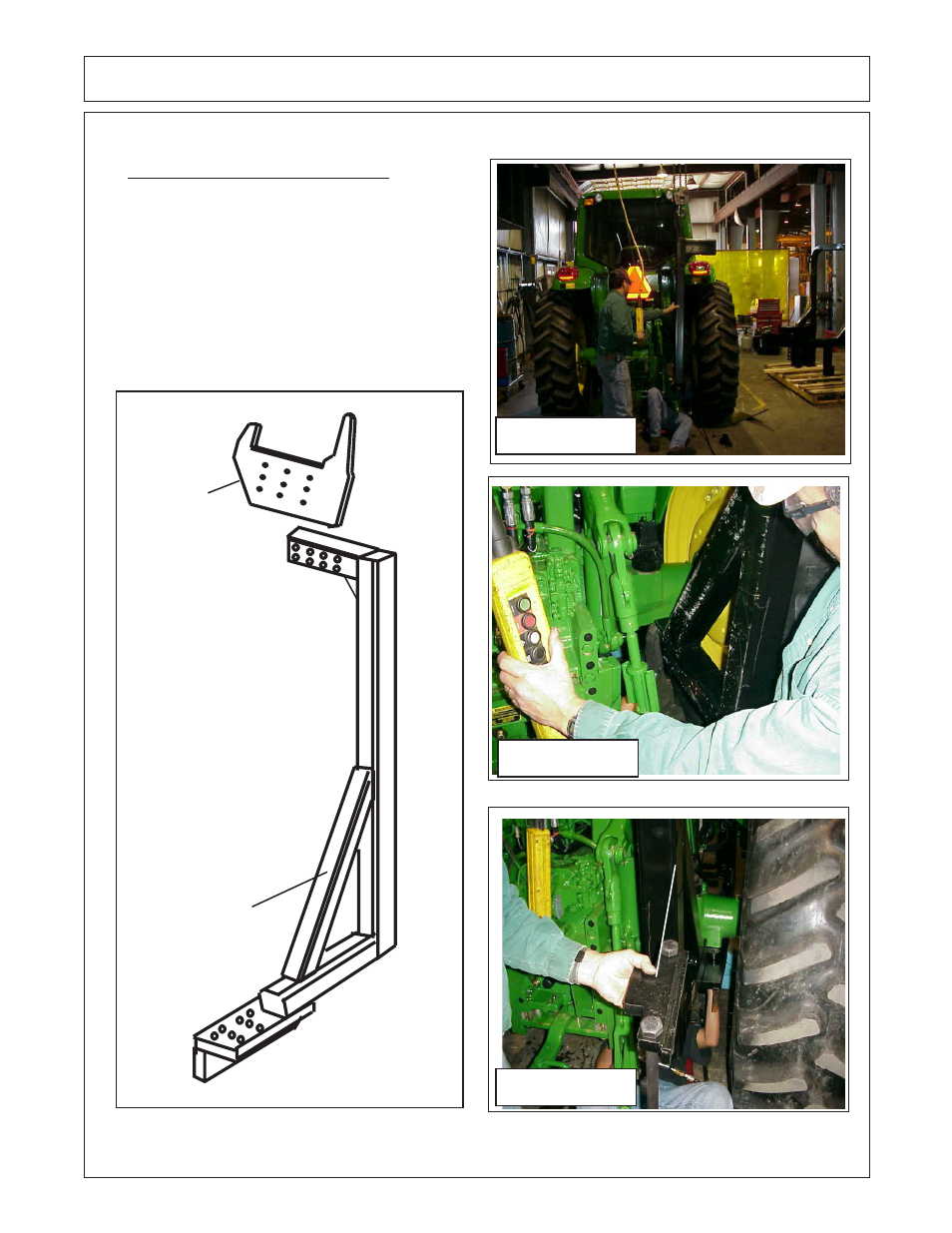

5. Install Axle Mounted Boom Rest. This will
require two people, one to align the Boom rest with
the Hoist and one to align the Bolt holes on the
bottom to start them into the Axle Housing. (See
Figure 5, 6 & 7)
When the Bolts are installed into the Frame
Rail & Boom Rest Plates and snugged up to Axle
housing, install the RH Axle Mounting Strap (See
Figure 8, 9 & 10). Do not tighten Bolts snug them
only for now.
Figure 5
Figure 6
Figure 7
Boom Rest
Weldment
Figure 8
Boom Rest
Plate
Cab
Side
of
Boom
Rest
RH Axle Strap
Boom Rest
Back
Front
Right
Rear
Wheel
Side
of
Boom
Rest
