A-Boom (JD 6615 / 7615 Asy Instruction Manual) 07/03
© 2003 Alamo Group Inc. Section 4 - 4
Frame Rail Installation

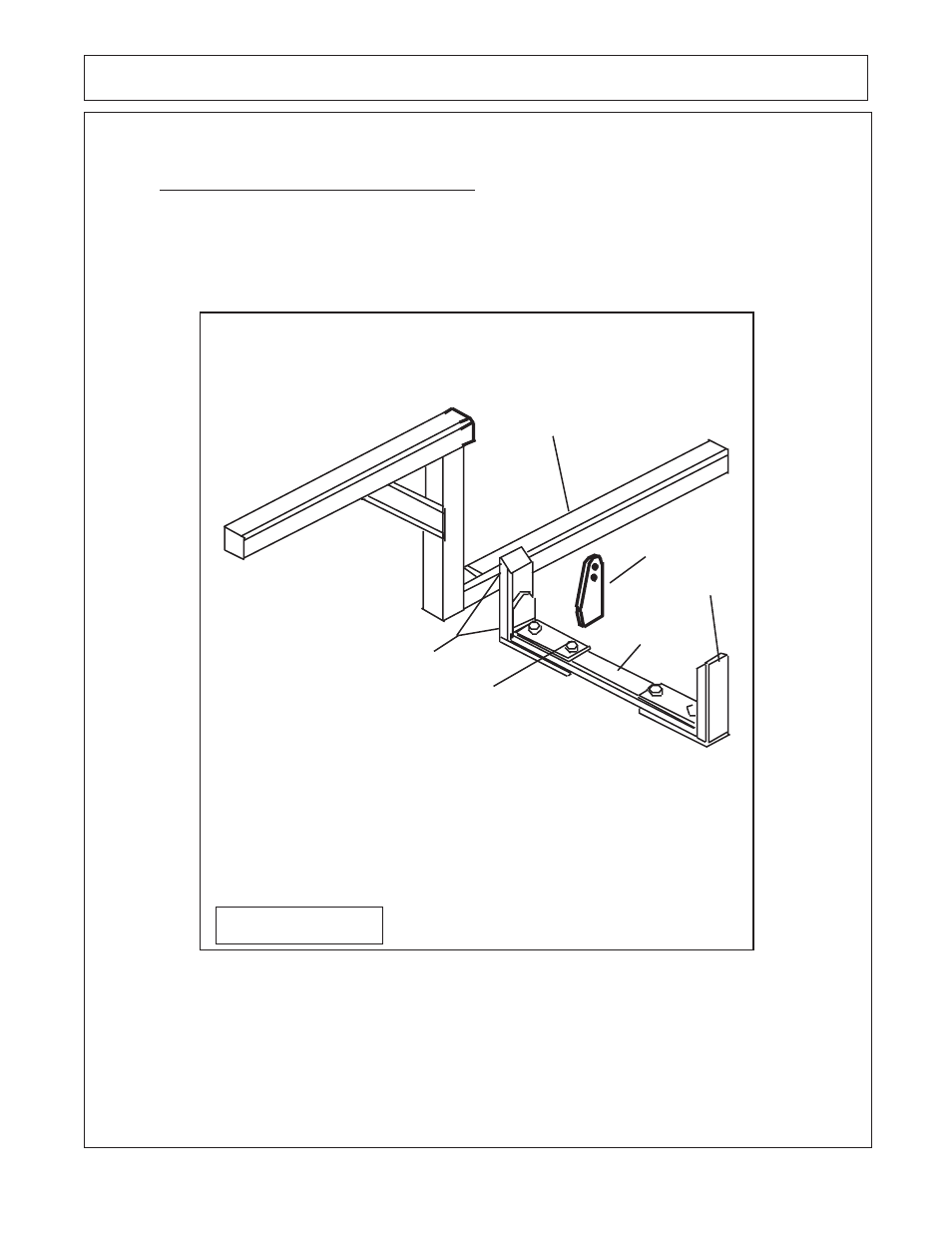

Frame Rail Stiffener Kit (Crossmember). Shown below is the Frame Rail Stiffener Kit. This
mounts under the Tractor and will be added to the Frame Rails during Assembly. Item 5 Rail Support
Gussets are shipped loose and are not part of the Assembly, they will be bolted to the tractor and when
instructed you will need to weld the Frame Rail Support to them (See Figure 2).
Frame Rail Pre-Assembly: (continued)
Frame Rail, RH Shown
1
2
3,4
Frame Rail Stiffener Kit
(Crossmember)
Item Part No. Qty Description
02970118 -- Frame Rail Stiffener Kit (Item 1 thru 4)
1 02970115 2 Rail Stiffener Weldment
2 02970086 1 Tube, Rail Stiffiner
3 02712500 4 Bolt, 1" NC X 4" GR8
4 5JRC1680 4 Locknut, 1" NC (Toplock)
5 02978499 2 Gusset Rail Support
5
Frame Stiiffener Kit
Figure 2
