A-Boom (JD6615 / 7615 Asy Instruction Manual) 07/03
© 2003 Alamo Group Inc. Section 10 - 6

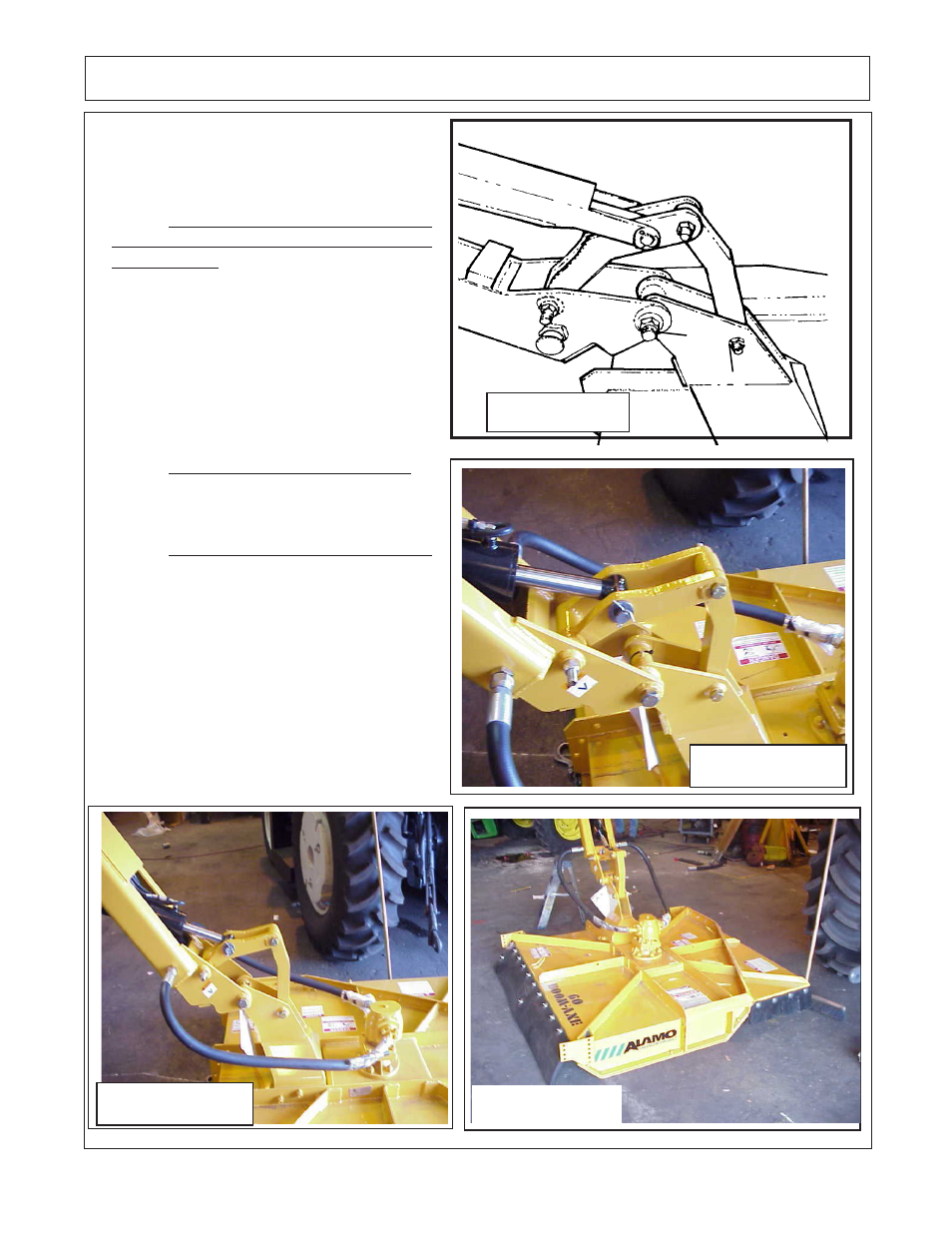

Optional Mower Head Installation
X-Frame Square Head
Attachment:
1. With a forklift or hoist, lower the
Boom Weldment down on the X-Frame
Square Head. Align the Boom Weldment
with the X-Frame Square Head Hitch Post.
Insert special bolts 1" x 9" (item 1) and item
2, 3/4" x 5-1/2" into Boom Weldment and
Hitch Post. Attach nuts 1" (item 3) and item
4, 3/4" to bolt and tighten securely. Note:
Additional support may be needed at the
end of the Boom to aid in installation. Fig-
ure 7.
2. Connect the Pivot Hitch toMower as
shown in Parts and Assembvly Manuals.
(See Figure 8)
3. Connect Hoses to Mower Head.
Connect Hoses as shown (See Figure 8 &
9) Boom to Mowers , Do Not Start tractor
untill the hydraulic Tank has been filled, Go
to Hydraulic Tank Fill Section now. After Oil
has been fill Start Tractor and run the Hy-
draulic System through its funtions as out-
lined in the Oil Fill Section. NEVER Start
Tractor without Oil in system (Oil level to
Sight Glass) it will damage the Hydraulic
System if you do.
Figure 8
Figure 8 Figure 9
FIGURE 30
2,4
1,3
Figure 7
