8. Installation
70

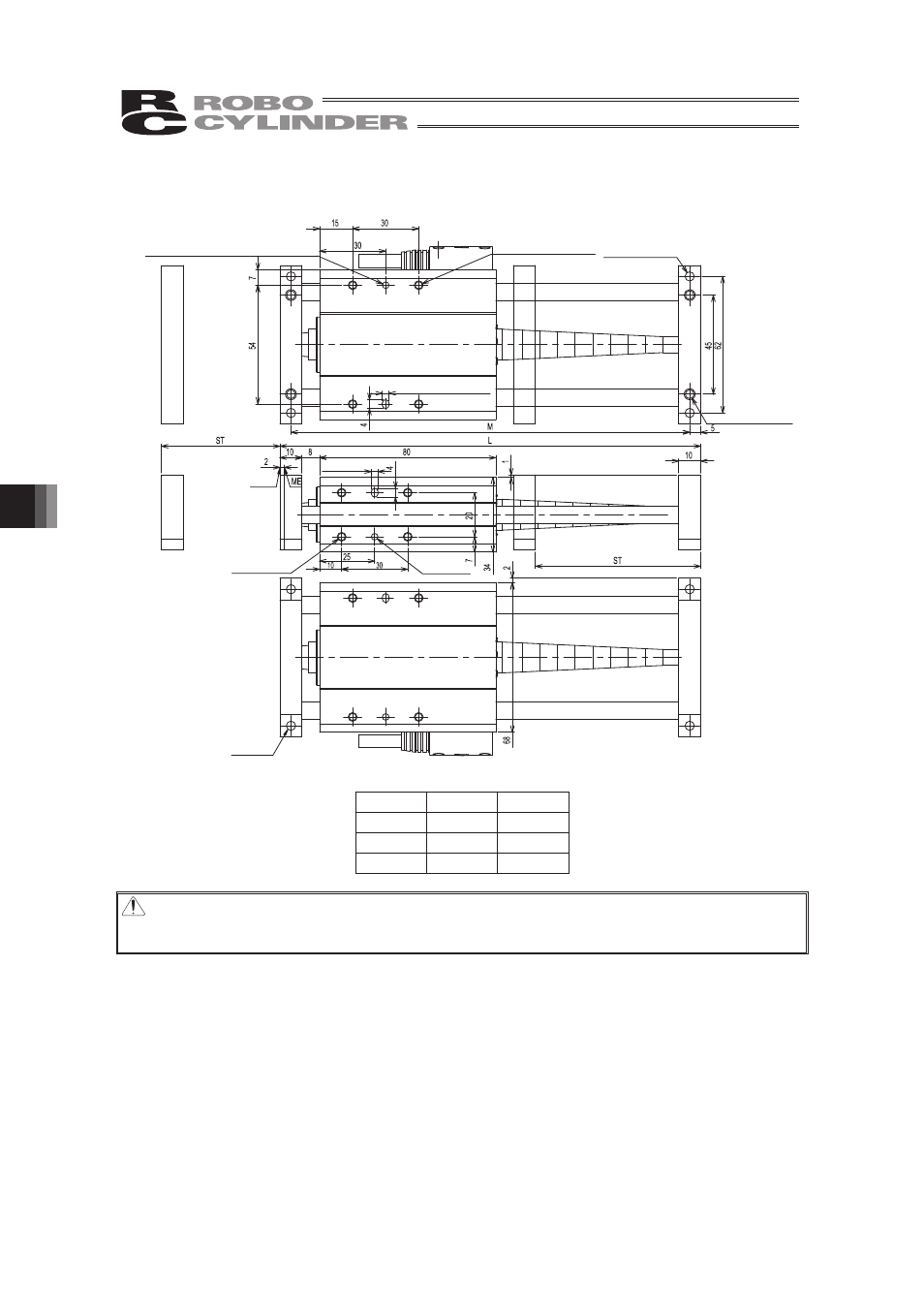

Ɣ SD4NA, SD4N (Lead screw, ball screw),
The actuator is structured in such a way that it can be affixed on any of its three sides.
2-φ3 depth 3 (same on opposite side) +0.03
0
2×4-M4, depth 8
(same on opposite side) 2×2-M5, depth 10
2-3 depth 3 (same on opposite side) +0.05
0
2×2-φ4 H7, depth 5
4-M4, depth 8
2×2-φ4.2
φ 3 depth 3 +0.03
0
3 depth 3 +0.05
0
Home
ST L M
25 141 131
50 166 156
75 191 181
Caution : Some tapped mounting holes are through holes. Never use long screws exceeding
the effective thread length. Such long screws may damage the internal mechanism
or electrical parts.
