Density Gage Manual 012407 44

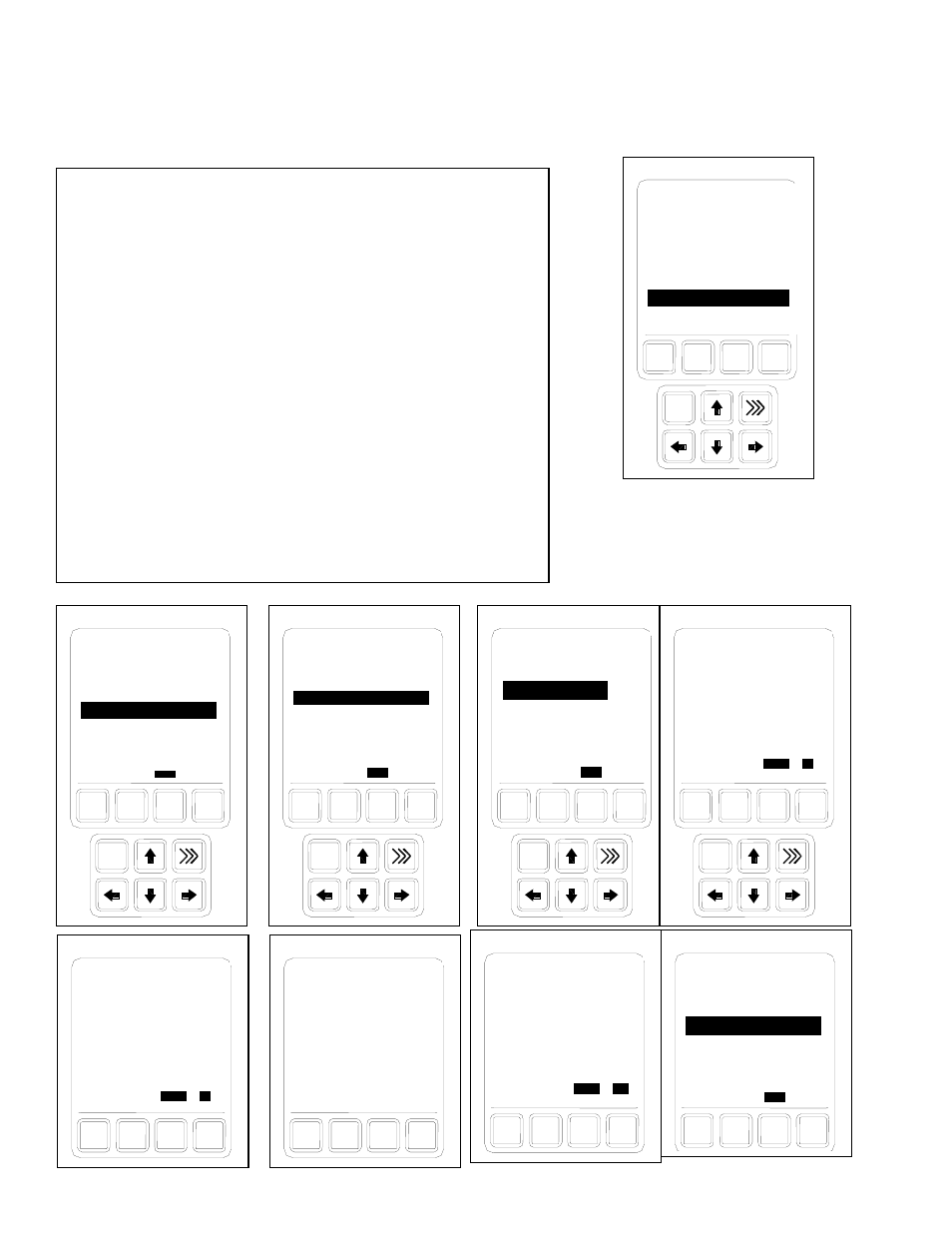

Quick Start Reference – Calibrating Density
(For Completing a Dual-Point Calibration)
C
F1 F2 F3 F4
Ronan Engineering
X96S Density Gage
Main Menu
Variables
Status Display
Configuration
Digital Outputs
Digital Inputs
→Calibration .
Diagnostics
Step 4 ‘High Density’ Calibration
(Have the process ready in the calibrate condition)
Scroll down ↓ to “Calibration” Press → to enter menu
Scroll down ↓ to “Calibrate” Press → to enter menu
Scroll down ↓ to “High Calibrate” Press → to enter menu
Select “Calibrate” Press → to enter menu
Read the next 3 screens carefully and acknowledge each screen by
pressing the F4 Key until you see the calibrate measurement taken.
(This may take several minutes)
Press the F4 Key again.
Scroll down
↓ to “Cal Density” Press → to enter menu
Notice the value that is displayed.
Use
← Key and → Key to toggle back and forth between digits.
Change the value using ↑ or ↓
Enter the value of the process (Example 1.1000 SG).
Press The F4 Key to enter and store the value.
Press ←Key TWO TIMES to get back to the Calibration Menu.
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
High Calibrate
→Calibrate
.
Cal Density 2.0000
Cal Cap 10000
1/uT 0.825000
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Calibration
State Fully Calibra
Ref Constants
→Calibrate
.
Last Ref.Date 03/22
Last Ref.Time 0912
Loop Config
Aux Loop Cfg
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Calibrate
Low Reference
→High Calibrate .
Manual Entry
Clear Ref/Cal
Temp Reference
Pressure Ref
Auto Reference
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
High Calibrate
WARNING – Remove
loop from automatic
control before doing
reference procedure
ABORT OK
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
High Calibrate
Verify that source
is on, detector
output is correct,
and process is in
calibrate condition
ABORT OK
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
High Calibrate
Performing calibrate
procedure ... take
grab sample now
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
High Calibrate
Calibrate
measurement taken.
Remember to enter
sample density.
ABORT OK .
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
High Calibrate
Calibrate
→Cal Density 2.0000
Cal Cap 10549
1/uT 0.857430
HOME
