Configuration
Operation Operation
D1 Config 3
D2 Config 3 Filtering Filtering
Proc Temp Config Empty Clamp
Pressure Config Detector Fault Type RC
Head Temp Config Linearization Dyn Track [enable/disable]
Alarms 3 Temp Comp Sigma [value]
Hardware 3 Pressure Comp Fast TC [s]
HART Scan Time [ms] Fast Counter [value]
System Medium TC [s]
Proc Temp Config Slow Counter [value]
Slow TC [s]
Temp Units [°C/F/R/Kelvin] Noise Filter [value]
Low Range [value] Monitor [track value]
High Range[value]
Empty Clamp
Pressure Config
Empty Clamp [enable/disable]
Pressure Units
[psi;bar;g/Sqcm;kg/Sqcm;pa;kPa
;atm]
Off Time [seconds]
Low Range [value] Rcvry Time [seconds]
High Range [value] Min Counts [value]
Max Counts [value]
Head Temp Config
Linearization
Temp Units [°C/F/R/Kelvin]
Low Range [value] Linearize [enable/disable]
High Range [value] Clear Table
Config Linearize
HART
Config Linearize
Tag Name [name]
MultiDrop [addr]
Table Entry # [number]
Univ Rev [rev] Entry Used [indicator]
Spec Rev [rev] Measured [value]
Actual [value]
Set Entry
System Remove Entry
Serial # [number] Temp Comp
Hardware Rev [rev]
Software Rev [rev]
Temp Comp [enable/disable]
Date [date] Temp Units [units]
Hour (0-23) [hour] A Coeff [value]
Minute [min] B Coeff [value]
Password Enter Temp
Date/Time Format [sel] Temp Auto Cap [enable/disable]
Last Ref. Temp [°F]
Pressure Comp
Pres Comp [enable/disable]
Pressure Units [units]
A Coeff [value]
Enter Pressure [value]
Pres Auto Cap [enable/disable]

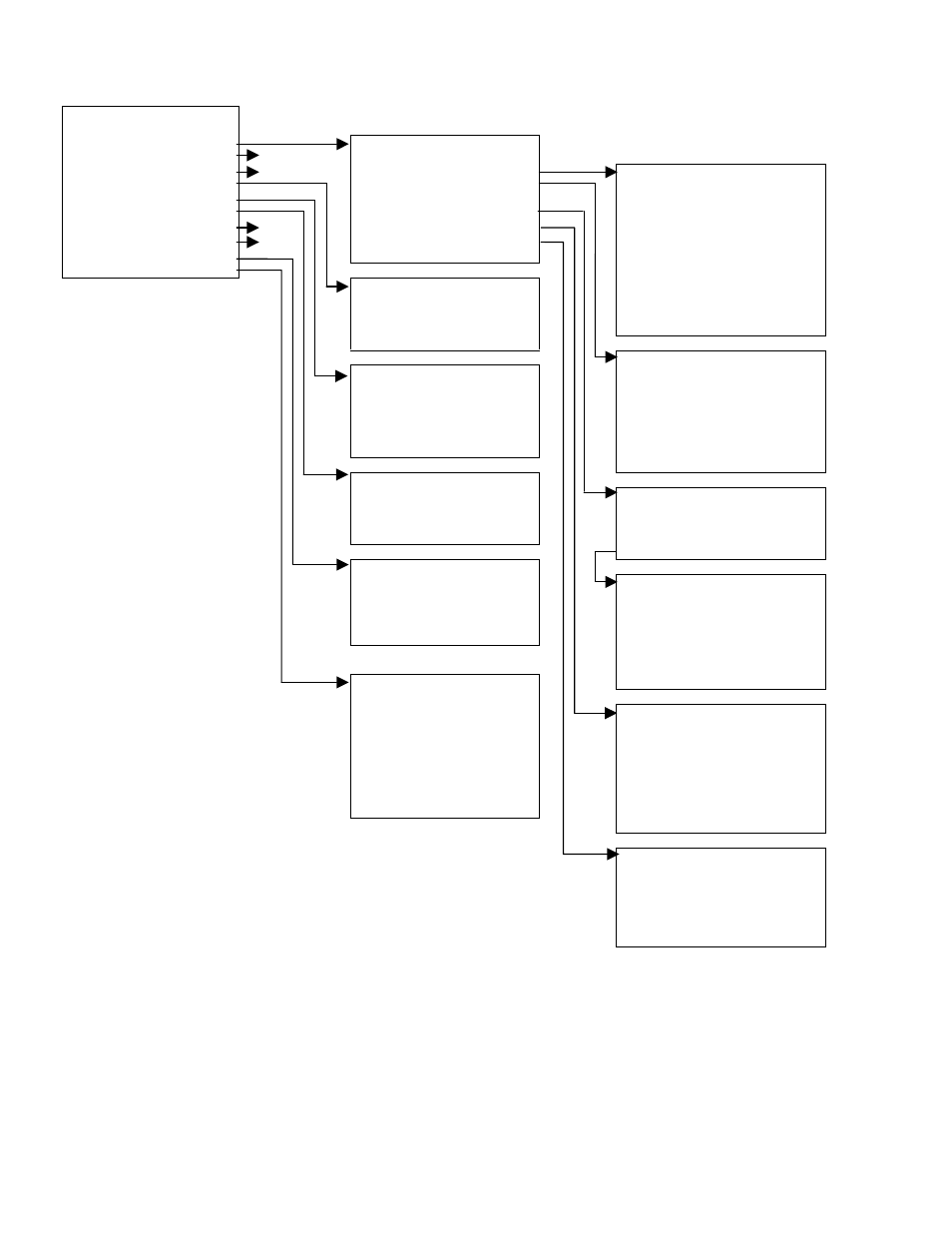

Figure 3-2 – Configuration Menus (1 of 3)
