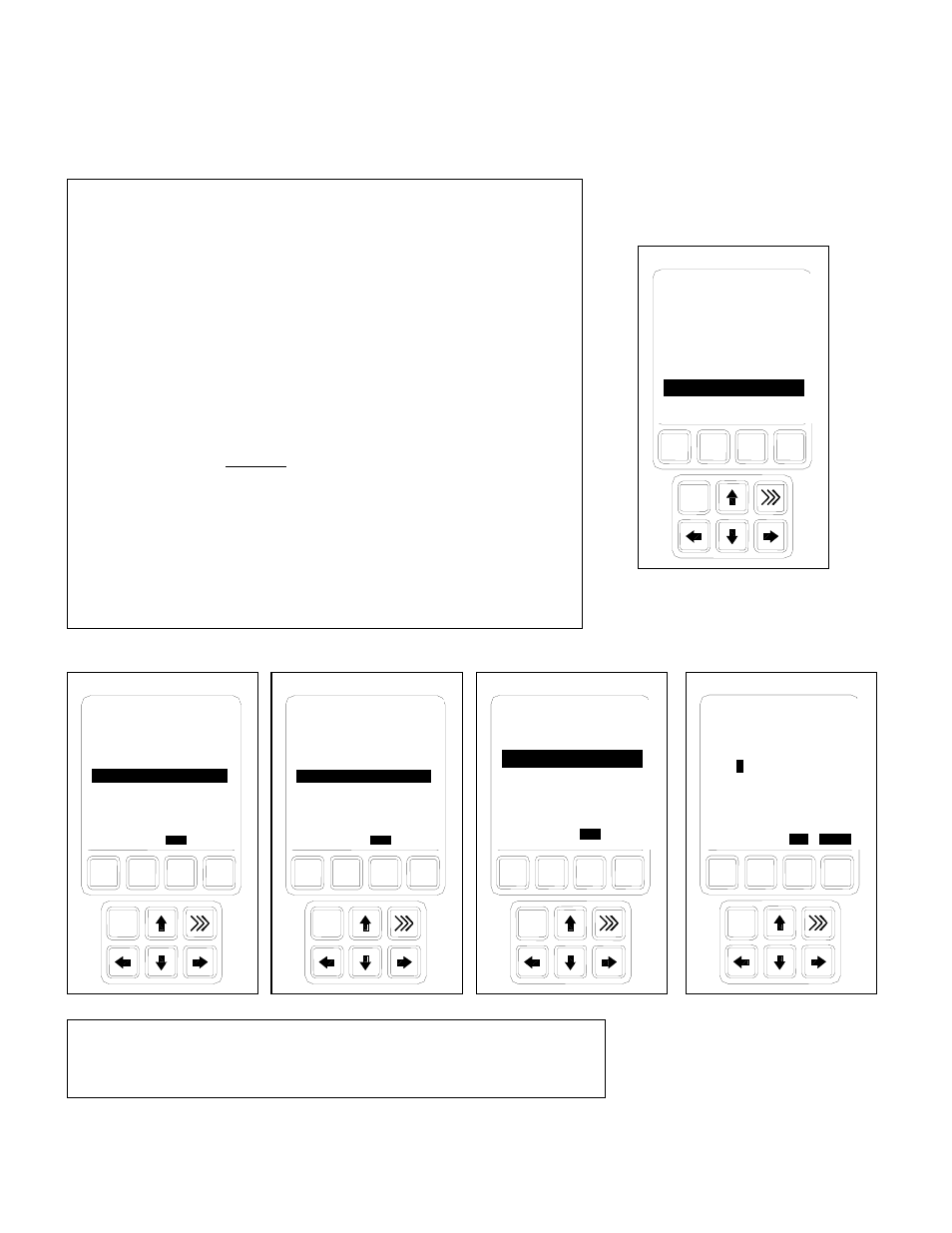

Quick Start Reference – Calibrating Density
(For adjusting the 1/uT or Transmission Constant)
The quick start calibration is now complete. For further help and
instructions with calibration please refer to the calibration section or
troubleshooting guide in you manual.
C
F1 F2 F3 F4
Ronan Engineering
X96S Density Gage
Main Menu
Variables
Status Display
Configuration
Digital Outputs
Digital Inputs
→Calibration .
Diagnostics
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Calibration
State Fully Calibra
Ref Constants
→Calibrate .
Last Ref.Date 03/22
Last Ref.Time 0912
Loop Config
Aux Loop Cfg
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Calibrate
Low Reference
High Calibrate
→Manual Entry .
Clear Ref/Cal
Temp Reference
Pressure Ref
Auto Reference
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S Density Gage
Manual Entry
→1/uT 0.8250 .
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S Density Gage
1/uT
0.8250000
1.
0 416667
ESC ENTER
Step 4 High Cal Density Calibration (Manual Entry)
Scroll down ↓ to “Calibration” Press → to enter menu
Scroll down ↓ to “Calibrate” Press → to enter menu
Scroll down ↓ to “Manual Entry” Press → to enter menu
Select “1/uT” press → to enter menu
Notice a value is displayed.
The transmission constant can be manually calculated and entered
using the following formula: 1/uT
Where: u = absorption coefficient = 0.16 (using RLL Sourceholder)
T = pipe diameter in inches
Example: 6” pipe ___1___
(.16) (6) = 1.041666
Use ← Key and → Key to toggle back and forth between digits.
Change the value using ↑ or ↓
Enter the calculated 1/uT value - (example above 1/uT = 1.041666)
Press the F4 Key to enter and store the value.
Now press the >>> Key to show your status display.
