Density Gage Manual 012407 42

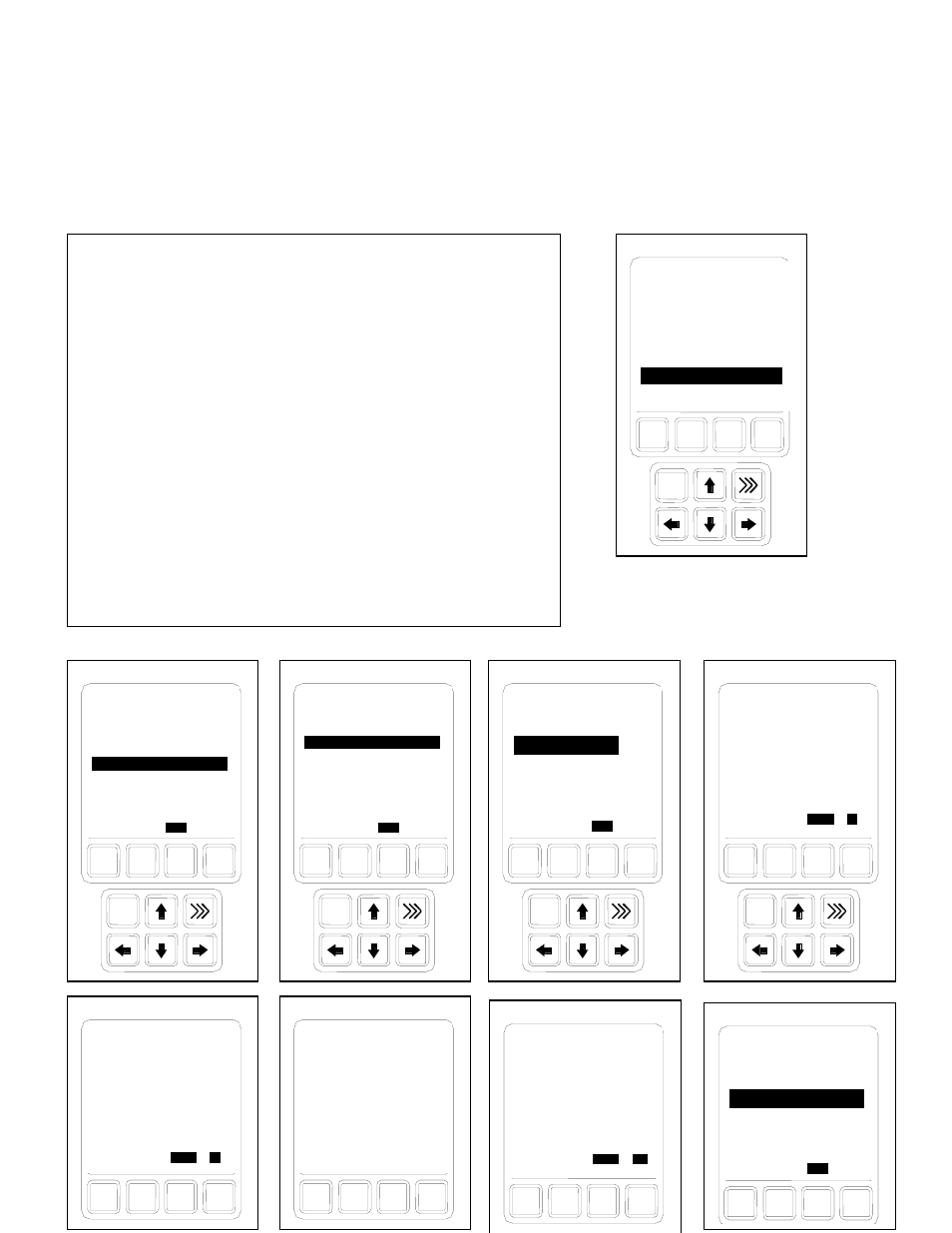

Quick Start Reference – Calibrating Density
(For Completion of a Single Point Reference)
C
F1 F2 F3 F4
Ronan Engineering
X96S Density Gage
Main Menu
Variables
Status Display
Configuration
Digital Outputs
Digital Inputs
→Calibration .
Diagnostics
Step 3 ‘Low Reference Density’ Calibration
(Have the process ready filled with water)
Scroll down ↓ to “Calibration” Press → to enter menu
Scroll down ↓ to “Calibrate” Press the → to enter menu
Scroll down ↓ to “Low Reference” Press the → to enter menu
Select “Reference” press → to enter menu
Read the next 3 screens carefully and acknowledge each screen by
pressing the F4 Key until you see the reference procedure was a
success. (This may take several minutes) Press the F4 Key again.
Scroll down ↓ to “Ref Density” Press → to enter menu
Notice the value that is displayed.
Use
← Key and → Key to toggle back and forth between digits.
Change the value using ↑ or ↓
Enter the value of the process (Example 0.0000 %Solids for water).
Press The F4 Key to enter and store the value.
Press the F3 Key (Home) to return to the Main Menu.
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Low Reference
→Reference
.
Ref Density 0.0000
Ref Cap 20000
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Calibration
State Fully Calibra
Ref Constants
→Calibrate .
Last Ref.Date 03/22
Last Ref.Time 0912
Loop Config
Aux Loop Cfg
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Calibrate
→Low Reference .
High Calibrate
Manual Entry
Clear Ref/Cal
Temp Reference
Pressure Ref
Auto Reference
HOME
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Low Reference
Verify that source
is on, detector
output is correct,
and process is in
reference condition
ABORT OK
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Low Reference
Performing reference
procedure ... take
grab sample now
C
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Low Reference
WARNING – Remove
loop from automatic
control before doing
reference procedure
ABORT OK
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Low Reference
Reference procedure
SUCCESS. Remember to
enter sample
density.
ABORT OK .
F1 F2 F3 F4
Ronan Engineering
X96S
Density Gage
Low Reference
Reference
→Ref Density 0.0000
Ref Cap 18754
HOME
