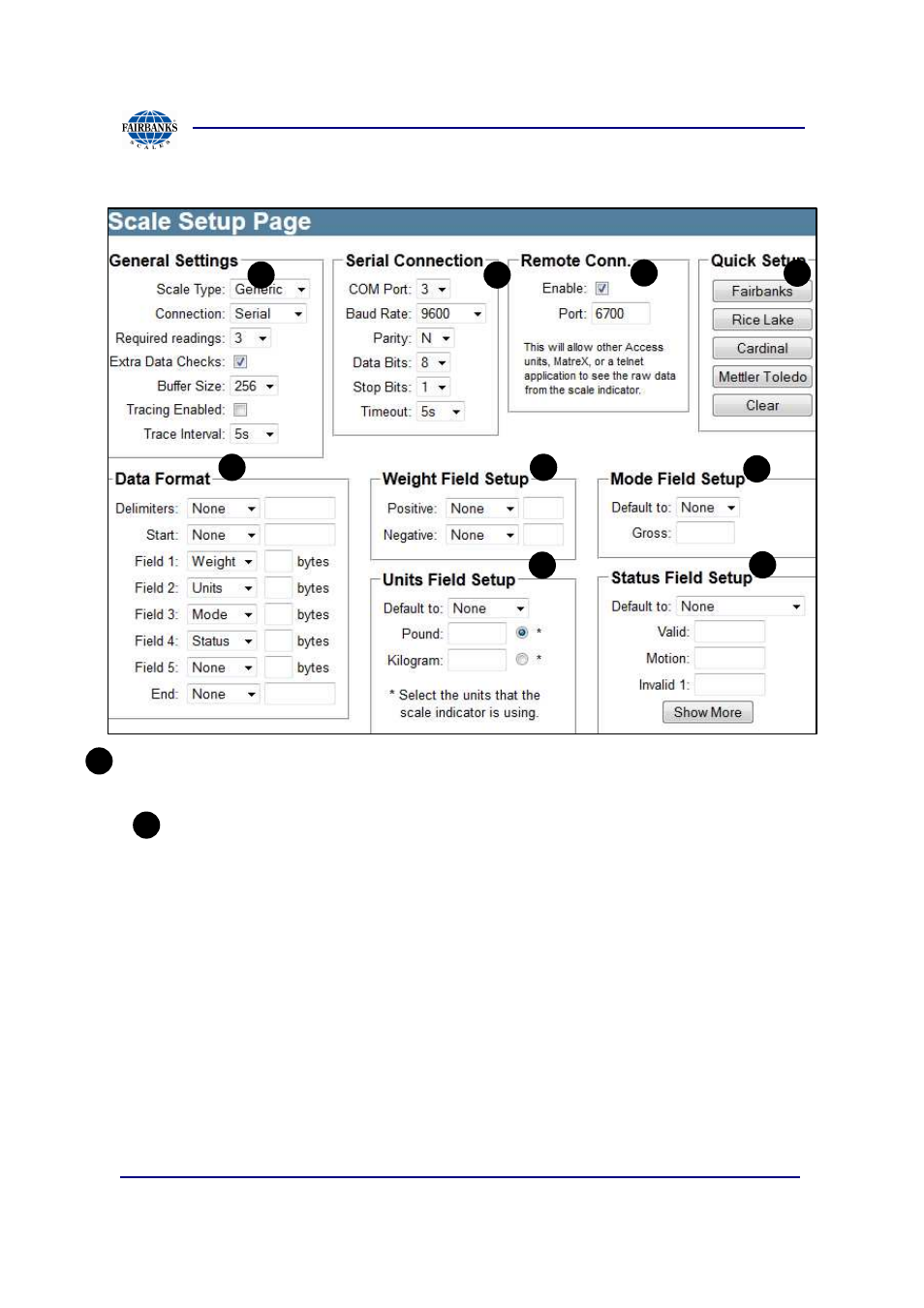

3.3.6. Scale Indicator Setup
General Settings
• Scale Type: For all connections to a scale, use the Generic type.
• Connection: Select serial for direct connection from FBAS terminal to scale
indicator, Select Network for connecting to another unit or a device extending
scale data via TCP/IP communication. *Note the top central area changes
options from Serial Connection to Network Connection, the above shows the
more common Serial Connection.
o
Serial Connection
COM PORT: Select the serial port that the device is connected
to. Available for scale RS232 serial data includes COM 4,3,2.
BAUD Rate: Select baud for the serial communication to device
Parity: N - none, O - odd, E - even, S - space, M - mark
Data Bits: Number of data bits in the serial communications.
