Section 3: Access Terminal Screens Defined

01/13

78

51299 Rev. 1

3.3.2. Input/Output Setup, Continued

IO Source: Select the input source that you want to configure from the

selection of configured tabs. The number of inputs will vary based on the IO
source.

Input Label: Enter a brief label. This will be displayed on the diagnostic page

and any drop-down lists for selecting inputs.

Assigned: Check this option if the input is assigned to an action. It is

recommended to check this setting whenever the input is being used. The
input should also be given a short label as well. Once “assigned”, then the
label will be used instead of just the generic “Input 1” in dropdown lists.

Inverted: If the input is inverted, enable this option to invert it back. For

example, if the input is normally on and turns off during an action, then enable
this option so that the input will be normal (normally off).

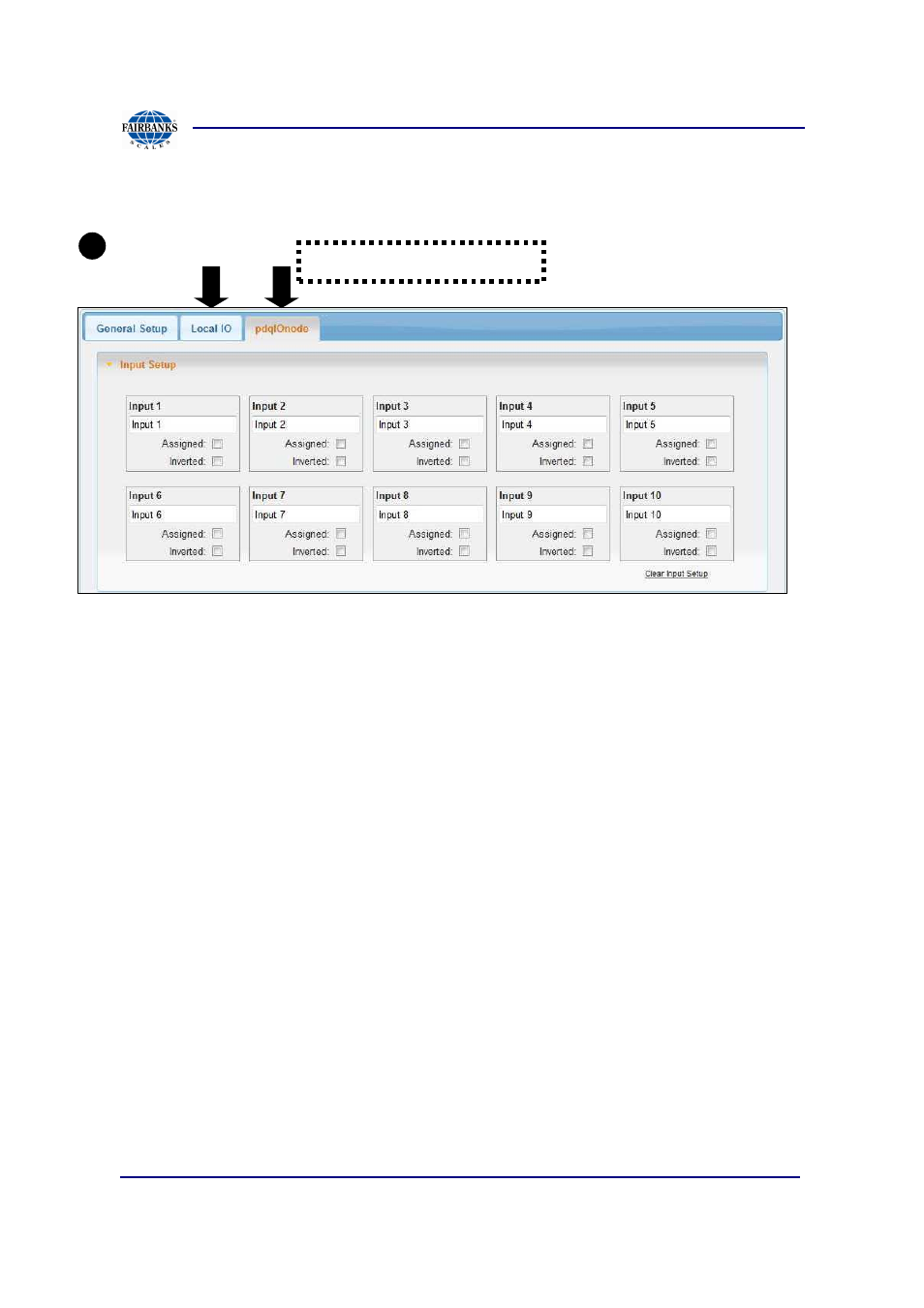

Input Setup

B

IO Source tab selection
