XPS-16 Auto Measurement Features
Your XPS-16 has many features so carefully designed and engineered that you may not even be
aware of their uniqueness. Once the cycle start button has been pushed, your Darex XPS-16 be-
gins taking measurements of the drill, on the way to the grinding wheel. Your XPS-16 locates the
end of the drill, calculates diameter, locates and positions the cutting edge, determines web thick-
ness, identifies initial contact point of drill to the wheel and then sharpens. After sharpening and
before splitting the drill, your XPS-16 sharpener again measures and re-locates the end of the
drill, ensuring an accurate split.
Specifications
•
Standard Grinding Wheels:
180
Grit CBN - HSS, Cobalt & 220 Grit DIA - Carbide
•
Operating temperature:
Not less than 7°C (45°F) or more than 32°C (90° F)
•
Motor Specs:
BLDC motor 115/230 V RPM 3800-3900 50/60 hz
•
Power requirements:
8 amp @ 115 V; 4 amp @ 230 V
•
Machine Dimensions:
66cm W x 56cm D x 30.5cm H (26” W x 22” D x 12” H)
•
Machine Weight:
52 kg (115lbs)
•
Shipping Dimension:
78cm W x 89cm D x 45cm H (31” W x 35” D x 18” H)
•
Vacuum Dimensions:
36cm D x 49cm H (14” D x 18” H)
•
Vacuum Weight:
14 kg (30lbs)
•
Total Ship Weight:
66 kg (145lbs)
•
Warranty:
1 year defective parts and labor

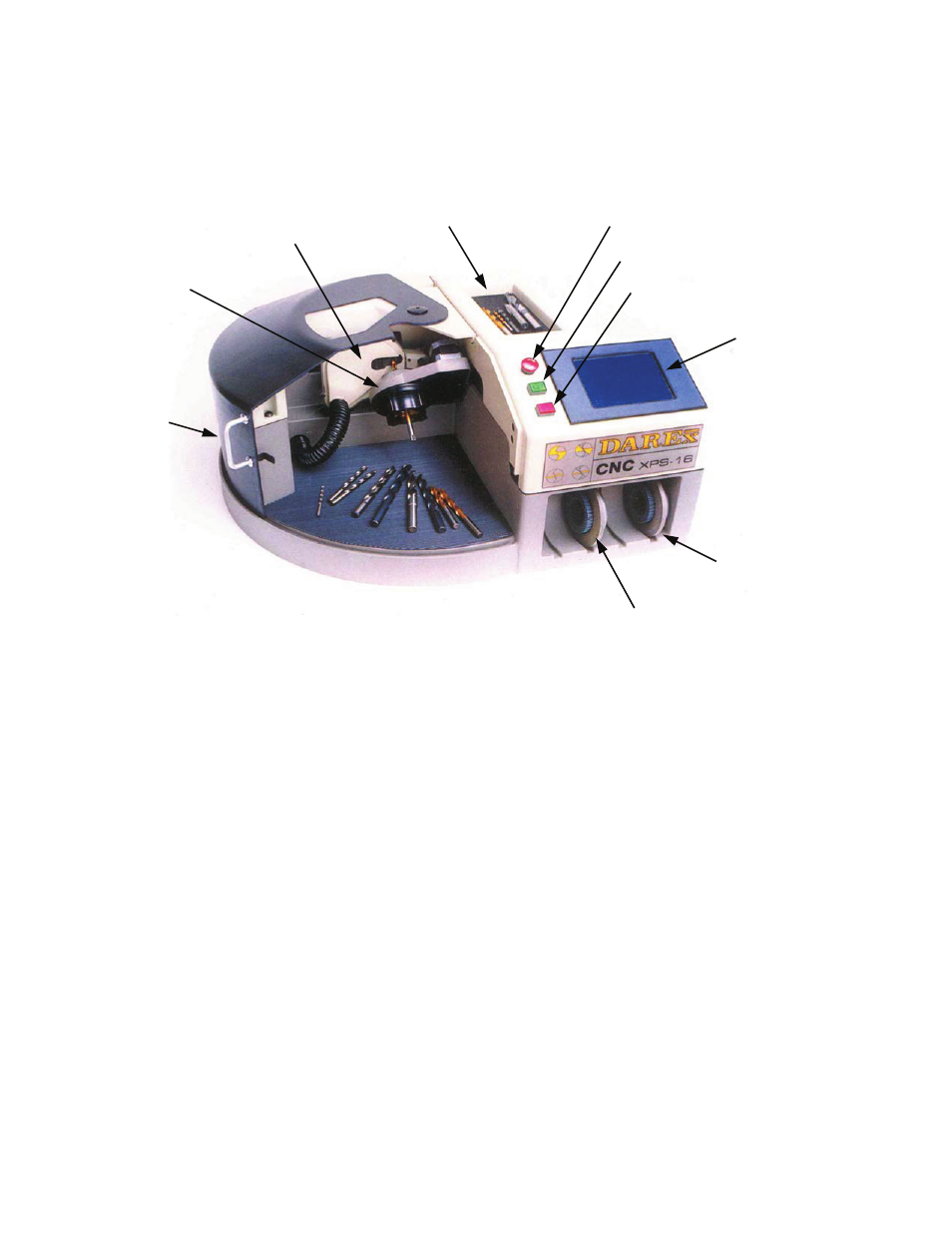

CNC
XPS-16
DRILL SHARPENER
LCD TOUCH SCREEN
EMERGENCY STOP
CYCLE START
CYCLE STOP
GRIND WHEEL STORAGE
DRILL HOLDER
CHUCK
DOOR
GRIND WHEEL
WHEEL GUARD COVER
XPS-16 Specification Sheet
