28

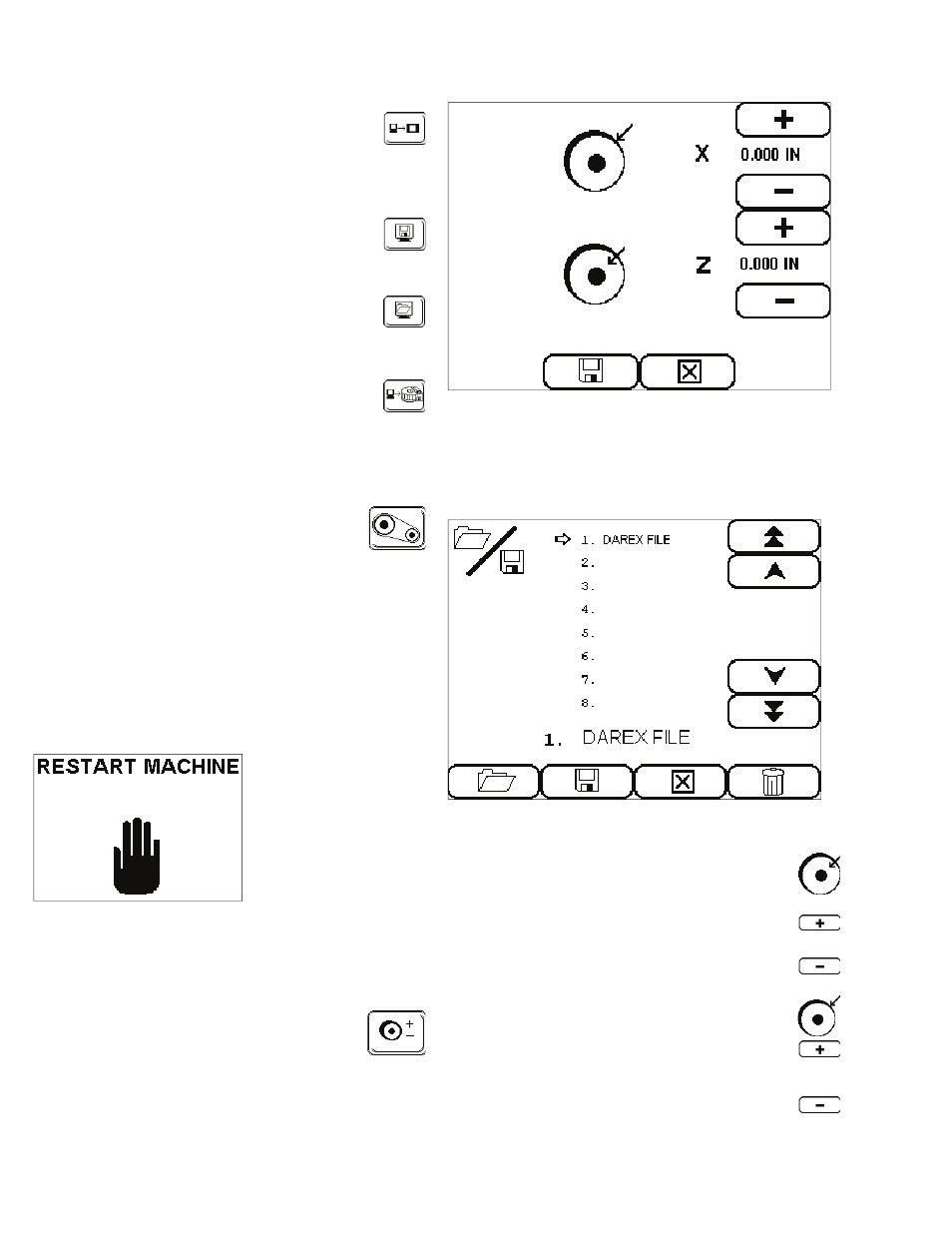

Download Screen
UI Update Button – From PC to XPS-
16
Upgrade your USER INTERFACE software by
touching the “UI update” button.
File Down Load Button
File Down Load button - To PC From XPS-16
Send and store your custom files to your PC
File Restoration Button
File Restoration button - From PC To XPS-16
Restore saved custom files from your PC.
Controller Update Button
Controller Update button - From PC to XPS-
16
Update Controller software
Belt Change Screen
Selector
• When selected, the machine will move the
grinding wheel assembly correctly into position
for easy access to adjust or change the grind
motor belt. Touch the “BELT CHANGE” button.
The grinding wheel will move in to position to
easily access the grind motor belt and pulley.
• The machine will go into an on hold mode and
the motor will shut down.
Restart Machine screen
• Once the “Restart”
icon has come up on
the screen, it is safe to
replace the belt.
• You will have to
power off the machine
and restart to con-
tinue. For more in-
structions on changing the grind motor belt.
Refer to Section 24
Wheel Position Offset Screen
Selector
• Adjust wheel offsets in this screen.
Make slight wheel offset adjustment
after changing to a new or different
wheel. For more information see MTO Calibra-
tion Refer to information on page 59
Wheel Position Offset Screen
• After changing wheels, it may be necessary to
offset the edge and/or the face of the wheel.
See Sharpening Tips on page 61
• After a wheel change, call up the Darex Fac-
tory default file,
sharpen a drill and adjust wheel according to
results produced in this program.
• Verify the amount of material removal
from the end of a drill, if it is incorrect;
offset the wheel “FACE” accordingly,
touch the +Z button , to increase the
amount of material removed from the tip
of the drill or the -Z button , to decrease
the amount.
• Check the centering of the split point, if
off center, offset the wheel “EDGE” us-
ing the +X button , to move the center
split line towards the chisel line on the
drill point, sometimes referred to as un-
der split or the -X button to move it
away, some times called over split.
Touch Screen Details
