User Manual Page 20
7. Disconnect the 2 sets of red and black wires
that go to a connector above the fan on the
back board.

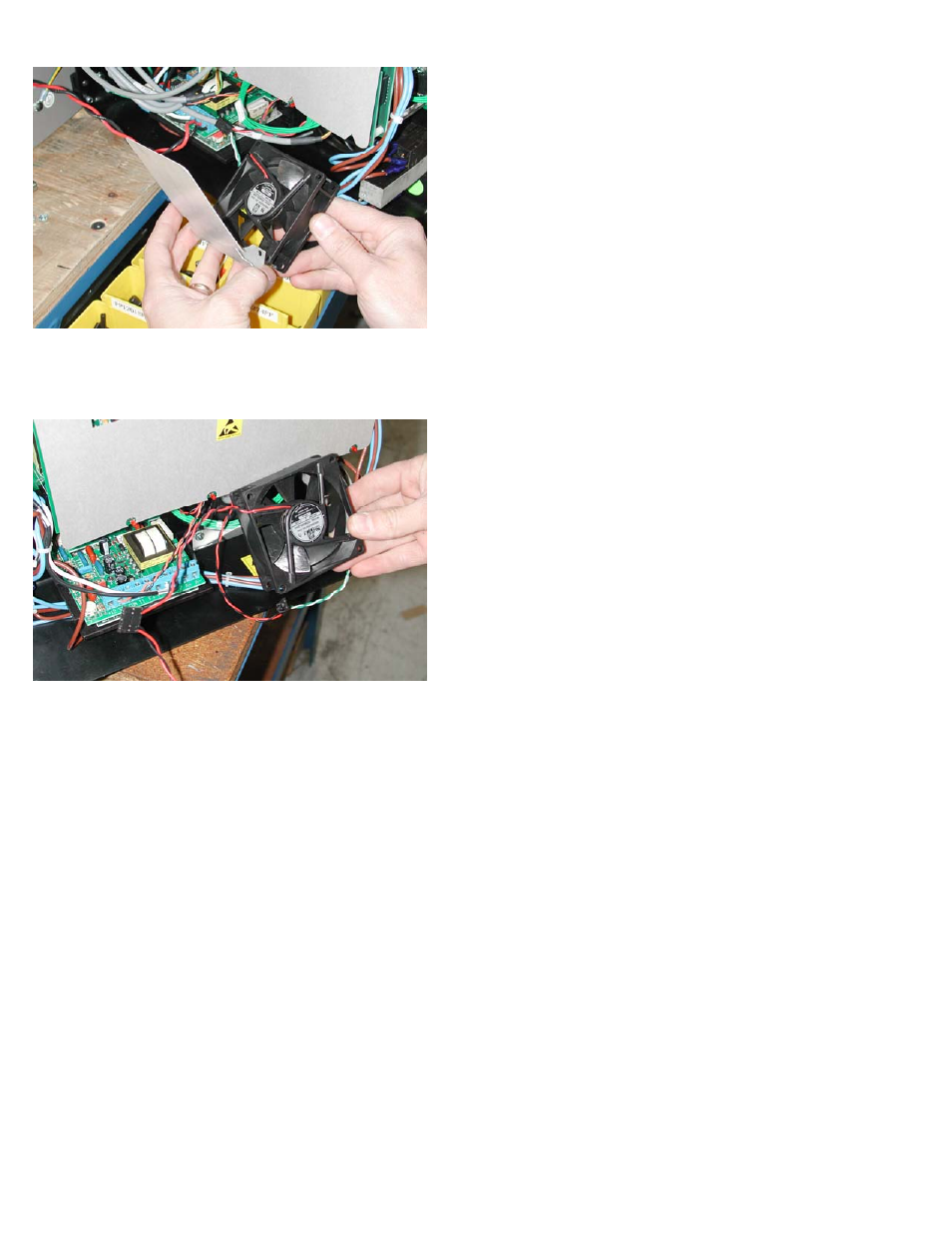

Replace the Cooling Fan
1. Snap the connector with the red and black
wires into the connector above the fan on the
back board.
2. Slip the fan into the panel with the red and
black wires facing you and exiting to the left.
3. Put the 4 screws through the front fan cover
and line up the fan with the screw holes from
the inside. Push the front fan cover flush
against the outside of the panel and the
screws through the fan.
4. Hold the top screws with a screw driver and
secure nuts in place with a nut driver.
5. Slip the baffle over the bottom screws and re-
peat the process.
6. Connect the large and small connectors of the
blue wires to the blades on the power switch.
The small one is on the back of the switch and
the large one is the angled one on the bottom.
7. Snap the filter cover and foam filter over the
front fan cover.
