49
1 - PP12512TF - COLLET CHUCK KNOB SECONDARY
2 - PP12518NF - ER-25 COLLET SET - METRIC
2 - PP12519NF - ER-25 COLLET SET - ENGLISH
3 - SA12511TA - PRIMARY COLLET KNOB ASSEMBLY
4 - PP12571SF - SWING CASTING COVER - COLLET CHUCK
5 - PP12500CF - CHUCK SWING CASTING
6 - SA12506TA - COLLET CHUCK SPINDLE ASSEMBLY
NOT SHOWN - SA12501CA - COLLET CHUCK ASSEMBLY COMPLETE

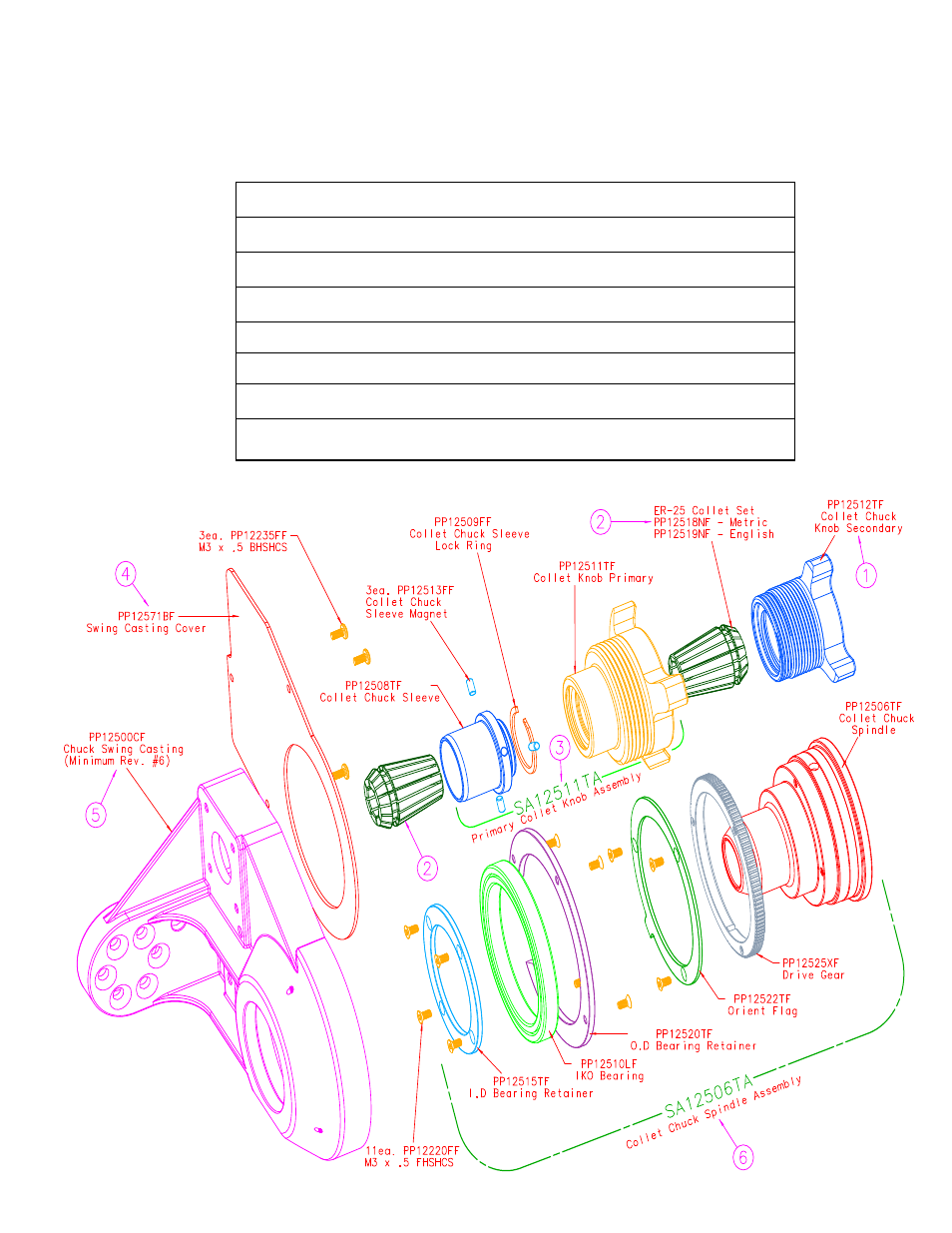

CNC-XPS-16CC - COLLET CHUCK PARTS DIAGRAM
Chuck Information
