WHY:
The Radius Split Offset feature is avail-
able and functional only after you have manually
entered the web thickness in the Web Diameter
Detection screen, located on the Main Screen Set-
up page.
• Some drill styles have more of a radius on the
split than others. When re-sharpening a drill,
you may want to mimic an existing radius split
or create even more of a radius. The Offset
keypad allows you to change the default-offset
value.
• The XPS-16 calculates 30% of the entered
web thickness as the radius split offset default.
• To create a smaller radius, enter a larger off-
set value, or a smaller value to create a larger
radius. A value entered of .001 will produce
the largest radius possible.
HOW:
Touch the Web Thickness button
located on main screen.
• The Web Detection Screen will come up.

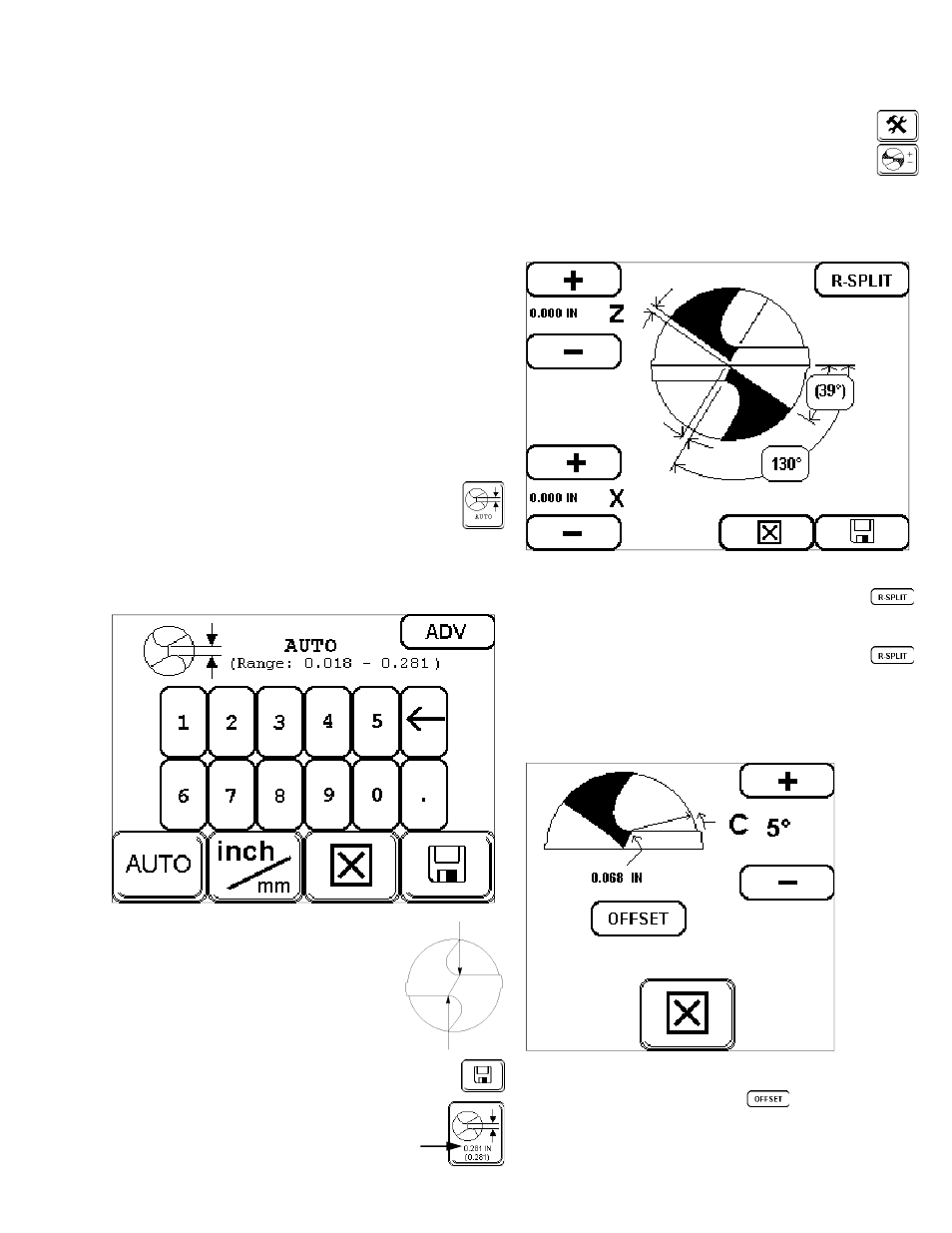

Web Detection Screen
• The web thickness must be en-
tered manually. Measure web of
drill. Measure web thickness
across two points of the chisel
line with calipers.
• Type in web thickness.
• Touch the “SAVE” button to store
and transfer the “New” information to
the Main Set-up Screen. The web thick-
ness entered will appear on the “WEB
THICKNESS” Selector button.
• On the TOOLS, OFFSETS & MAINTE-
NANCE page, touch the Split Point Off-
set button.
• The Split Point Offset screen will come
up.
Split Point Offset Screen
If a web thickness diameter has not been
entered, the R-Split button is not an option
and will not appear on the Split Point Offset
screen.
• Touch the R-Split button on the Split
Point Offset page; the Radius Offset Adjust-
ment Screen will come up.
Radius Offset Adjustment Screen
• Touch the OFFSET button; the Radius Offset
Keypad will come up.
Why & How to Offset the Radius Split
Radius Spilt Offset Screen
