40
The web thickness must be entered manually.
• Measure web of drill, and type in web thick-
ness.
• Touch the ADVANCE button on the web
detection screen.
• The ADVANCE screen will come up.

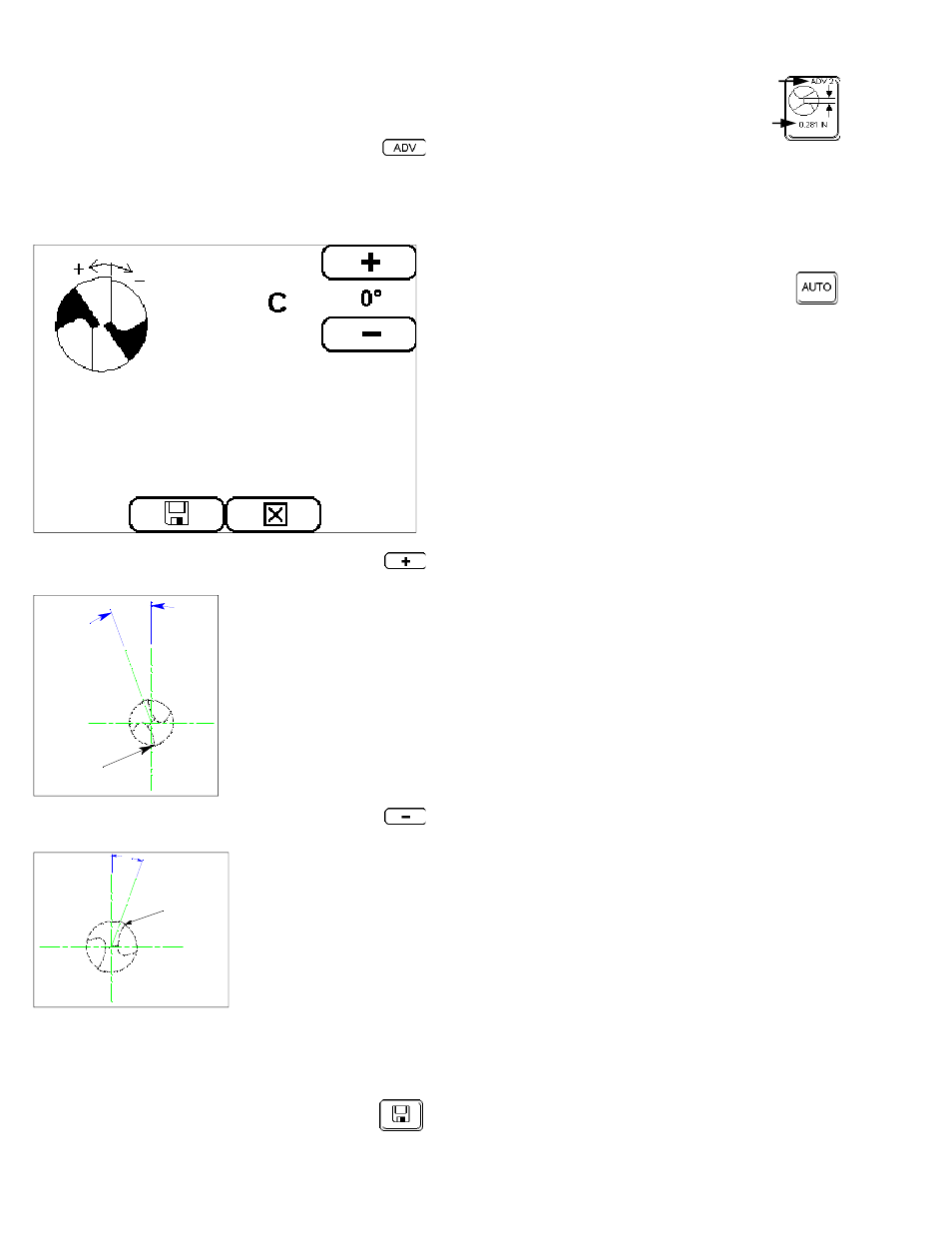

ADVANCE SCREEN
• Press the +C button to rotate cutting
edge counter clockwise,
or the -C button to move the cutting edge
clockwise.
• A value larger than 0
must be entered to en-
able the advance fea-
ture.
NOTE: Remember, as you look at the picto-
rial icon of the cutting edge, you are looking
at the cutting edge opposite from the direc-
tion it will actually rotate.
• Touch the “SAVE” button to store and
transfer the “New” information to the
Main Set-up Screen. The web thickness and
degree of advance entered will appear
on the “WEB THICKNESS” Selector but-
ton.
NOTE: After values have been manu-
ally entered into the Web and or Advance
screen, you cannot change the point angle,
point style or split style. If you do, the val-
ues in Web and Advance will be removed.
This is to prevent incorrectly sharpening a
completely different drill.
• To exit manual mode, touch the “AUTO”
button, on the number pad. The Radius
Split and Advance feature will become dis-
abled.
Cutting edge
20°
20°
Cutting
edge
Cutting Edge Advance Screen
