enFORCE DSP1500 Main Unit Hardware Manual
(Rev. 4.0) PAGE 5 - 48
Chapter 5: Control Interfaces
ON
4
2
3
1

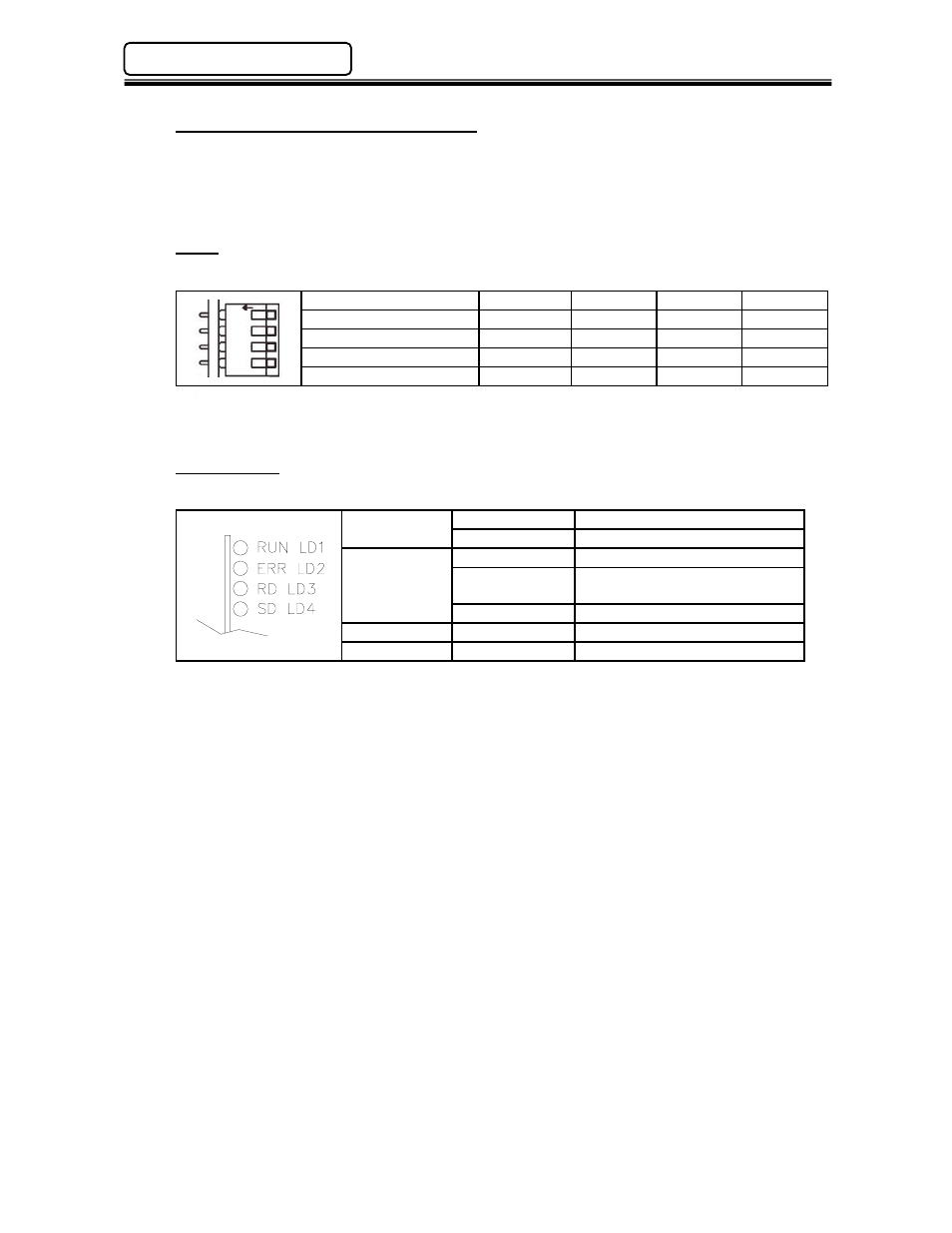

Number of Occupied Stations (SW3)
Occupied Stations setting determines the number of 32 bit station buffer memory locations that
will be allocated for this station in the Master buffer memory. This sets the number of total I/O
available for the station. Each memory bit has a designated input AND output buffer. So a
setting of (1) 32 station actually allocates 32 input & 32 output locations for a total of 64 total
points. This switch must be set before power is on, and cannot be changed during operation.
NOTE: See FEC Electrical Controls drawings for actual setting required as this may vary per
application.
Number of Stations SW-1 SW-2 SW-3 SW-4
1 (32 In/32 Out) ON ON ON OFF
2 (64 In/64 Out) ON OFF ON OFF
3 (96 In/96 Out) OFF ON ON OFF
4 (128 In/128 Out) OFF OFF ON OFF
Status LEDs
RUN OFF Watchdog Timer error
ON Module is Normal - Running
ERR OFF Normal
ON - Steady Communication error at all
Stations
ON - Flashing Communication error at Station
SD Send Data Module Sending Data
RD Read Data Module Reading Data
