Chapter 3: System Description
3.1 System Block Diagram

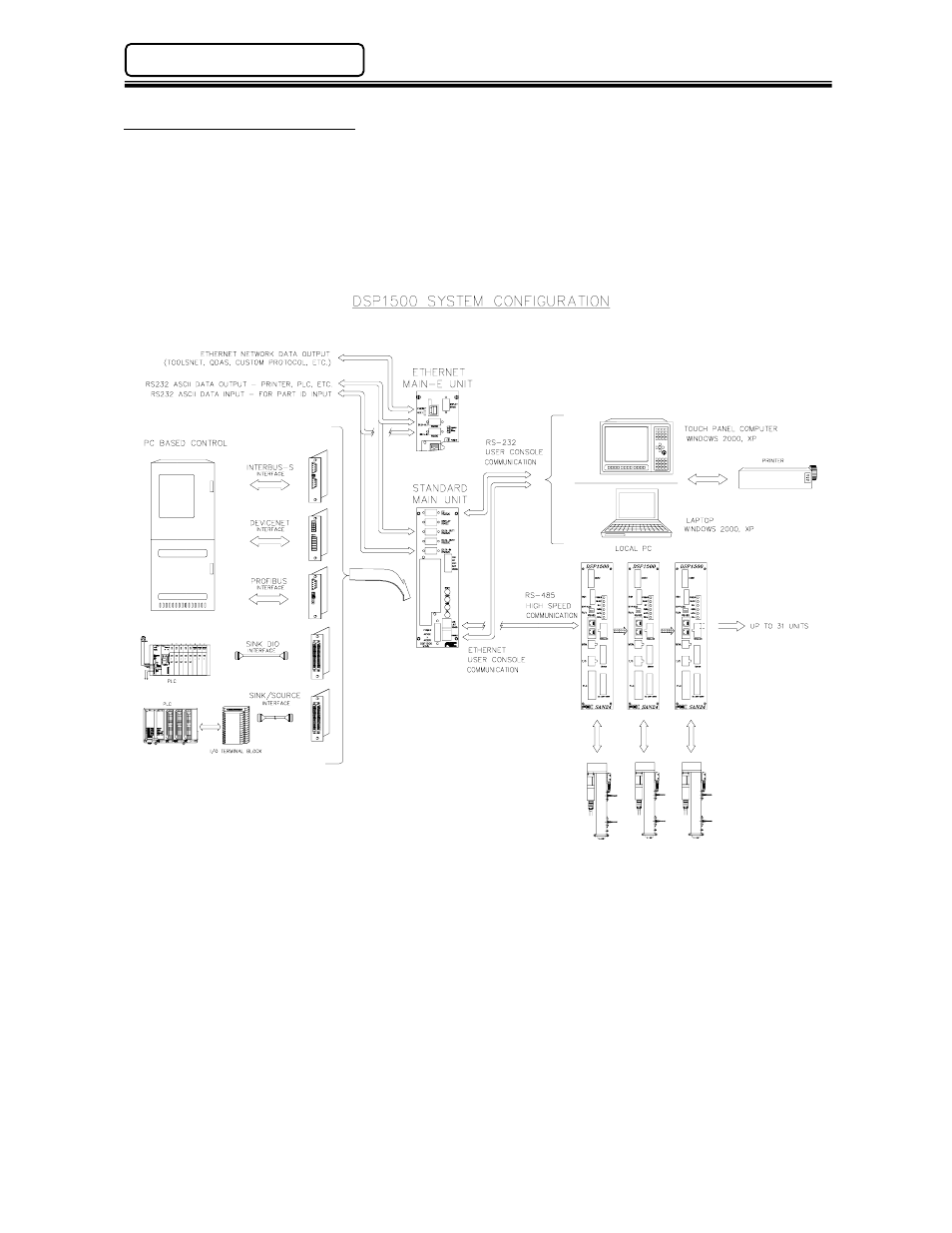

The diagram below shows how the DSP1500 Main Unit can be connected to a single unit or combined
in a multiple press configuration. The use of a Main Unit provides one set of PLC I/O for controlling
multiple pressing operations. Along with discrete 24VDC (sinking or sourcing) I/O, various fieldbus
interfaces are also available for direct connection to networks such as Profibus, AB remote I/O, CCLink,
DeviceNet, etc.
The DSP1500 Main Unit also provides an interface for connection to the User Console PC, serial
printers, barcode readers, display units, etc.
