enFORCE DSP1500 Main Unit Hardware Manual
(Rev. 4.0) PAGE 5 - 78
Chapter 5: Control Interfaces

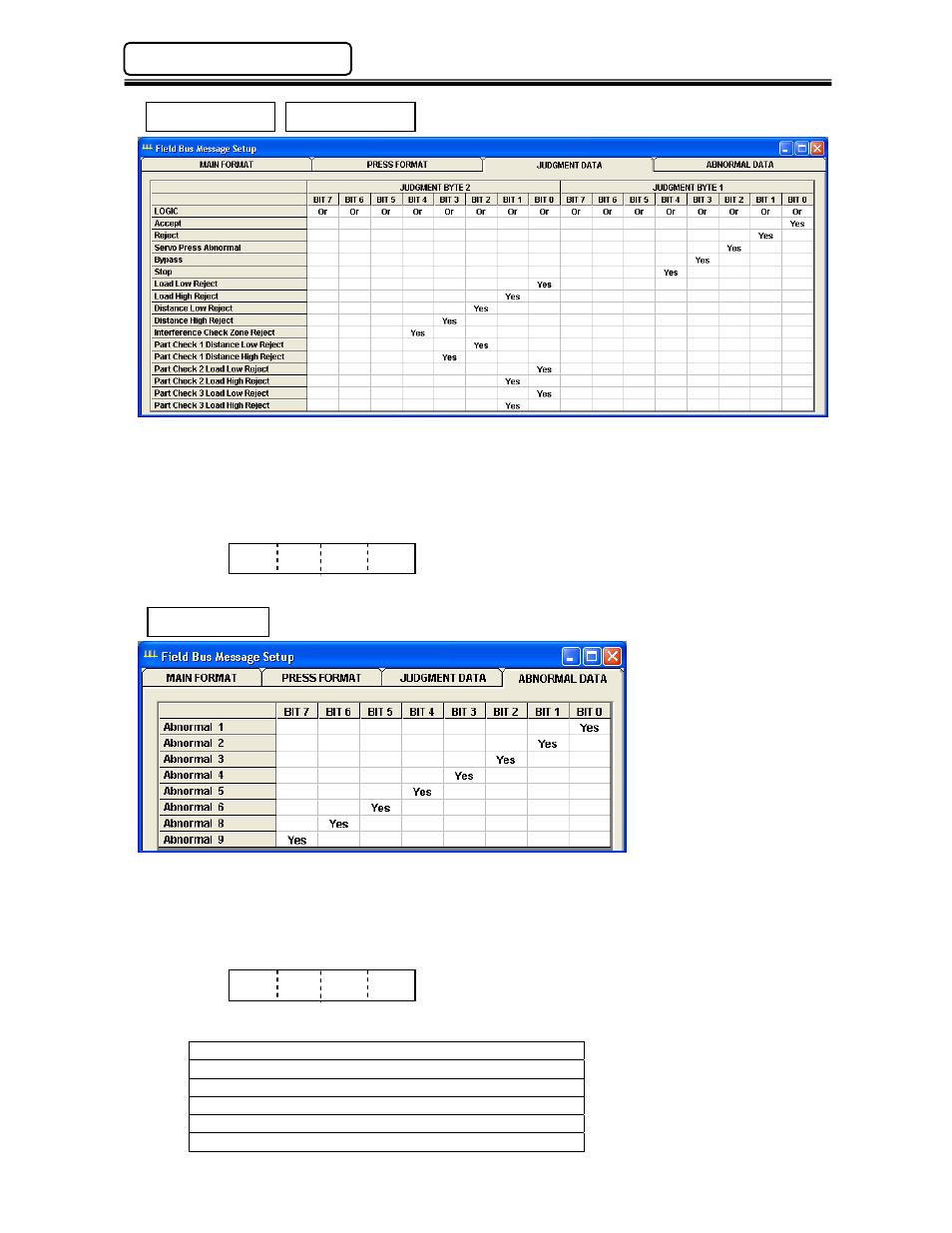

Judgment of the Press results are set according to bit allocation. (See Example below)
[ REJECT ] [ LOAD LOW REJECT ]
Judgment Byte 1 = 02, Judgment Byte 2 = 01, Abnormal Data = 00
= Judgment Output
Abnormal number is set according to bit allocation. (See Example below)
[ ABNORMAL 3 ]
Judgment Byte 1 = 04, Judgment Byte 2 = 00, Abnormal Data = 04
= Judgment Output
When the system has more than 1 press, the data will be mapped as shown below.
Data from MAIN controller
Data from Press 1
Data from Press 2
Data from Press 3
Data from Press 4
Data from Press 5….up to 31 presses
Judgment Byte 1 Judgment Byte 2
Abnormal
02 01 00 00
04 00 04 00
