enFORCE DSP1500 Main Unit Hardware Manual
(Rev. 4.0) PAGE 4 - 10
Chapter 4: Installation & Wiring
4.6.4 DATA-OUT 2 Port
“DATA-OUT 2” is an output port for ASCII fastening data communication to a Host Computer. This
port is not available on Ethernet Version units.

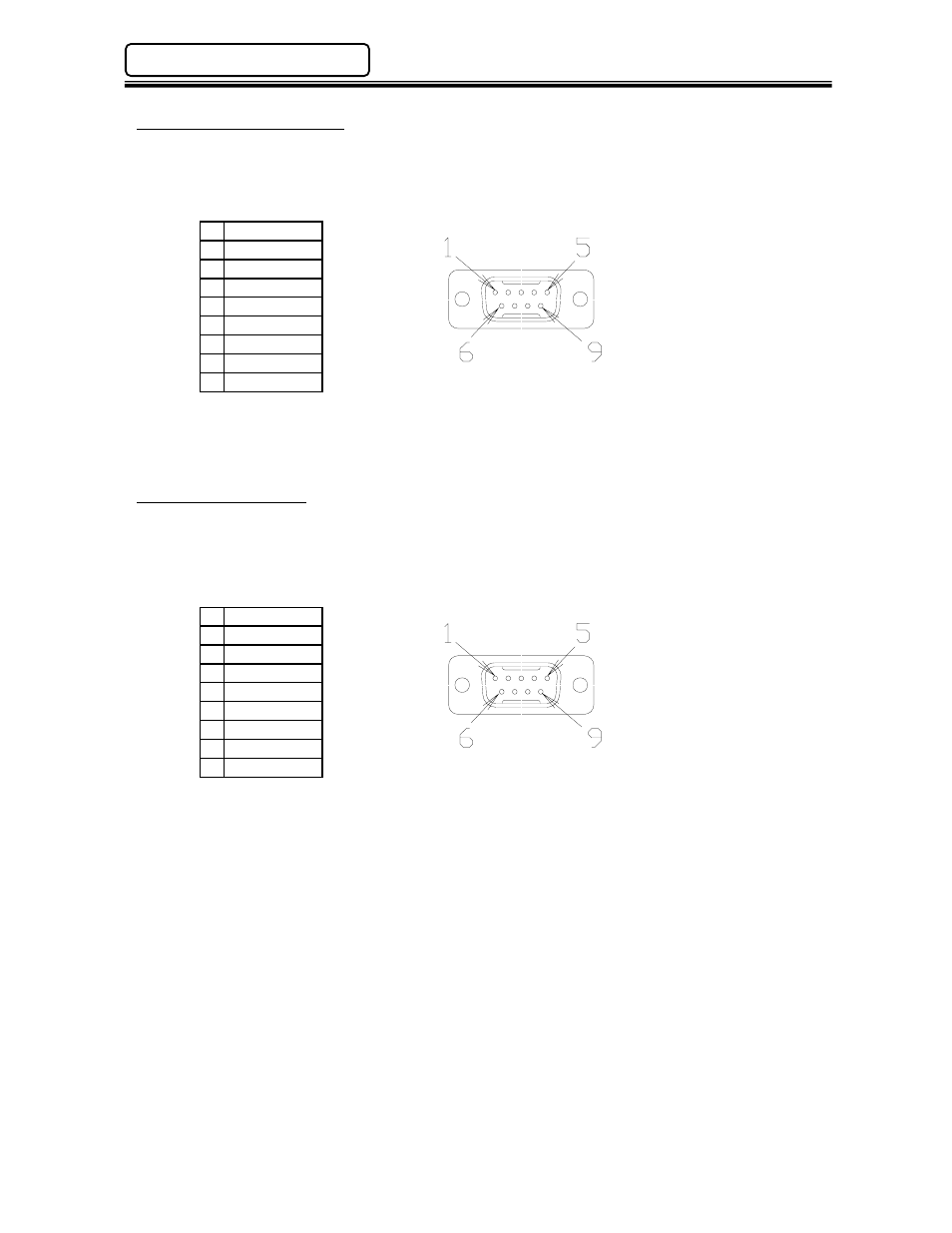

RS-232 Pin Layout
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 Not
Used
4.6.5 DATA-IN Port
The “DATA-IN” port is for inputting ASCII data to the press system for marriage to the pressing
data. It is typically used for attaching part serial number(s) to the pressing data for data storage
birth history.
RS-232 Pin Layout
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 Not Used
7 RTS
8 CTS
9 Not
Used
* When using the DATA-IN port, PIN 1 (DCD) must be enabled for data input (Jumper pins 1 & 4).
